2010 Kawasaki Versys® Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

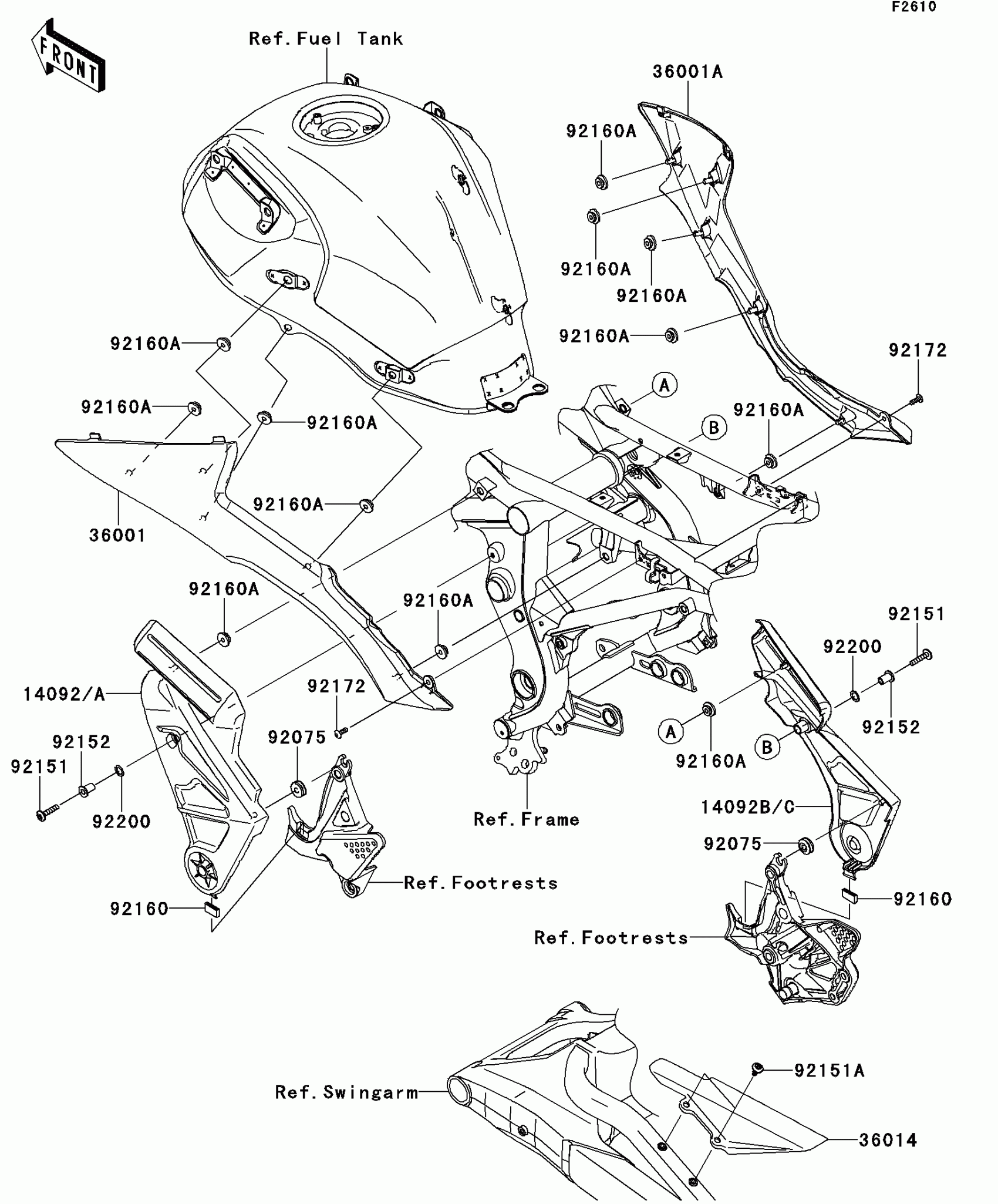

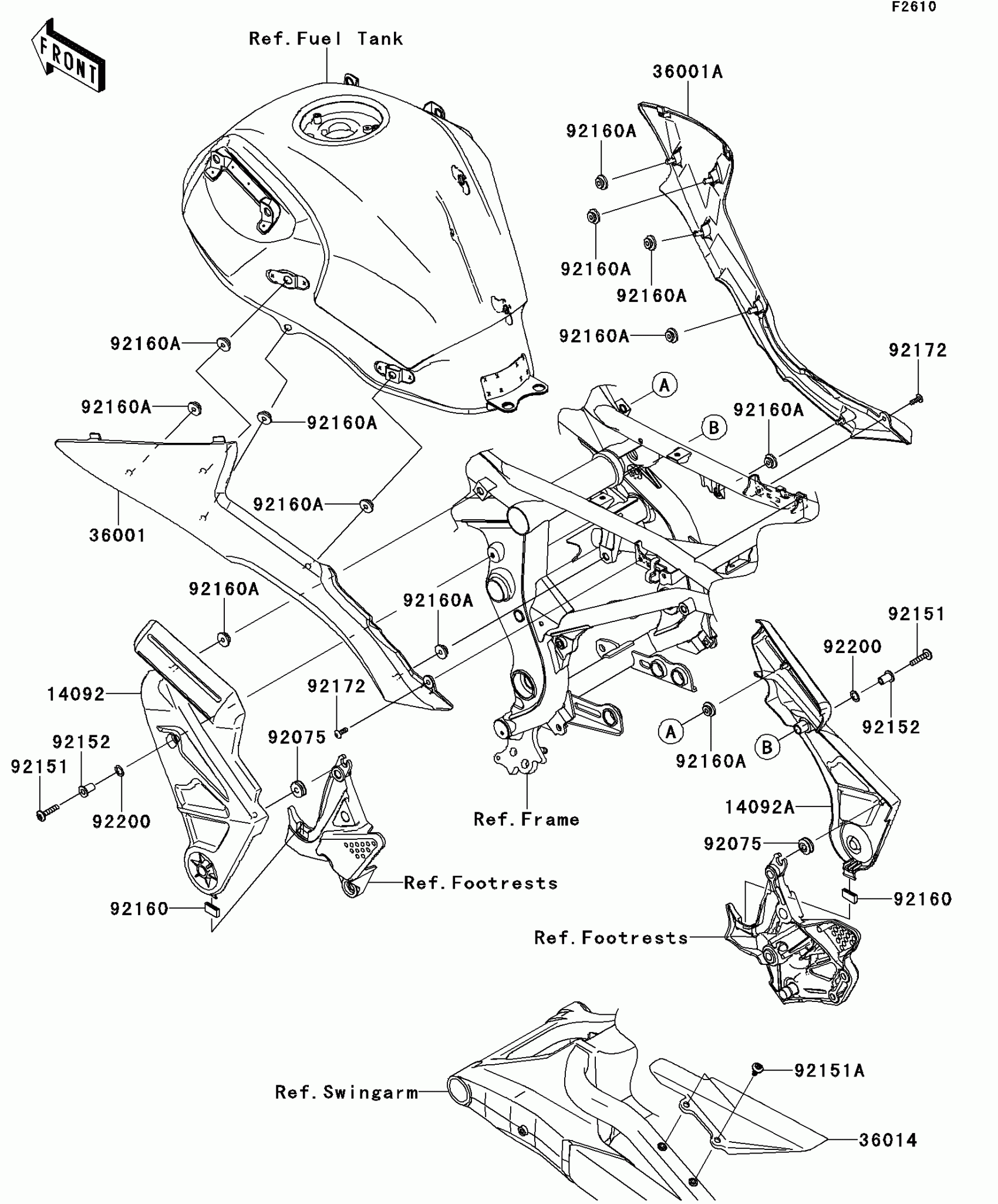

2010 Kawasaki Versys® Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER,PIVOT,LH,P.SILVER

14092-0158-458

1

$68.78

In stock

14092A

COVER,PIVOT,RH,P.SILVER

14092-0159-458

1

$73.66

In stock

36001

COVER-SIDE,LH

36001-0196

1

$46.89

In stock

36001A

COVER-SIDE,RH

36001-0197

1

$46.89

In stock

36014

CASE-CHAIN,RR

36014-0018

1

$30.39

In stock

92075

DAMPER

92075-1067

1

$3.72

In stock

92151

BOLT,SOCKET,6X30

92151-1605

1

$1.95

In stock

92151A

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92152

COLLAR

92152-0627

1

$3.86

In stock

92160

DAMPER

92160-1190

1

$3.25

In stock

92160A

DAMPER

92160-1613

1

$2.97

In stock

92172

SCREW,5X16

92172-0322

1

$1.81

In stock

92200

WASHER,10.4X15.9X0.5

92200-0157

1
Out of stock
