Description

Price

41068

AXLE,RR

41068-0054

$48.01

41073

WHEEL-ASSY,RR,BLACK

41073-0051-R2

$921.64

42033

COUPLING-ASSY,RR HUB

42033-0028

$242.94

42036

SLEEVE,RR HUB,L=23

42036-1251

$21.23

42041

SPROCKET-HUB,46T

42041-0089

$72.35

42045

NUT,CASTLE,18MM

42045-018

$7.01

92004

STUD,10X19

92004-0028

$7.51

92033

RING-SNAP,52MM

92033-1043

$6.15

92049

SEAL-OIL,BJN28475

92049-1056

$10.76

92049A

SEAL-OIL

92049-1287

$9.95

92057

CHAIN,DRIVE,EK520MVXL2X114L

92057-0184

$247.72

92058

JOINT-CHAIN,DRIVE

92058-0021

$13.00

92152

COLLAR,RR HUB,L=133

92152-0301

$23.37

92152A

COLLAR,RR AXLE,RH,L=17

92152-0302

$13.75

92152B

COLLAR,RR AXLE,LH,L=18

92152-0822

$15.36

92161

DAMPER,SHOCK,RR HUB

92161-0303

$12.94

92200

WASHER,19X36X3.2

92200-0296

$1.85

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

550

PIN-COTTER,4.0X35

550AA4035

$1.57

601

BEARING-BALL,6204UUC3

601B6204UU

$26.51

601A

BEARING-BALL

601B6205UU

$26.20

671

O RING,60MM

671B2560

$5.13

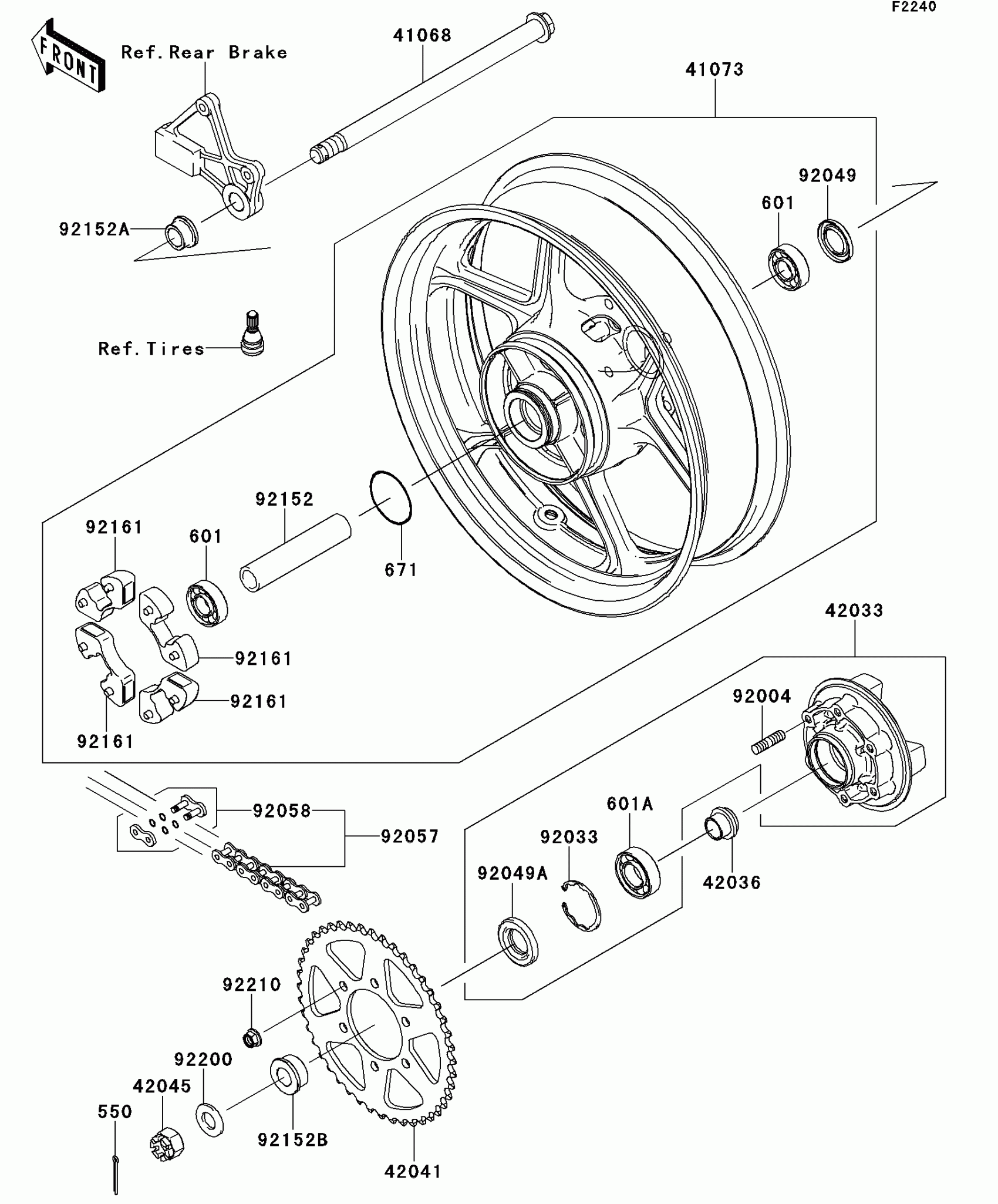

Kawasaki Versys® Rear Wheel/Chain Diagram
