2009 Kawasaki Versys® (European) Throttle Diagram

← All diagrams

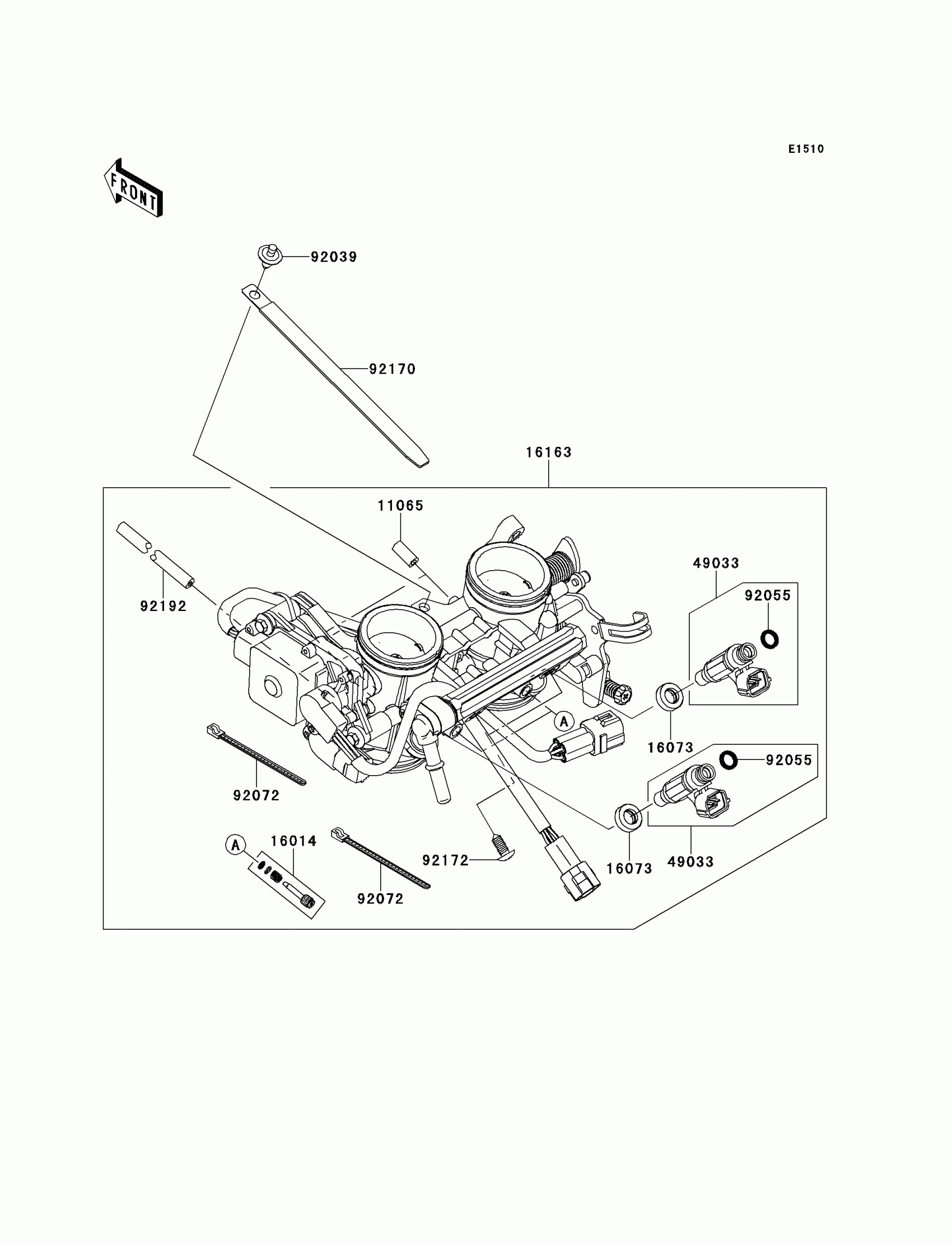

Find the part on the Throttle diagram for your 2009 Kawasaki Versys® (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Versys® (European) Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0018

1

$4.84

In stock

16014

SCREW-PILOT AIR

16014-0002

1

$23.08

In stock

16073

INSULATOR

16073-3707

1

$4.90

In stock

16163

THROTTLE-ASSY,TTK38

16163-0099

1
Out of stock

49033

NOZZLE-INJECTION

49033-0011

1

$83.76

In stock

92039

RIVET

92039-0068

1

$2.42

In stock

92055

1

$1.64

In stock

92072

BAND,SUB-HARNESS

92072-0012

1

$3.97

In stock

92170

CLAMP,L=150

92170-1114

1

$7.36

In stock

92172

1

$2.29

In stock

92192

TUBE,RUBBER,3X7X265

92192-1375

1
Out of stock
