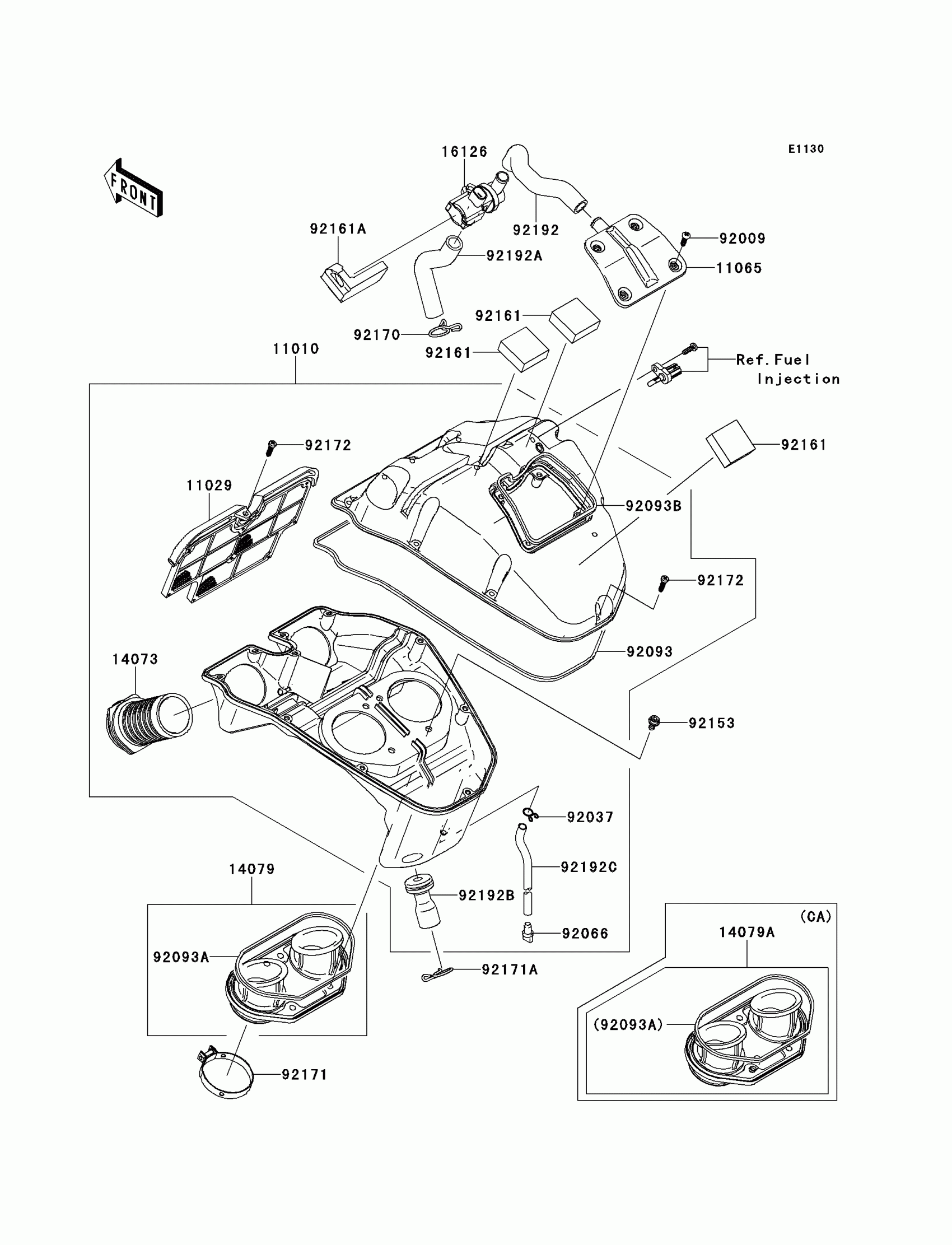

Kawasaki VERSYS® (European) Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0108

$328.54

11029

ELEMENT-ASSY-AIR FILTER

11029-0008

$47.75

11065

CAP,UPPER CASE

11065-0120

$24.81

14073

DUCT

14073-0110

Unavailable

16126

VALVE,AIR SWITING

16126-0019

$90.36

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92037

CLAMP,TUBE

92037-147

$5.61

92066

PLUG,DRAIN

92066-1211

$6.48

92093

SEAL,L=1080

92093-0045

$14.93

92093A

SEAL

92093-0046

Unavailable

92093B

SEAL,L=368

92093-0048

$7.90

92153

BOLT,SOCKET,6X12

92153-0759

$1.55

92161

DAMPER,T=15

92161-0302

$3.66

92161A

DAMPER

92161-0309

$13.81

92170

CLAMP

92170-1017

$3.57

92171

CLAMP

92171-0314

$3.12

92171A

CLAMP

92171-0435

$2.95

92172

SCREW,TAPPING,5X20

92172-0009

$1.98

92192

TUBE,ASV-A/C

92192-0231

$11.85

92192A

TUBE,HEAD-ASV

92192-0232

$8.76

92192B

TUBE,BREATHER

92192-0264

$13.42

92192C

TUBE,DRAIN,6X9X280

92192-0325

$11.32

14079

HOLDER-ASSY

14079-0017

$65.02

14079A

HOLDER-ASSY

14079-0021

$60.11
