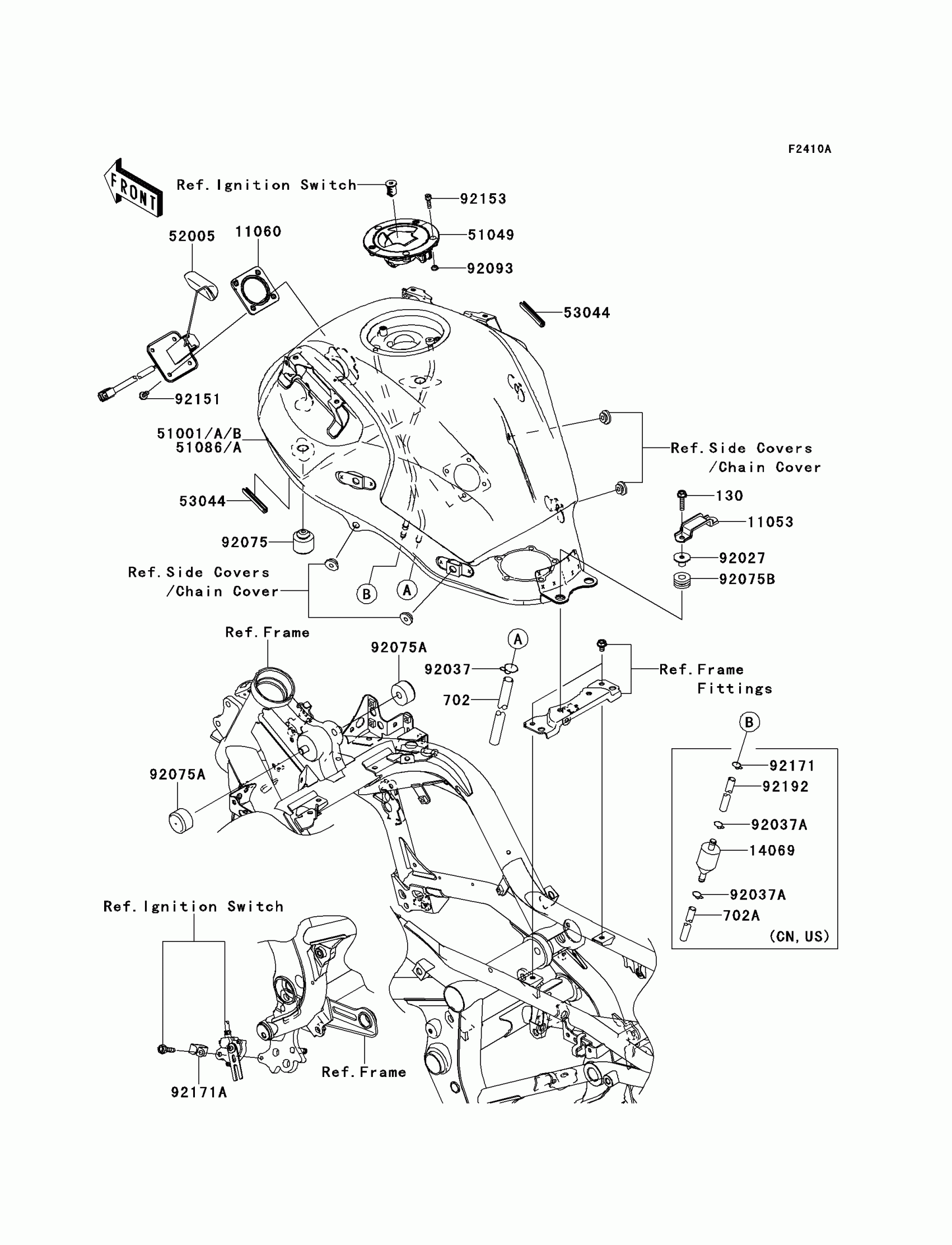

Kawasaki VERSYS® (European) Fuel Tank(A9F) Diagram

#

Description
Price

130

BOLT-FLANGED,6X25

130BB0625

$1.84

702

TUBE-RUBBER,6X9X750

702A06750

$20.58

11053

BRACKET,SEAT

11053-1812

$4.78

11060

GASKET,FUEL GAUGE

11060-1952

$17.15

51049

CAP-TANK,FUEL

51049-0012

Unavailable

52005

GAUGE,FUEL

52005-0023

$204.74

53044

TRIM,L=60

53044-1249

$5.71

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-010

$2.99

92075

DAMPER

92075-1002

$5.42

92075A

DAMPER,FUEL TANK

92075-125

$4.67

92075B

DAMPER,10X24X12

92075-1690

$3.81

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92151

BOLT,5X12

92151-1599

$1.23

92153

BOLT,SOCKET,5X16

92153-1616

$1.04

92171A

CLAMP

92171-0911

$7.56

702A

TUBE-RUBBER

702A07100

$10.11

14069

BREATHER,FUEL TANK

14069-1004

$7.76

51001

TANK-COMP-FUEL,C.L.GREEN

51001-0276-17P

$1,139.87

51001A

TANK-COMP-FUEL,M.M.GRAY

51001-0276-25X

$948.96

51001B

TANK-COMP-FUEL,C.P.BLUE

51001-0276-723

$948.96

51086

TANK-COMP-FUEL,C.L.GREEN

51086-5026-17P

$948.96

51086A

TANK-COMP-FUEL,C.P.BLUE

51086-5026-723

$948.96

92037A

CLAMP,TUBE

92037-147

$5.61

92171

CLAMP

92171-0573

$1.20

92192

TUBE,BREATHER

92192-0828

$8.54
