2009 Kawasaki Versys® (European) Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2009 Kawasaki Versys® (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

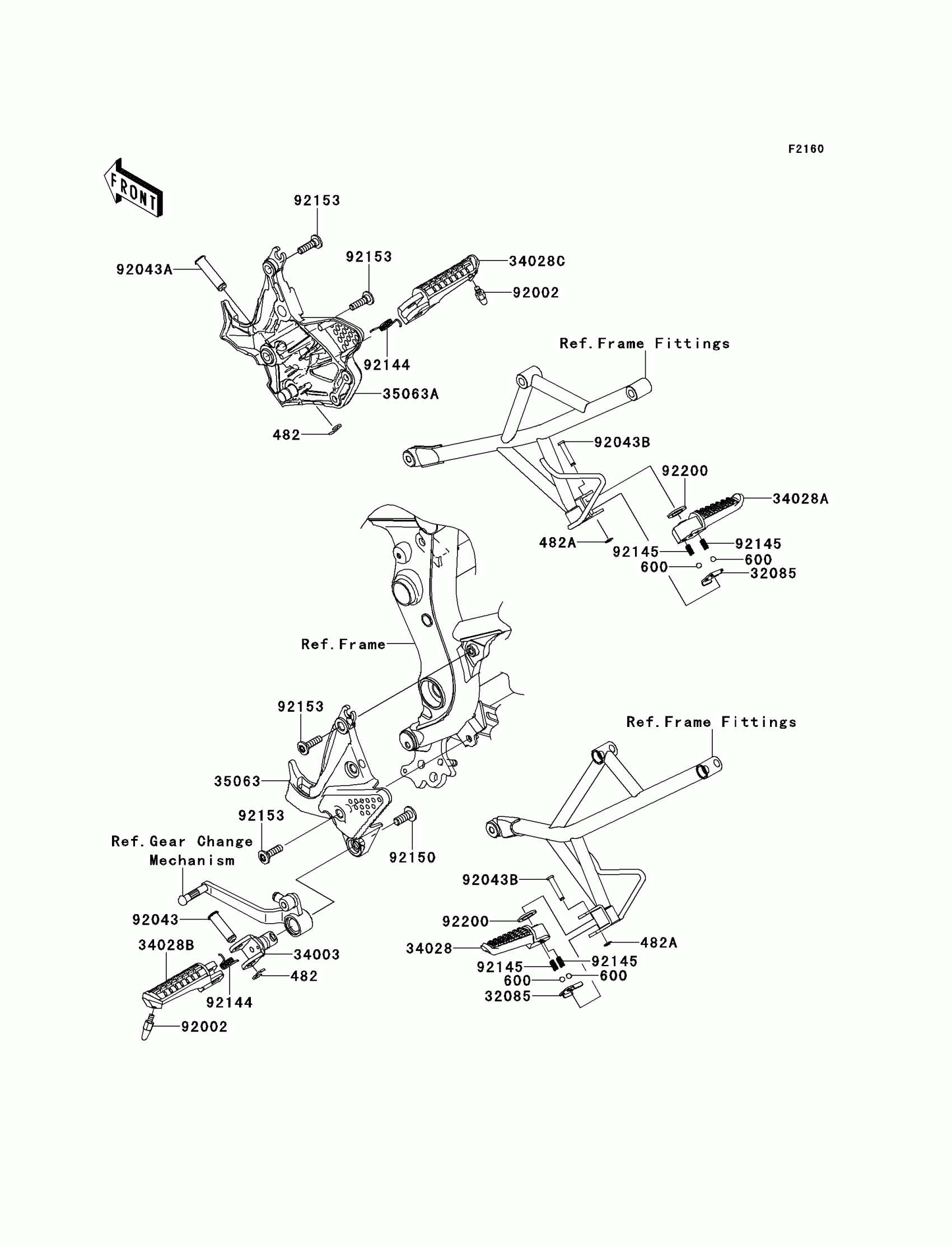

2009 Kawasaki Versys® (European) Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

482

CIRCLIP-TYPE-E,10MM

482EA0100

1
Out of stock

482A

CIRCLIP-TYPE-E

482EA5000

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock

32085

STOPPER,REAR STEP

32085-0047

1
Out of stock

34003

HOLDER-STEP,FR,LH

34003-1474

1
Out of stock

34028

STEP,RR,LH

34028-0004

1
Out of stock

34028A

STEP,RR,RH

34028-0005

1
Out of stock

34028B

STEP,FR,LH

34028-1334

1
Out of stock

34028C

STEP,FR,RH

34028-1335

1
Out of stock

35063

STAY,STEP,FR,LH,P.SILVER

35063-0310-458

1
Out of stock

35063A

STAY,STEP,FR,RH,P.SILVER

35063-0401-458

1
Out of stock

92002

BOLT,BANK SENSOR

92002-1742

1
Out of stock

92043

PIN,12X37

92043-0150

1
Out of stock

92043A

PIN,12X42.5

92043-1145

1
Out of stock

92043B

PIN,6X34

92043-1271

1
Out of stock

92144

SPRING,STEP RETURN

92144-1567

1
Out of stock

92145

SPRING

92145-1319

1
Out of stock

92150

BOLT,SOCKET,10X25

92150-1268

1
Out of stock

92153

BOLT,SOCKET,8X30

92153-1630

1
Out of stock

92200

WASHER,16X26X2.3

92200-0043

1
Out of stock
