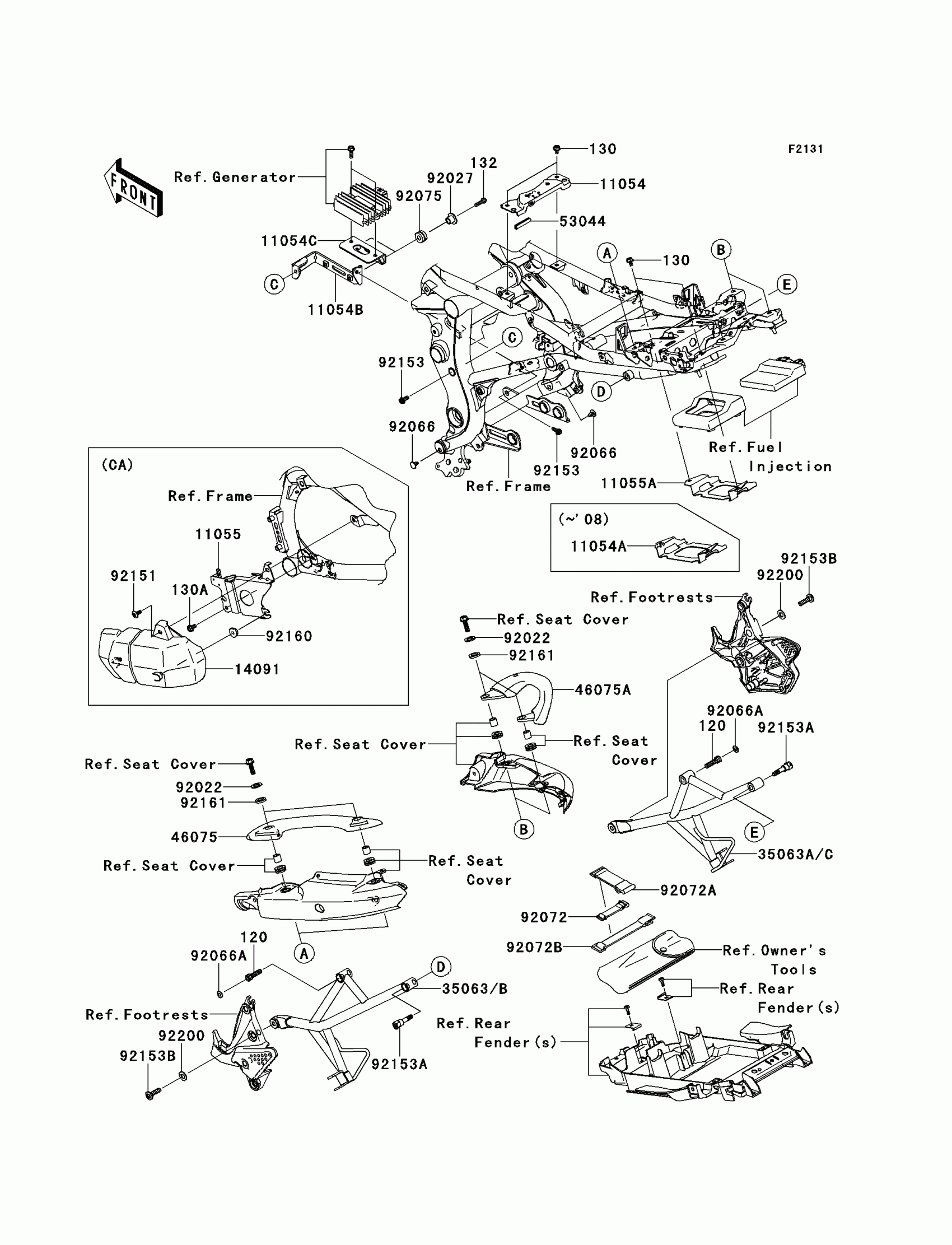

Kawasaki VERSYS® (European) Frame Fittings Diagram

#

Description
Price

120

BOLT-SOCKET,8X30

120CB0830

$3.57

130

BOLT-FLANGED,6X10

130BB0610

$1.77

132

BOLT-FLANGED-SMALL,6X22

132BB0622

$1.66

11054

BRACKET,FUEL TANK

11054-0248

$21.58

11054B

BRACKET,REGULATOR

11054-1283

$32.41

11054C

BRACKET,REGULATOR

11054-1284

$15.07

11055A

BRACKET,ECU

11055-0989

$16.34

35063B

STAY,STEP,RR,LH,BLACK

35063-0478-18R

Unavailable

35063C

STAY,STEP,RR,RH,BLACK

35063-0479-18R

Unavailable

46075

GRIP,LH

46075-0057

Unavailable

46075A

GRIP,RH

46075-0058

$74.85

53044

TRIM,L=40

53044-1174

$3.85

92022

WASHER,PLAIN

92022-3026

$2.74

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.67

92066

PLUG

92066-1103

$2.97

92066A

PLUG

92066-1216

$3.54

92072

BAND

92072-1085

$13.69

92072A

BAND,TOOL

92072-1176

$11.84

92072B

BAND,L=150

92072-1203

$10.80

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92153

BOLT,SOCKET,6X16

92153-1517

$2.15

92153A

BOLT

92153-1532

$33.65

92153B

BOLT,SOCKET,8X30

92153-1630

$1.85

92161

DAMPER

92161-0460

$3.31

92200

WASHER,10.2X20X1.6

92200-0328

$3.51

130A

BOLT-FLANGED,6X12

130BB0612

$1.68

11055

BRACKET,CANISTER

11055-0586

$48.58

14091

COVER,CANISTER

14091-1586

$38.90

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92160

DAMPER

92160-1613

$2.84
