2009 Kawasaki Versys® (European) Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2009 Kawasaki Versys® (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

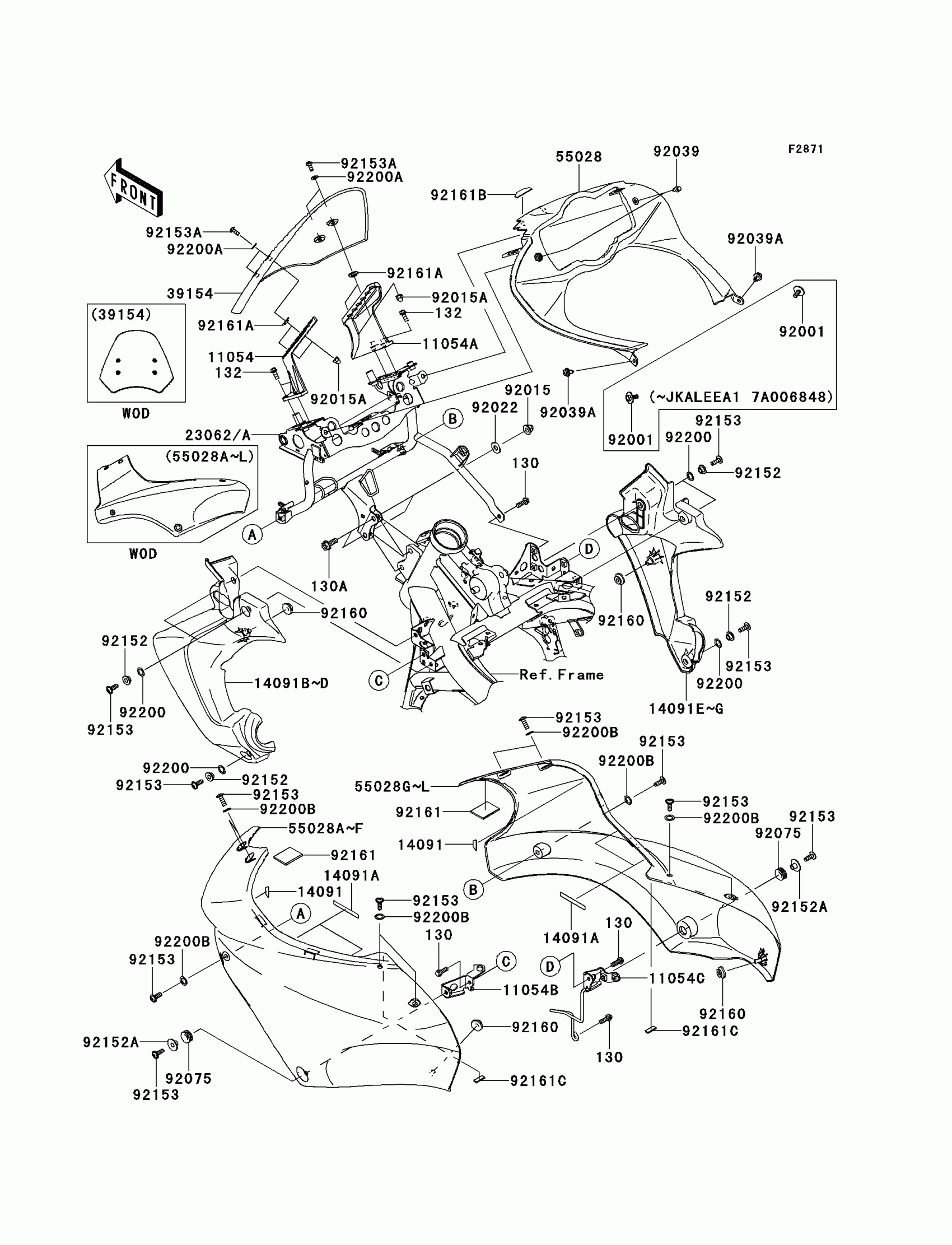

2009 Kawasaki Versys® (European) Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,WINDSHIELD,LH

11054-0380

1
Out of stock

11054A

BRACKET,WINDSHIELD,RH

11054-0381

1
Out of stock

11054B

BRACKET,UPP COWLING,LH

11054-0460

1
Out of stock

11054C

BRACKET,UPP COWLING,RH

11054-1469

1
Out of stock

14091

COVER

14091-0606

1
Out of stock

14091A

COVER

14091-0607

1
Out of stock

14091C

COVER,RADIATOR,LH,BLACK

14091-0750-18T

1
Out of stock

14091F

COVER,RADIATOR,RH,BLACK

14091-0751-18T

1
Out of stock

23062A

BRACKET-COMP,UPP COWLING

23062-0063

1
Out of stock

39154

WINDSHIELD

39154-0022

1
Out of stock

55028

COWLING,INNER

55028-0109

1
Out of stock

55028C

COWLING,UPP,LH,C.L.GREEN

55028-0159-17P

1
Out of stock

55028I

COWLING,UPP,RH,C.L.GREEN

55028-0160-17P

1
Out of stock

92015

NUT,CAP,8MM,BLACK

92015-1174

1
Out of stock

92015A

NUT,LOCK,FLANGE CAP,5MM

92015-1263

1
Out of stock

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

1
Out of stock

130

BOLT-FLANGED,6X14

130BB0614

1
Out of stock

130A

BOLT-FLANGED,8X20

130BB0820

1
Out of stock

132

BOLT-FLANGED-SMALL,6X14

132BA0614

1
Out of stock

92039

RIVET

92039-0023

1
Out of stock

92039A

RIVET

92039-0062

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock

92152

COLLAR

92152-0422

1
Out of stock

92152A

COLLAR

92152-0545

1
Out of stock

92153

BOLT,6X18

92153-0478

1
Out of stock

92153A

BOLT,SOCKET,5X16

92153-1244

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER

92161-0443

1
Out of stock

92161A

DAMPER

92161-0478

1
Out of stock

92161B

DAMPER

92161-0519

1
Out of stock

92161C

DAMPER

92161-1177

1
Out of stock

92200

WASHER,10.4X15.9X0.5

92200-0157

1
Out of stock

92200A

WASHER,NYLON,5.2X12X1

92200-1011

1
Out of stock

92200B

WASHER,6.5X14X1

92200-1388

1
Out of stock

14091D

COVER,RADIATOR,LH,P.SILVER

14091-0750-458

1
Out of stock

14091G

COVER,RADIATOR,RH,P.SILVER

14091-0751-458

1
Out of stock

55028E

COWLING,UPP,LH,M.M.GRAY

55028-0159-25X

1
Out of stock

55028F

COWLING,UPP,LH,C.P.BLUE

55028-0159-723

1
Out of stock

55028K

COWLING,UPP,RH,M.M.GRAY

55028-0160-25X

1
Out of stock

55028L

COWLING,UPP,RH,C.P.BLUE

55028-0160-723

1
Out of stock
