2024 Kawasaki Versys 650 Radiator Diagram

← All diagrams

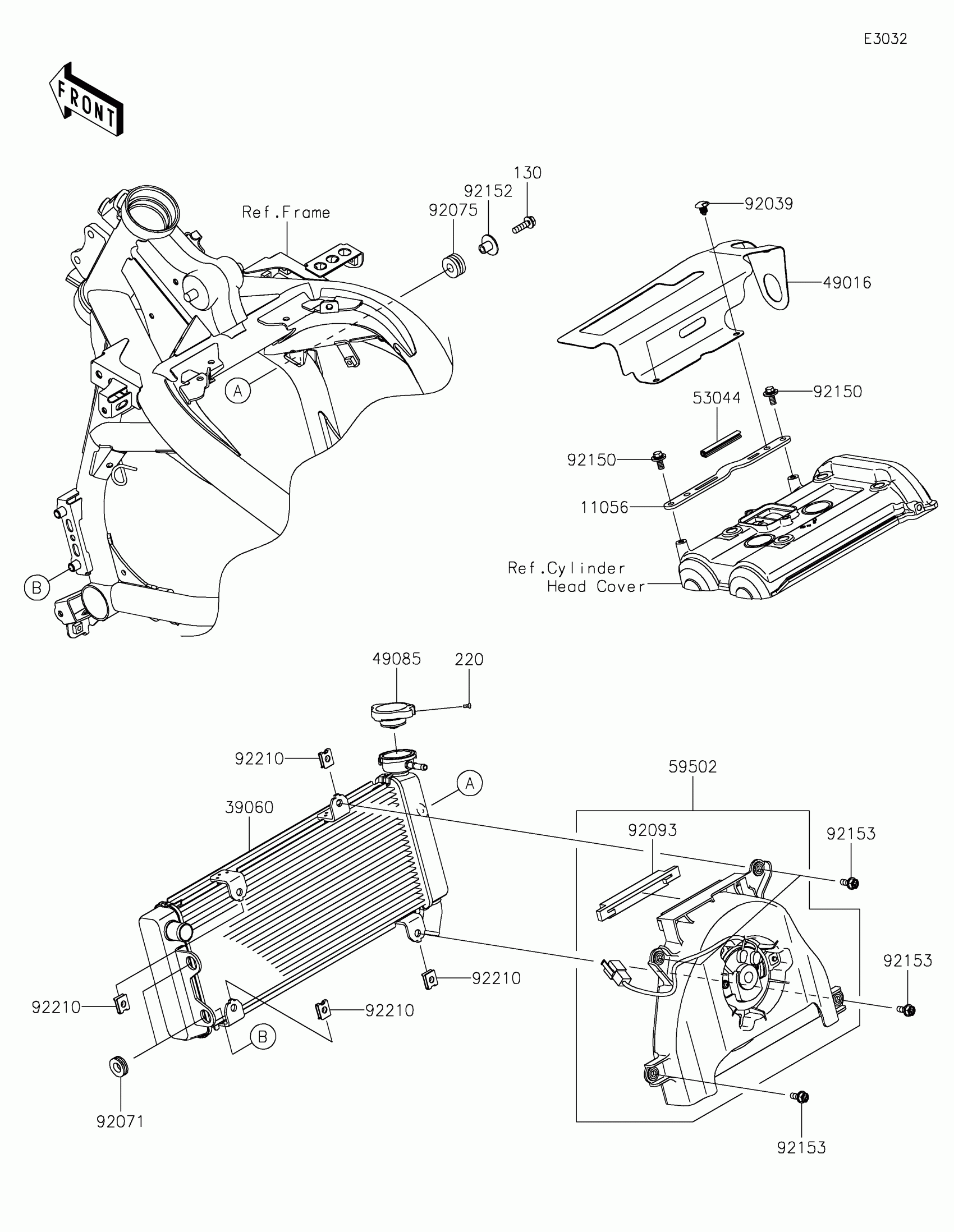

Find the part on the Radiator diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Versys 650 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-7316

1

$5.44

In stock

39060

RADIATOR

39060-0750

1

$838.64

In stock

49016

COVER-SEAL

49016-0632

1

$25.17

In stock

49085

CAP-ASSY-PRESSURE

49085-0016

1

$51.50

In stock

53044

TRIM

53044-0565

1

$2.68

In stock

59502

FAN-ASSY

59502-0603

1

$360.00

In stock

92039

RIVET

92039-0722

1

$1.44

In stock

92071

GROMMET

92071-1115

1

$4.34

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92093

SEAL

92093-0636

1

$7.51

In stock

92150

BOLT,FLANGED,6X14

92150-1689

1

$3.14

In stock

92152

COLLAR,6.5X10X13.1

92152-0910

1

$1.44

In stock

92153

BOLT

92153-0531

1
Out of stock

92210

NUT

92210-1323

1
Out of stock

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

220

SCREW-PAN-CROS,3X6

220AB0306

1

$2.29

In stock
