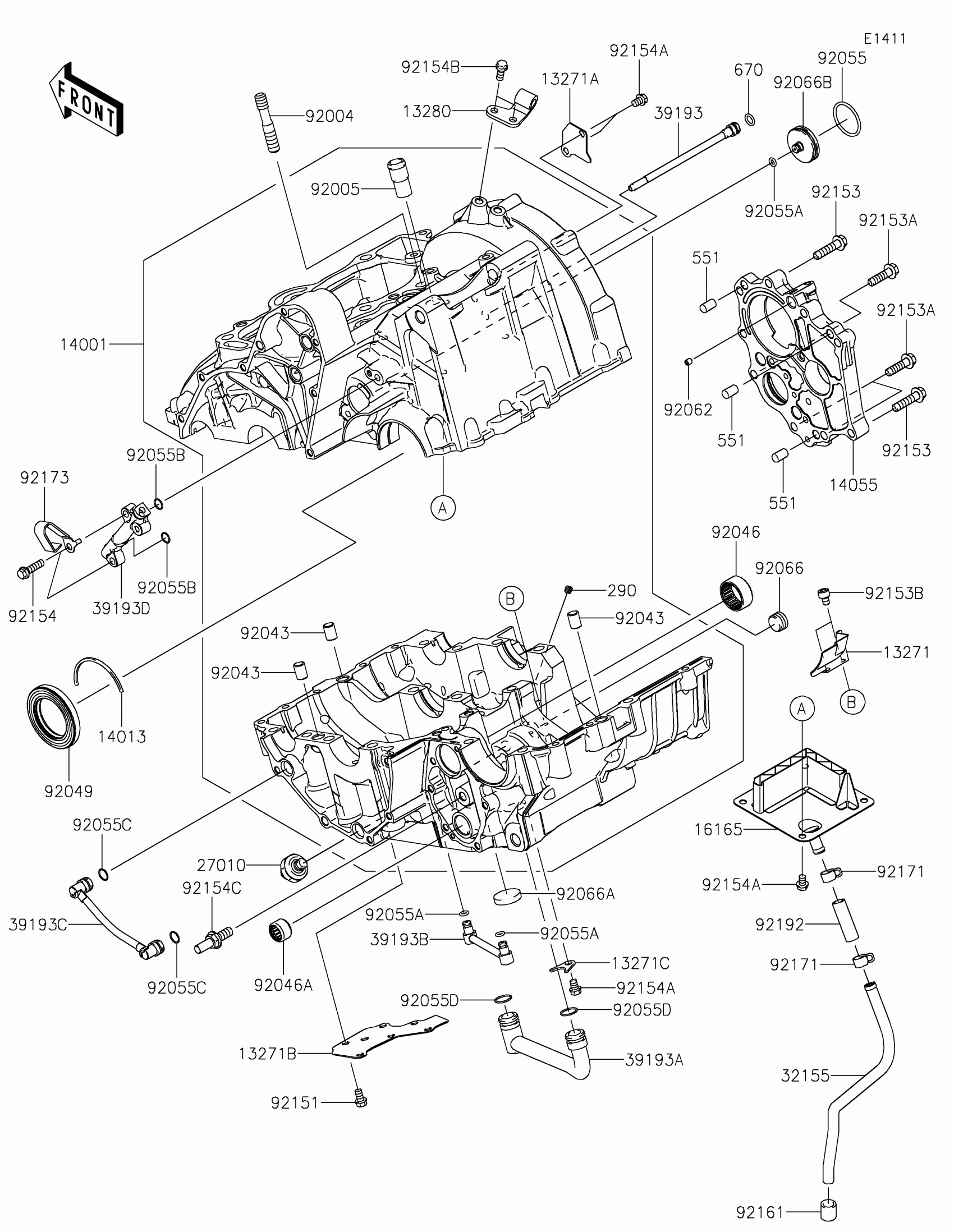

2024 Kawasaki Versys 650 Crankcase Diagram
Find the part on the Crankcase diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
13271
PLATE,OIL SHIELDING
13271-0575
13271A
PLATE
13271-0577
13271B
PLATE
13271-0584
13271C
PLATE,OIL PIPE
13271-1187
14013
RING-POSITION,T=1.98
14013-1004
92004
STUD,10X34.5
92004-0024
92005
FITTING,BREATHER
92005-0713
92046A
BEARING-NEEDLE,HK1312
92046-1148
92049
SEAL-OIL,HTC40628
92049-1501
92055
RING-O,29.7X2.4
92055-0006
92055A
RING-O,4.8MM
92055-0845
92055B
RING-O,8.8MM
92055-0846
92055C
RING-O,9.8MM
92055-0847
92055D
RING-O,13.8MM
92055-0848
92153
BOLT,FLANGED,6X30
92153-0962
92153A
BOLT,FLANGED,7X26
92153-0963
92153B
BOLT,SOCKET,6X8
92153-1414
92192
TUBE,9X12X38
92192-0225
