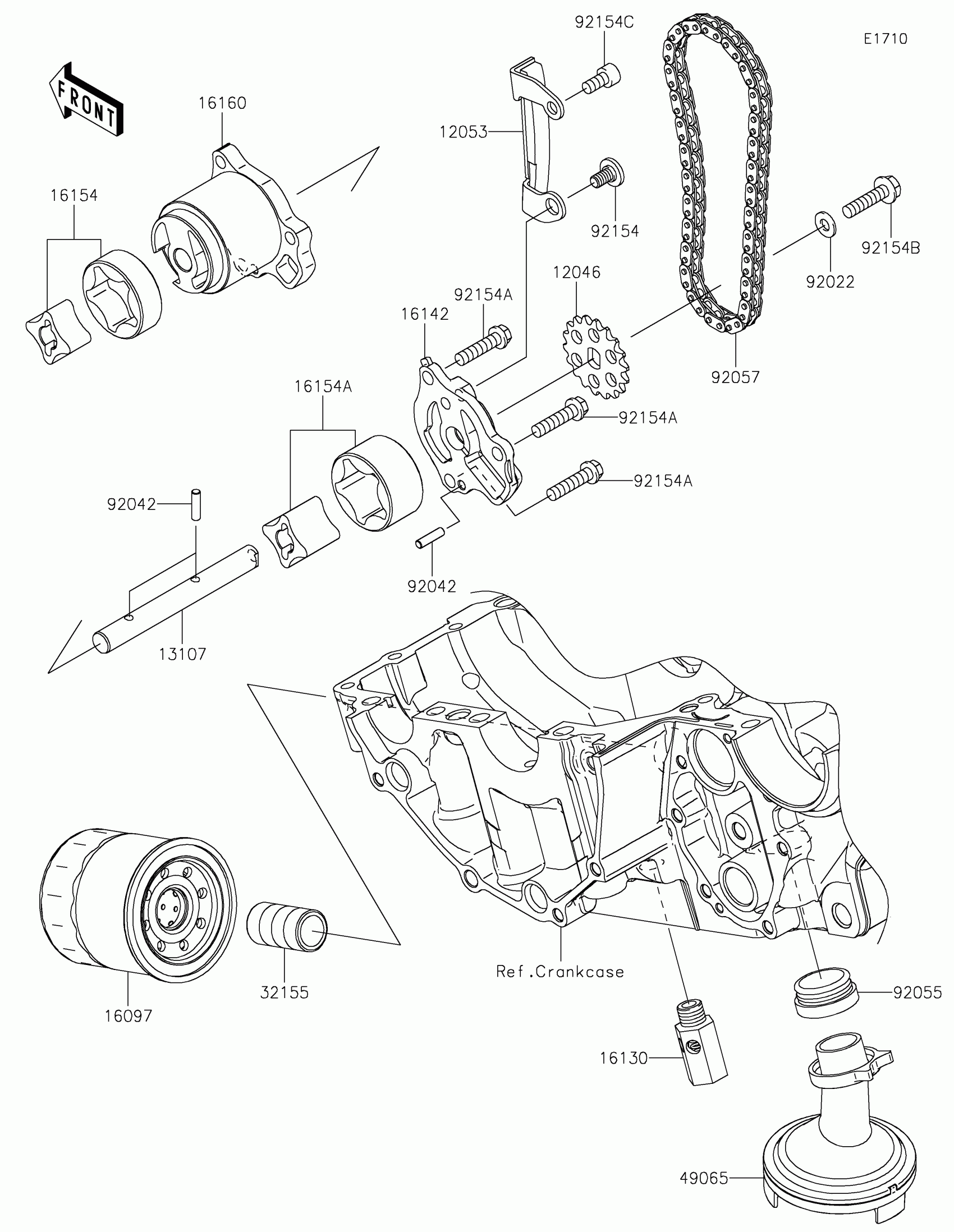

Find the part on the Oil Pump diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Versys 650 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,18T,BF04M

12046-0040

1

$11.41

In stock

12053

GUIDE-CHAIN

12053-0071

1

$31.36

In stock

13107

SHAFT,OIL PUMP

13107-0772

1

$30.16

In stock

16097

FILTER-ASSY-OIL

16097-0008

1

$11.46

In stock

16130

VALVE-ASSY-RELIEF

16130-0552

1

$46.63

In stock

16142

COVER-PUMP

16142-0712

1

$30.16

In stock

16154

ROTOR-PUMP,L=14

16154-0037

1

$62.33

In stock

16154A

ROTOR-PUMP,40.56X22

16154-1115

1

$64.28

In stock

16160

BODY

16160-0110

1

$39.15

In stock

32155

PIPE,OIL FILTER

32155-0029

1

$14.17

In stock

49065

FILTER-OIL

49065-0708

1

$32.36

In stock

92022

WASHER,6X12.8X1.2

92022-1827

1
Out of stock

92042

PIN,DOWEL,4X15.8

92042-014

1

$0.49

In stock

92055

RING-O,OIL FILTER

92055-1354

1

$7.55

In stock

92057

1

$40.63

In stock

92154

BOLT,SOCKET,6X11

92154-0188

1

$2.41

In stock

92154A

BOLT,FLANGED,6X25

92154-0783

1

$7.15

In stock

92154B

BOLT,FLANGED,6X25

92154-0811

1

$1.93

In stock

92154C

BOLT,SOCKET,6X12

92154-0812

1

$4.95

In stock
