2024 Kawasaki Versys 650 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

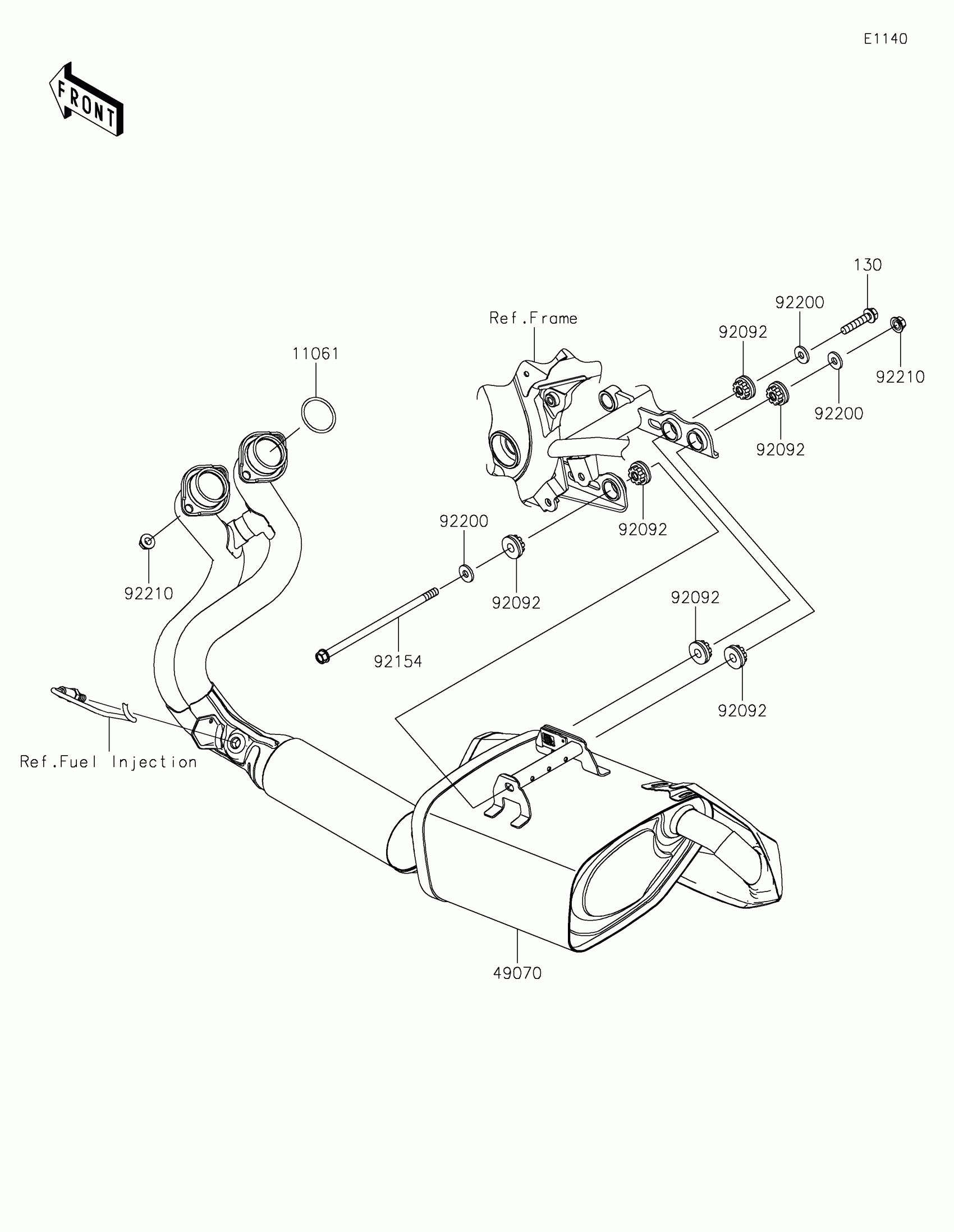

2024 Kawasaki Versys 650 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

1

$6.27

In stock

49070

MUFFLER-COMP

49070-0921

1

$1,361.27

In stock

92092

BUSHING-RUBBER

92092-0042

1

$15.66

In stock

92154

BOLT,FLANGED,8X175

92154-3973

1

$8.97

In stock

92200

WASHER,8.2X20.0X2.5

92200-0205

1
Out of stock

92210

NUT,8MM

92210-1114

1
Out of stock

130

BOLT-FLANGED,8X40

130CD0840

1

$3.35

In stock
