2024 Kawasaki Versys 650 Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

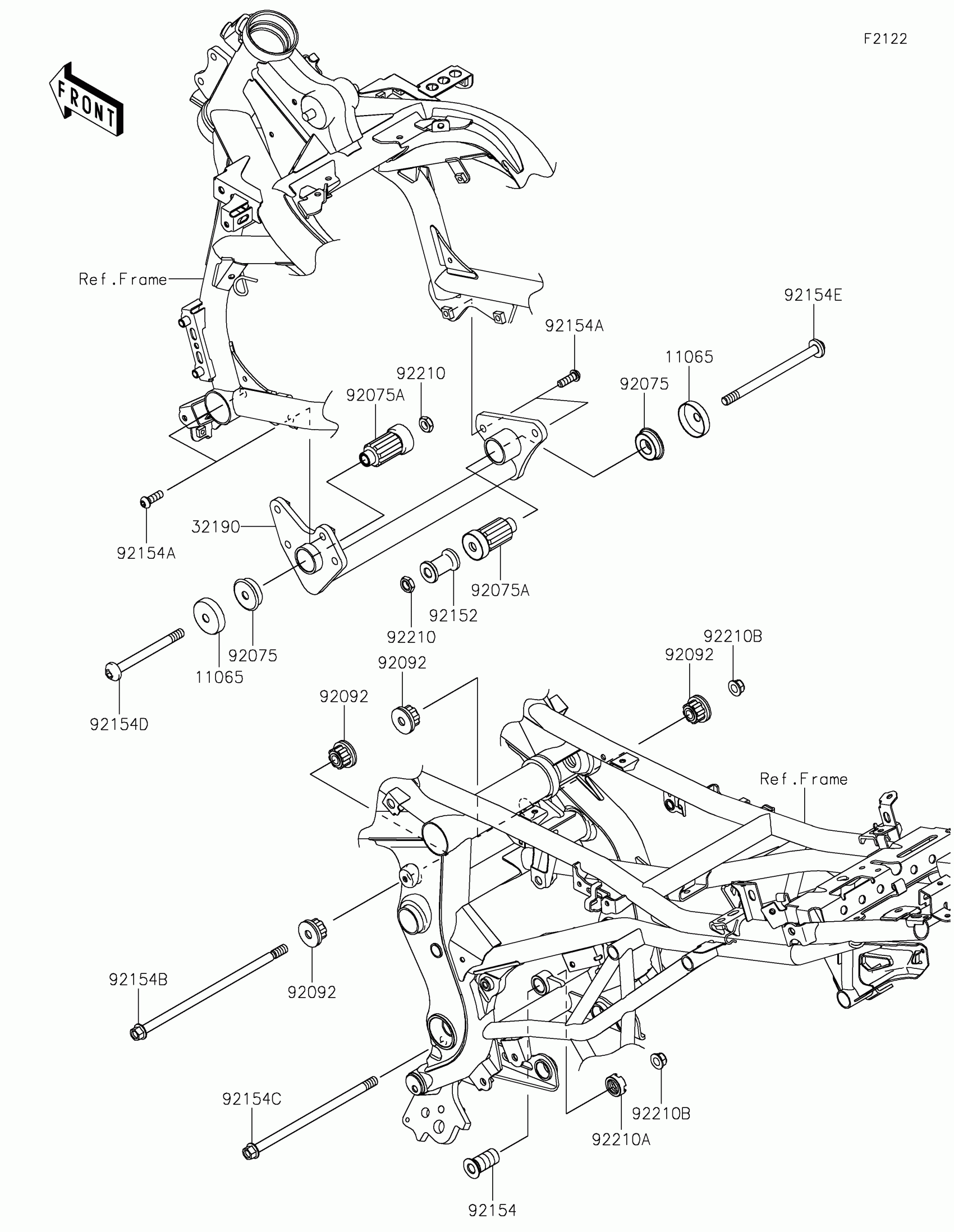

2024 Kawasaki Versys 650 Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,10.5X43X10

11065-0871

1

$3.29

In stock

32190

BRACKET-ENGINE,FR

32190-0871

1

$107.94

In stock

92075

DAMPER,ENGINE MOUNT

92075-1738

1

$21.76

In stock

92075A

1

$29.30

In stock

92092

BUSHING-RUBBER

92092-0021

1

$12.44

In stock

92152

COLLAR,10.5X26X40

92152-1878

1
Out of stock

92154

1

$30.73

In stock

92154A

BOLT,SOCKET,8X25

92154-1485

1

$2.25

In stock

92154B

BOLT,FLANGED,10X237

92154-1505

1

$30.95

In stock

92154C

BOLT,FLANGED,10X200

92154-1660

1

$32.58

In stock

92154D

BOLT,SOCKET,10X110

92154-1671

1

$8.50

In stock

92154E

BOLT,SOCKET,10X150

92154-1672

1

$16.78

In stock

92210

NUT,LOCK,10MM

92210-0784

1
Out of stock

92210A

NUT,CASTLE,18MM

92210-0963

1
Out of stock

92210B

NUT,LOCK,FLANGED,10MM

92210-1081

1
Out of stock
