2023 Kawasaki Versys® 650 Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2023 Kawasaki Versys® 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

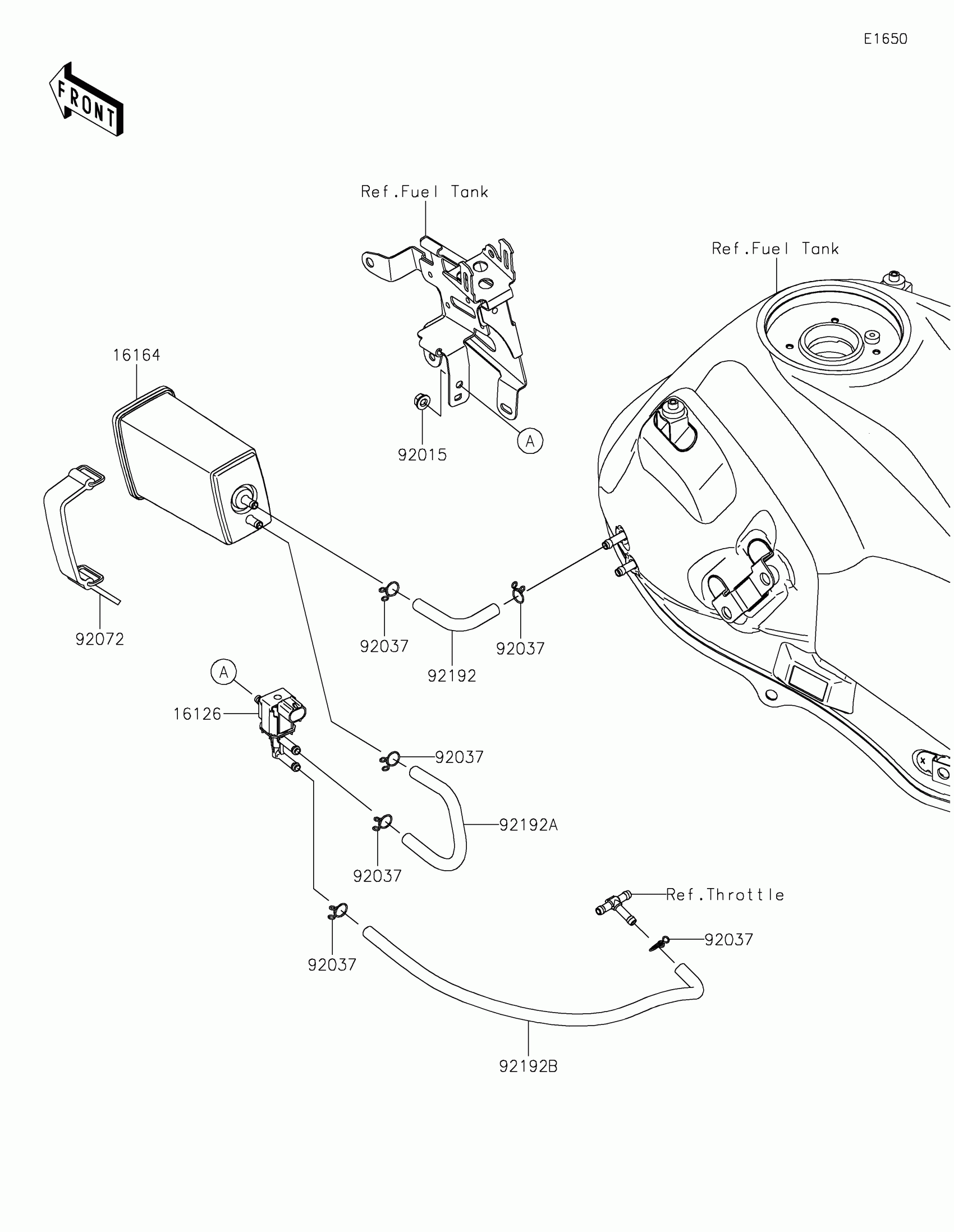

2023 Kawasaki Versys® 650 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE,SOLENOID

16126-0705

1

$109.25

In stock

16164

CANISTER

16164-0012

1

$152.89

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92072

BAND,L=90

92072-0135

1

$14.20

In stock

92192

TUBE,TANK-CANISTER

92192-1382

1
Out of stock

92192A

TUBE,CANISTER-VALVE

92192-1383

1
Out of stock

92192B

TUBE,VALVE-THROTTLE

92192-1384

1
Out of stock
