2024 Kawasaki Versys 650 Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

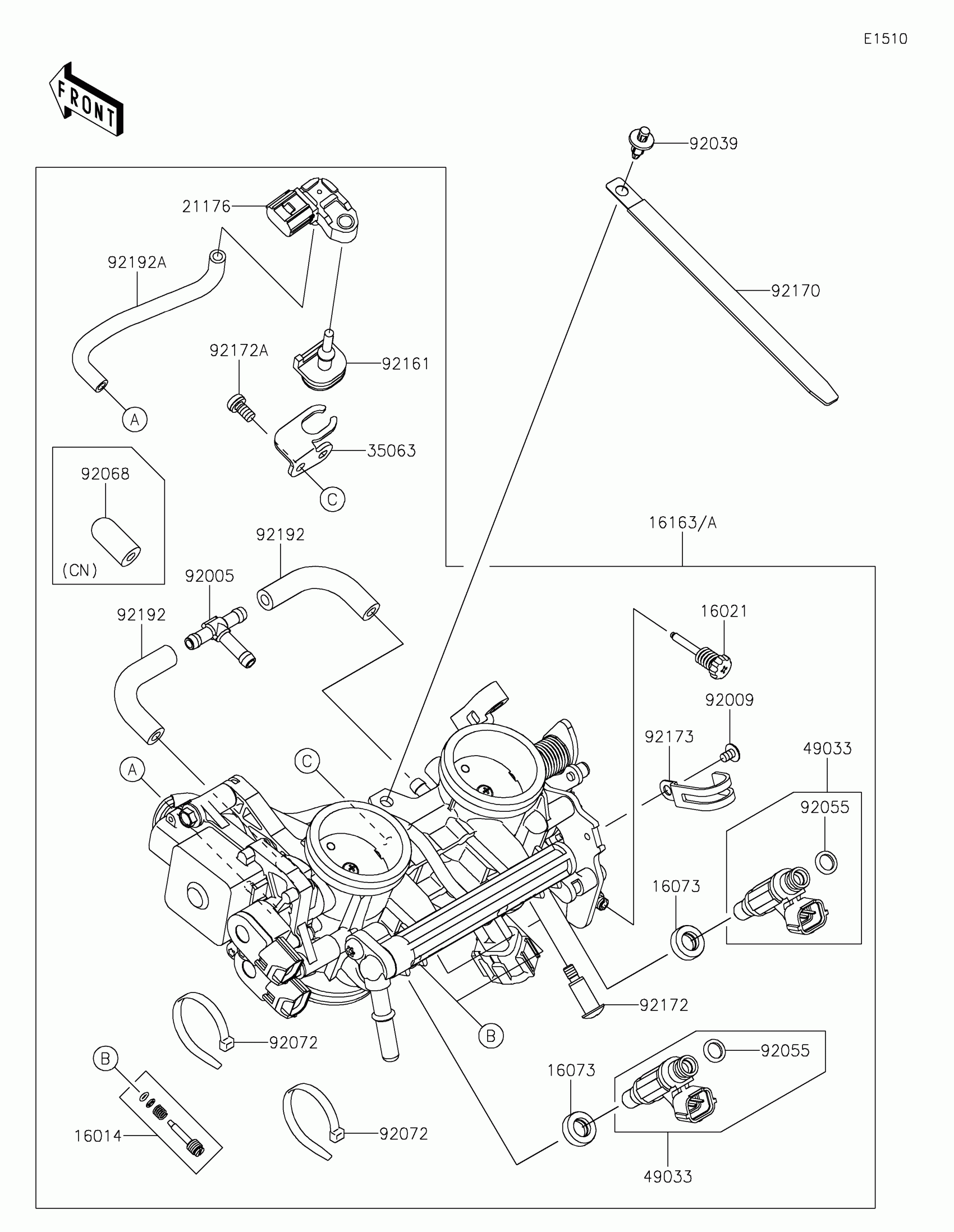

2024 Kawasaki Versys 650 Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16014

SCREW-PILOT AIR

16014-0002

1

$23.08

In stock

16021

SCREW-THROTTLE STOP

16021-0033

1

$70.89

In stock

16073

INSULATOR

16073-0129

1

$4.75

In stock

21176

SENSOR,PRESSURE

21176-0906

1

$226.99

In stock

35063

STAY

35063-1528

1

$42.88

In stock

49033

NOZZLE-INJECTION

49033-0568

1

$94.10

In stock

92009

SCREW,CLAMP

92009-1860

1
Out of stock

92039

RIVET

92039-0707

1

$1.69

In stock

92055

1

$2.42

In stock

92072

BAND,SUB-HARNESS

92072-0012

1

$3.97

In stock

92161

DAMPER

92161-0673

1

$4.85

In stock

92170

CLAMP,L=150

92170-1114

1

$7.36

In stock

92172

1

$2.29

In stock

92172A

SCREW

92172-0393

1

$7.47

In stock

92173

CLAMP

92173-0288

1

$5.46

In stock

92192A

TUBE

92192-2368

1

$20.29

In stock
