2025 Kawasaki Versys 1100 Se LT ABS Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2025 Kawasaki Versys 1100 Se LT ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

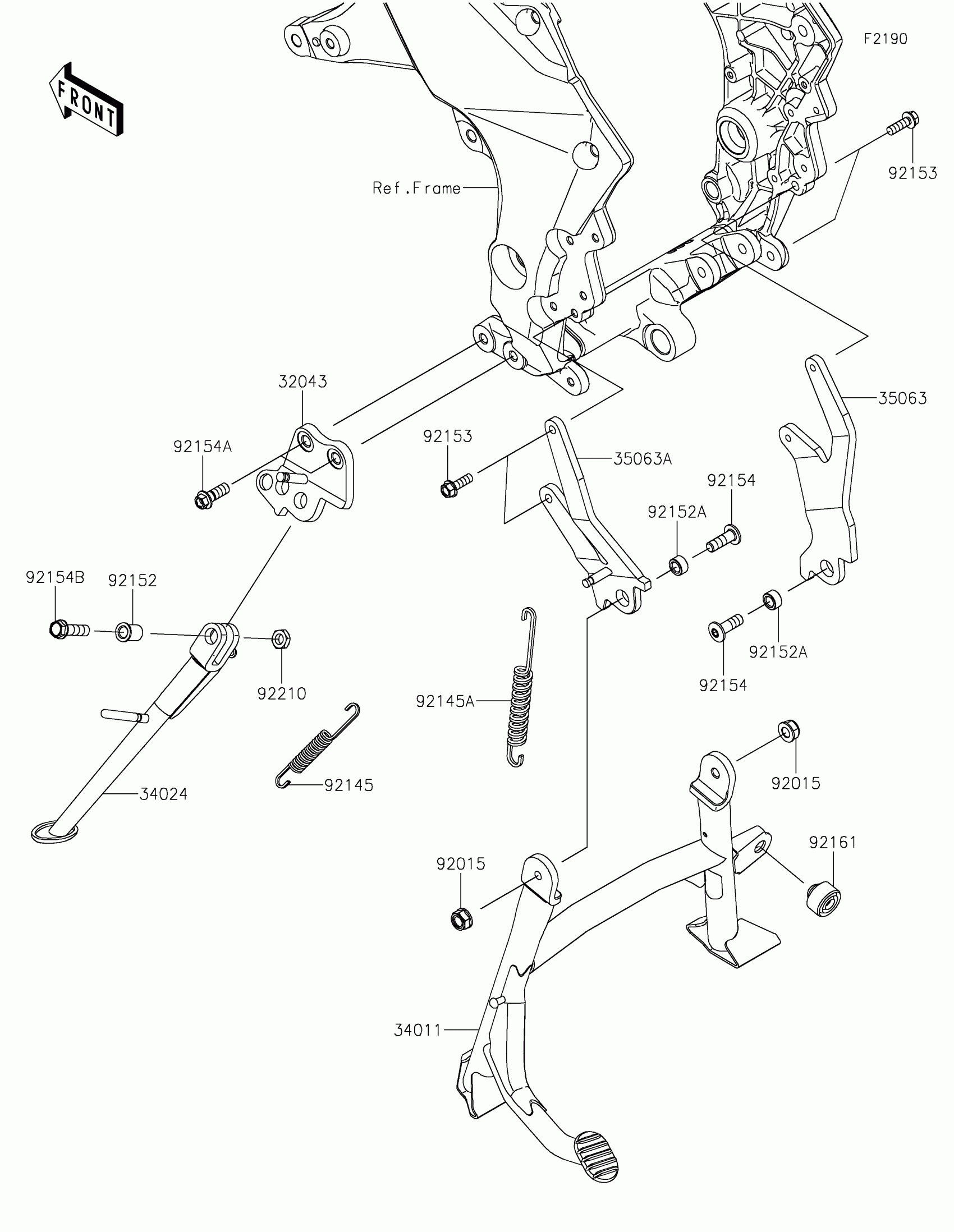

2025 Kawasaki Versys 1100 Se LT ABS Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

BRACKET-STAND

32043-0642

1
Out of stock

34011

STAND-CENTER

34011-0037

1
Out of stock

34024

STAND-SIDE

34024-0152

1
Out of stock

35063

STAY,CENTER STAND,RH

35063-0981

1
Out of stock

35063A

STAY,CENTER STAND,LH

35063-1485

1
Out of stock

92015

NUT,LOCK,FLANGED,10MM

92015-1717

1
Out of stock

92145

SPRING,SIDE STAND

92145-0562

1
Out of stock

92145A

SPRING,CENTER STAND

92145-1550

1
Out of stock

92152

COLLAR,10.2X15X20.1

92152-1828

1
Out of stock

92152A

COLLAR,10X17X9

92152-1906

1
Out of stock

92153

BOLT,FLANGED,8X25

92153-1768

1
Out of stock

92154

BOLT,SOCKET,10X30

92154-1665

1
Out of stock

92154A

BOLT,FLANGED,10X28

92154-1963

1
Out of stock

92154B

BOLT,FLANGED,10X37

92154-2330

1
Out of stock

92161

DAMPER

92161-2154

1
Out of stock

92210

NUT,LOCK,10MM

92210-0784

1
Out of stock
