2025 Kawasaki Versys 1100 Se LT ABS Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2025 Kawasaki Versys 1100 Se LT ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

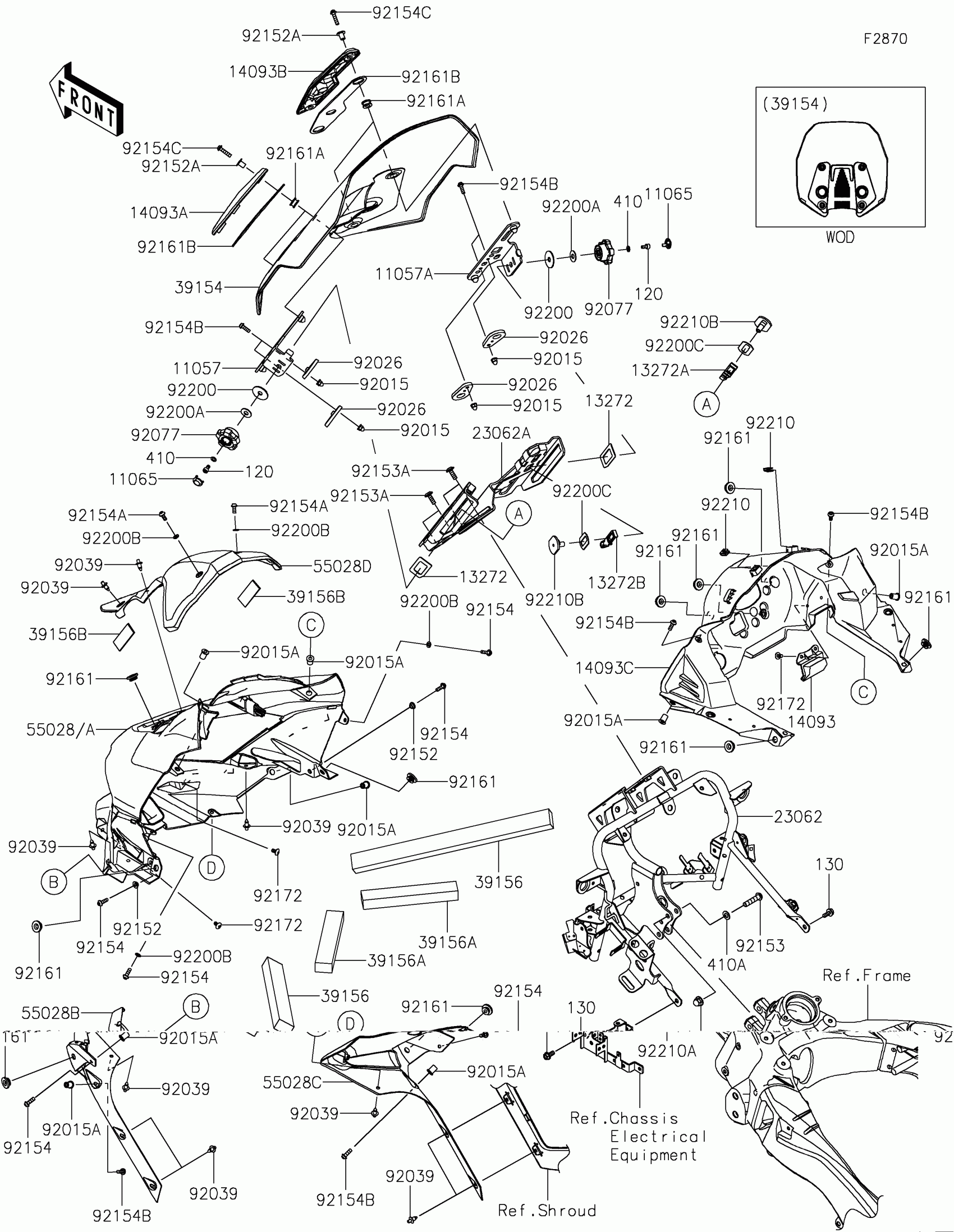

2025 Kawasaki Versys 1100 Se LT ABS Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1960

1
Out of stock

11057A

BRACKET

11057-1961

1
Out of stock

11065

CAP,KNOB

11065-0734

1
Out of stock

13272

PLATE

13272-2582

1
Out of stock

13272A

PLATE

13272-2583

1
Out of stock

13272B

PLATE

13272-2584

1
Out of stock

14093

COVER,FOG SWITCH

14093-0730

1
Out of stock

14093A

COVER,LH

14093-0733

1
Out of stock

14093B

COVER,RH

14093-0734

1
Out of stock

14093C

COVER,METER

14093-0910

1
Out of stock

23062

BRACKET-COMP,COWLING

23062-1173

1
Out of stock

23062A

BRACKET-COMP,WINDSHIELD

23062-1203

1
Out of stock

39154

WINDSHIELD,LARGE

39154-0441

1
Out of stock

39156

PAD,20X370X30

39156-2435

1
Out of stock

39156A

PAD,20X170X30

39156-2436

1
Out of stock

39156B

PAD,68X20X2

39156-2472

1
Out of stock

55028

COWLING,UPP,CNT,M.G.GRAY

55028-0681-45W

1
Out of stock

55028A

COWLING,UPP,CNT,P.R.WHITE

55028-0681-68N

1
Out of stock

55028B

COWLING,UPP,LWR,LH

55028-0682

1
Out of stock

55028C

COWLING,UPP,LWR,RH

55028-0683

1
Out of stock

55028D

COWLING,METER VISOR

55028-0700

1
Out of stock

92015

NUT,LOCK,FLANGE CAP,5MM

92015-1263

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92026

SPACER

92026-0859

1
Out of stock

92039

RIVET

92039-0068

1
Out of stock

92077

KNOB,ADJUSTERS

92077-0703

1
Out of stock

92152

COLLAR

92152-0451

1
Out of stock

92152A

COLLAR

92152-2509

1
Out of stock

92153

BOLT,SOCKET,8X35

92153-0419

1
Out of stock

92153A

BOLT,6X18

92153-0816

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154A

BOLT,SOCKET,5X12

92154-0917

1
Out of stock

92154B

BOLT,SOCKET,5X16

92154-1701

1
Out of stock

92154C

BOLT,SOCKET,5X23

92154-3820

1
Out of stock

92161

DAMPER

92161-1531

1
Out of stock

92161A

DAMPER

92161-1938

1
Out of stock

92161B

DAMPER

92161-2138

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92200

WASHER,8.2X30X1.5

92200-0810

1
Out of stock

92200A

WASHER,8.2X20X1

92200-1751

1
Out of stock

92200B

WASHER,5.2X10X1.0

92200-1820

1
Out of stock

92200C

WASHER,23.5X32X1

92200-2264

1
Out of stock

92210

NUT

92210-0571

1
Out of stock

92210A

NUT,CAP,8MM

92210-1132

1
Out of stock

92210B

NUT,5MM

92210-1723

1
Out of stock

120

BOLT-SOCKET,5X10

120CA0510

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

410

WASHER-PLAIN-SMALL

410AA0500

1
Out of stock

410A

WASHER-PLAIN-SMALL,8MM

410AA0800

1
Out of stock
