2020 Kawasaki Versys® 1000 SE LT+ Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2020 Kawasaki Versys® 1000 SE LT+, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

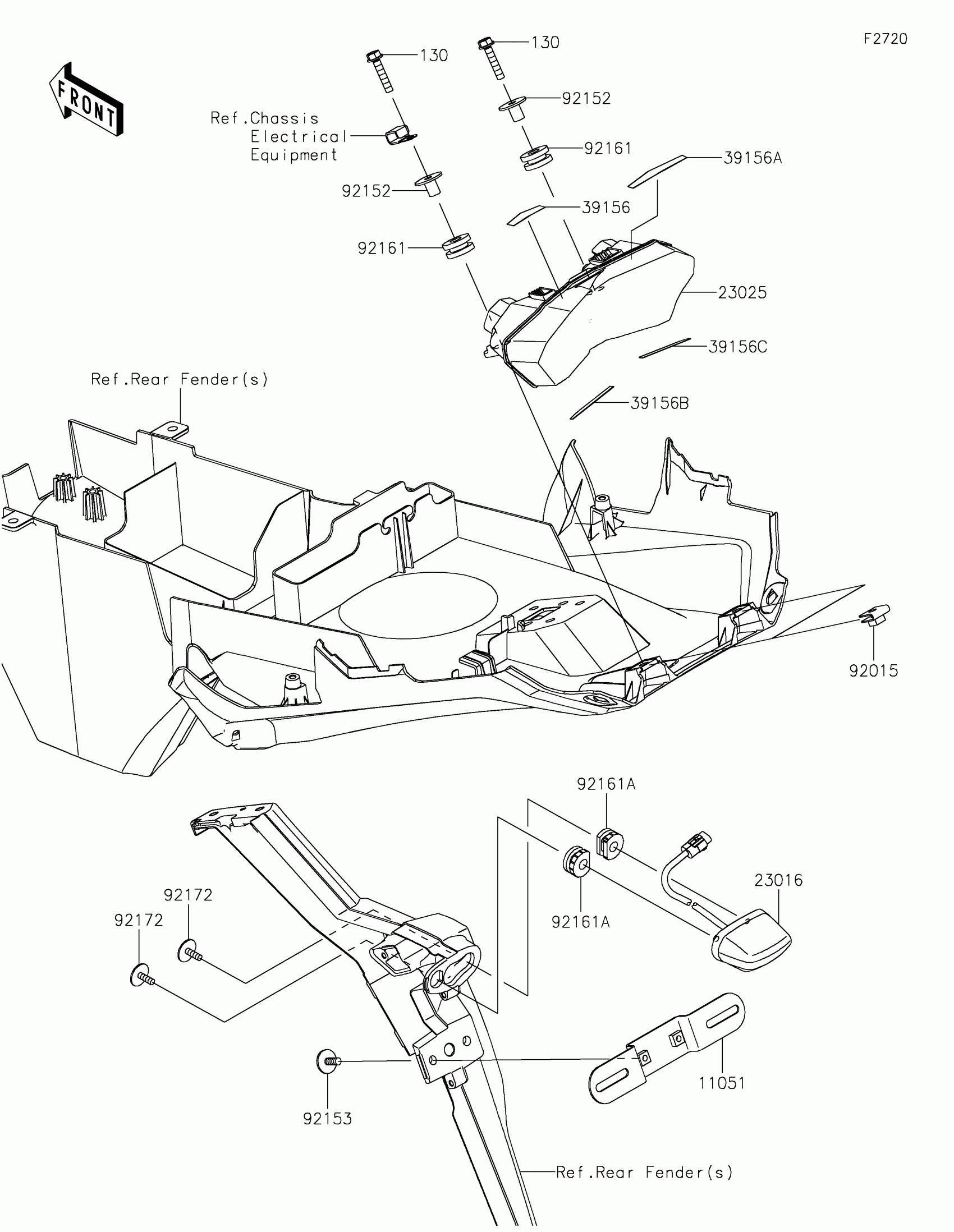

2020 Kawasaki Versys® 1000 SE LT+ Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11051

BRACKET,LICENSE

11051-1503

1
Out of stock

130

BOLT-FLANGED,6X30

130BA0630

1

$1.31

In stock

23016

LAMP-ASSY,LICENSE,LED

23016-0639

1
Out of stock

23025

LAMP-TAIL,LED

23025-0387

1
Out of stock

39156

PAD,TAIL LAMP,UPP,LH

39156-2478

1
Out of stock

39156A

PAD,TAIL LAMP,UPP,RH

39156-2479

1
Out of stock

39156B

PAD,TAIL LAMP,LWR,LH

39156-2480

1
Out of stock

39156C

PAD,TAIL LAMP,LWR,RH

39156-2481

1
Out of stock

92015

NUT,6MM

92015-1094

1
Out of stock

92152

COLLAR,6.4X9.5X15.1

92152-2331

1
Out of stock

92153

BOLT,6X16

92153-1423

1
Out of stock

92161

DAMPER

92161-0163

1
Out of stock

92161A

DAMPER,9X23X12

92161-1885

1

$7.56

In stock

92172

SCREW,TAPTITE,5X16

92172-0481

1
Out of stock
