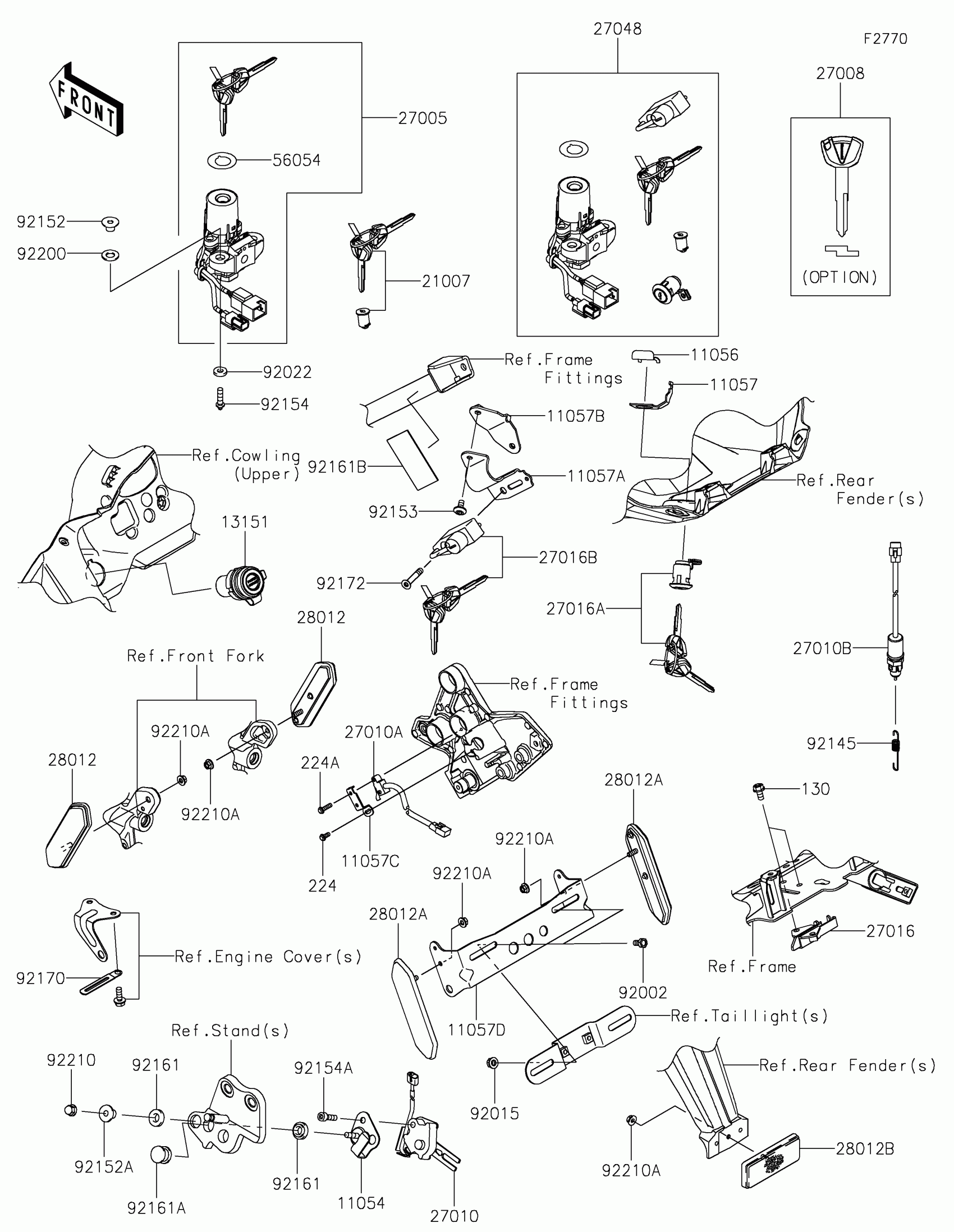

Kawasaki VERSYS® 1000 SE LT+ Ignition Switch Diagram

#

Description
Price

11054

BRACKET,SIDE STAND SWITCH

11054-1904

$10.83

11056

BRACKET,CLASP

11056-0238

$4.53

11057

BRACKET,KEY CYLINDER

11057-0478

$3.93

11057A

BRACKET

11057-1708

$9.90

11057B

BRACKET

11057-1709

$9.20

11057C

BRACKET,REAR BRAKE

11057-1969

$3.29

11057D

BRACKET,RR,REFLECTOR

11057-2748

$117.71

13151

SWITCH-COMP,DC OUTLET

13151-0579

$145.88

21007

ROTOR,LOCK,TANK CAP

21007-5068

$90.02

27005

SWITCH-ASSY-IGNITION

27005-0565

$183.65

27008

KEY-LOCK,BLANK,IMMOBI,SUB

27008-0065

$60.57

27010

SWITCH,SIDE STAND

27010-0811

$72.44

27010A

SWITCH,REAR BRAKE

27010-0865

$78.58

27010B

SWITCH,BRAKE

27010-0894

$35.68

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$29.14

27016A

LOCK-ASSY,SEAT

27016-5396

$92.15

27016B

LOCK-ASSY,HELMET

27016-5402

$69.37

27048

SWITCH-ASSY

27048-5199

$393.45

28012

REFLECTOR-REFLEX,CCC

28012-0045

$15.61

28012A

REFLECTOR-REFLEX,RED,CCC

28012-0046

$15.61

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

56054

MARK,IGNITION SWITCH

56054-0969

Unavailable

92002

BOLT,6X12

92002-1132

$1.14

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92022

WASHER,7X15.5X3

92022-312

$3.97

92145

SPRING,BRAKE LAMP SWITCH

92145-0761

$3.58

92152

COLLAR

92152-0423

$2.98

92152A

COLLAR

92152-1074

$4.67

92153

BOLT,SOCKET,6X12

92153-1948

$1.53

92154

BOLT,TORX,6X22

92154-1858

$3.01

92154A

BOLT,SOCKET,6X22

92154-1898

$1.54

92161

DAMPER

92161-0117

$2.36

92161A

DAMPER

92161-0118

$2.36

92161B

DAMPER,36X77X1.5

92161-2202

$2.20

92170

CLAMP

92170-1514

$3.29

92172

SCREW,HEXLOBE,6X35

92172-0835

$2.44

92200

WASHER,10.2X20X1.6

92200-0328

$3.51

92210

NUT,CAP,6MM

92210-0003

$0.60

92210A

NUT,FLANGED,5MM

92210-0007

$1.90

130

BOLT-FLANGED,6X12

130BA0612

$1.25

224

SCREW-PAN-WP-CROS,4X10

224AA0410

$0.47

224A

SCREW-PAN-WP-CROS,4X16

224AA0416

$0.69
