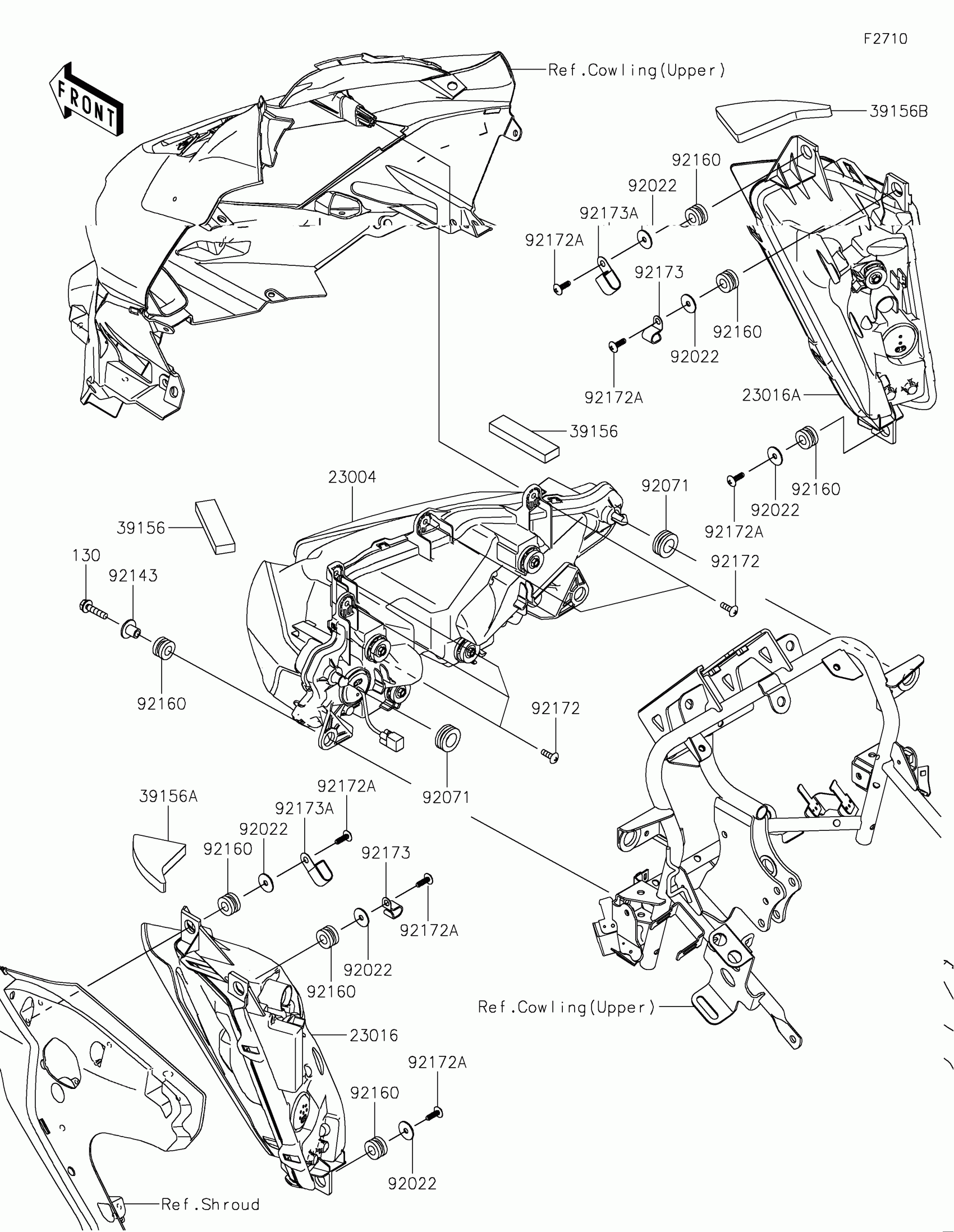

Kawasaki VERSYS® 1000 SE LT+ Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X25

130BB0625

$1.84

23004

LAMP-HEAD,LED

23004-0395

$1,249.46

23016

LAMP-ASSY,CORNERING,LH

23016-0624

$1,118.23

23016A

LAMP-ASSY,CORNERING,RH

23016-0627

$493.89

39156

PAD,80X20X10

39156-2443

$1.54

39156A

PAD

39156-2446

$7.44

39156B

PAD

39156-2447

$7.44

92022

WASHER,5.5X20X1.2

92022-1405

$3.29

92071

GROMMET

92071-1131

$5.93

92143

COLLAR

92143-1353

$6.54

92160

DAMPER,10X20X12

92160-1167

$3.57

92172

SCREW,TAPPING,5X16

92172-0175

$1.32

92172A

SCREW,TAPPING,5X16

92172-0238

$0.84

92173

CLAMP

92173-0982

$4.95

92173A

CLAMP,68MM

92173-1009

$3.59
