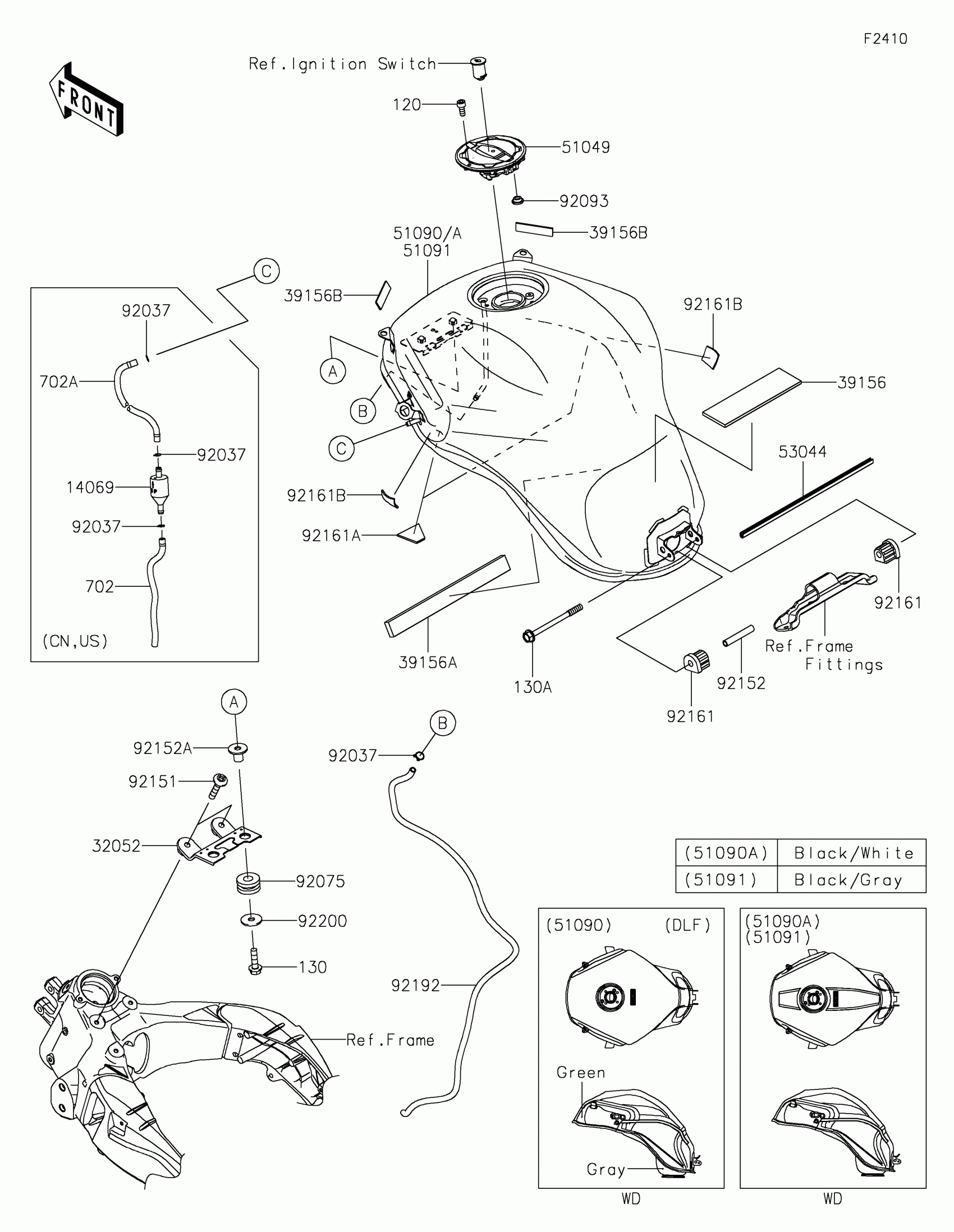

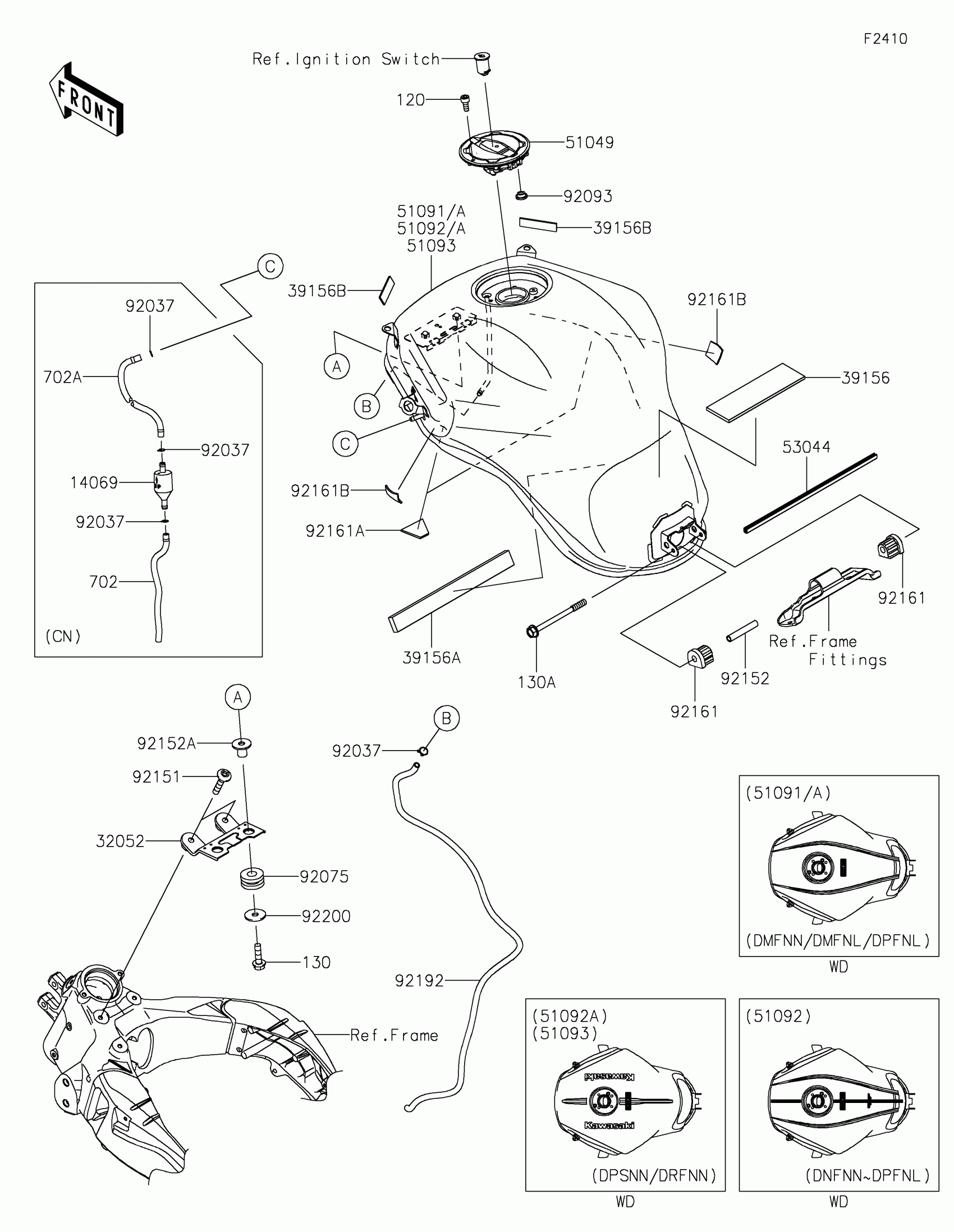

Kawasaki VERSYS® 1000 SE LT+ Fuel Tank Diagram

#

Description
Price

120

BOLT-SOCKET,5X12

120CA0512

$1.19

130

BOLT-FLANGED,6X22

130BA0622

$1.00

130A

BOLT-FLANGED,6X70

130BB0670

$4.47

14069

BREATHER,TANK

14069-0008

$5.97

32052

BRACKET-TANK,F.S.BLACK

32052-0749-18R

$50.29

39156

PAD,FUEL TANK,RR

39156-0982

$7.25

39156A

PAD,25X260X10

39156-1866

$3.27

39156B

PAD,15X60X2

39156-2448

$1.17

51049

CAP-TANK

51049-0735

$139.17

51090

TANK-COMP-FUEL,E.B.GREEN+GRY

51090-5378-J10

$1,798.64

51091

TANK-COMP-FUEL,M.S.BLACK+GRY

51091-5112-J13

Unavailable

53044

TRIM

53044-1296

$11.49

702

TUBE-RUBBER,6X200

702A06200

$8.75

702A

TUBE-RUBBER,6X9X450

702A06450

$1.32

92037

CLAMP,TUBE

92037-010

$2.99

92037

CLAMP,TUBE

92037-010

$2.99

92075

DAMPER,10X24X12

92075-1690

$3.81

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92151

BOLT,SOCKET,6X30

92151-1605

$1.68

92152

COLLAR,6.8X10X60

92152-1182

$3.69

92152A

COLLAR,6.3X9.5X14.1

92152-1847

$5.66

92161

DAMPER,FUEL TANK,RR

92161-1330

$4.42

92161A

DAMPER,30X48X3

92161-1768

$4.63

92161B

DAMPER,25X25X2

92161-1770

$1.10

92192

TUBE,6X9X926(30)

92192-1024

$22.63

92200

WASHER,6.5X22X1.6

92200-1087

$3.01
