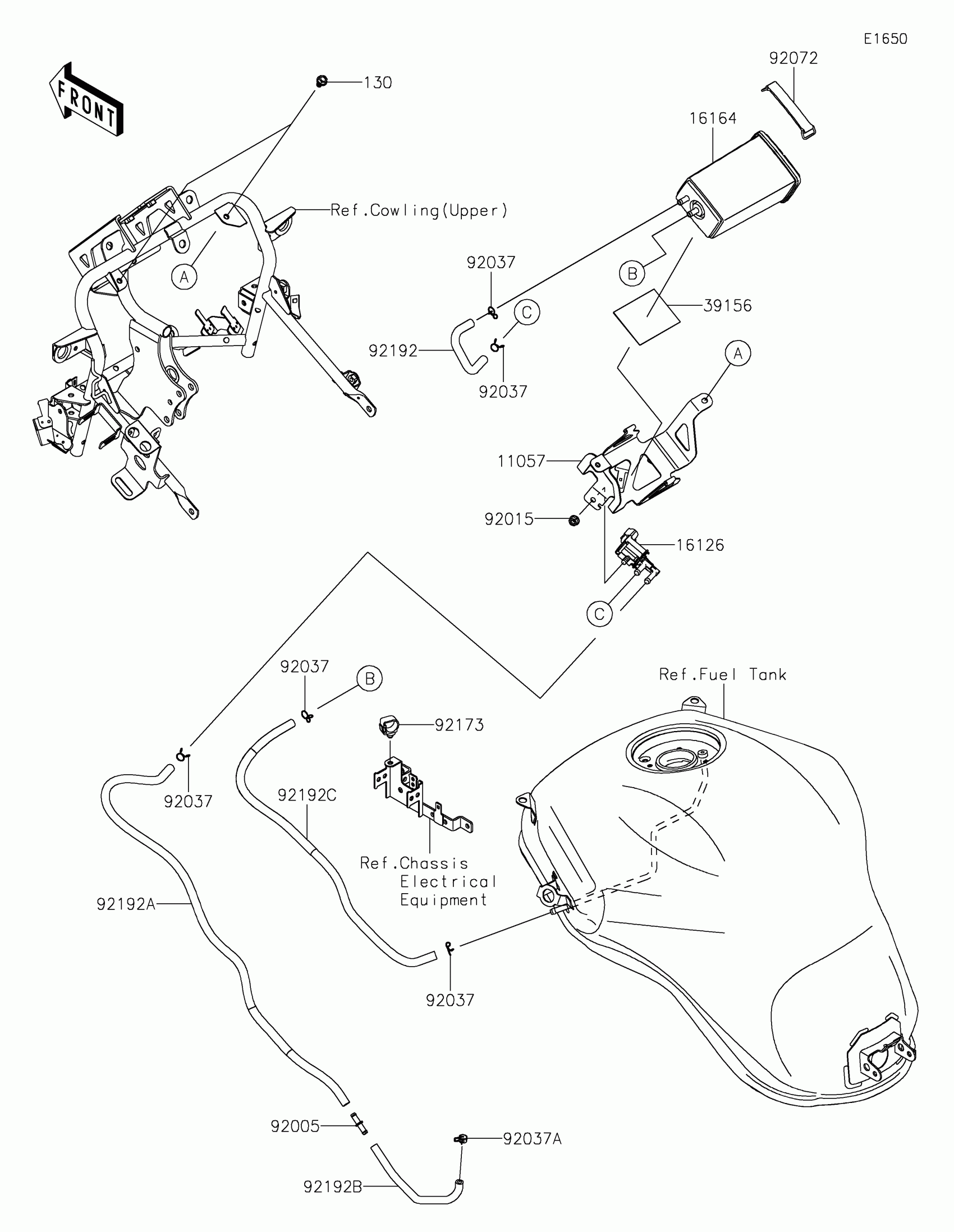

Kawasaki VERSYS® 1000 SE LT+ Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,CANISTER

11057-1728

$30.38

130

BOLT-FLANGED,6X10

130BA0610

$0.97

16126

VALVE,PCV

16126-0740

$109.25

16164

CANISTER

16164-0012

$152.89

39156

PAD,CANISTER BRACKET

39156-1871

$3.27

92005

FITTING

92005-0721

$8.85

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP

92037-1712

$3.81

92037A

CLAMP,7.8MM

92037-2116

$1.24

92072

BAND,TOOL,L=82

92072-1294

$14.14

92173

CLAMP,HOLDER CLIP

92173-0868

$2.11

92192

TUBE,CANISTER-VALVE

92192-1915

$23.83

92192A

TUBE,VALVE-THB(VALVE SIDE)

92192-1916

$72.62

92192B

TUBE,VALVE-THB(THB SIDE)

92192-1917

$36.38

92192C

TUBE,TANK-CANISTER

92192-1985

$72.46
