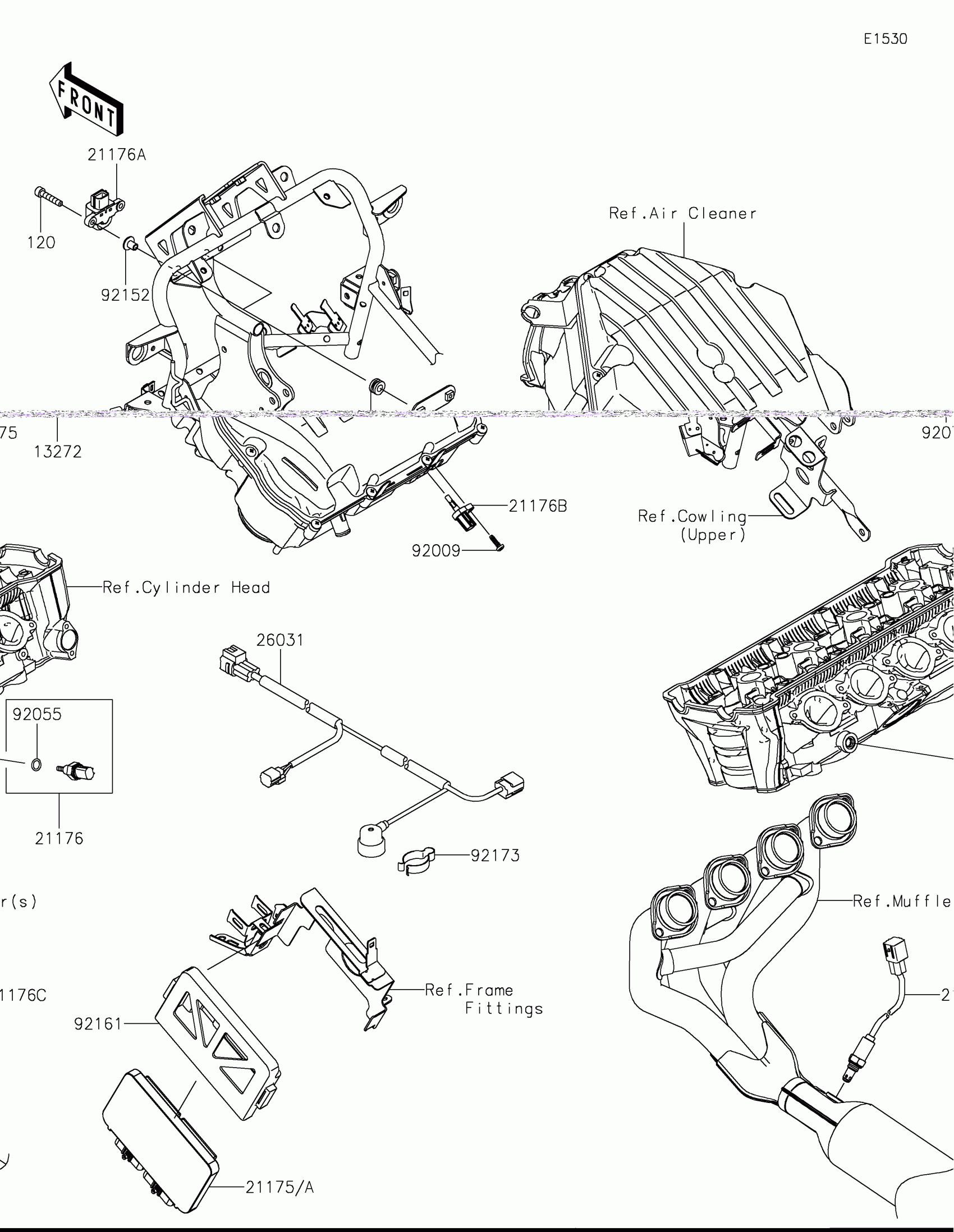

Find the part on the Fuel Injection diagram for your 2020 Kawasaki Versys® 1000 SE LT+, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Versys® 1000 SE LT+ Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X25

120CA0525

1
Out of stock

13272

PLATE,VEHICLE DOWN SENSOR

13272-2706

1
Out of stock

21175

CONTROL UNIT-ELECTRONIC

21175-1416

1
Out of stock

21175A

CONTROL UNIT-ELECTRONIC

21175-1506

1
Out of stock

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1
Out of stock

21176B

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

21176C

SENSOR,OXYGEN

21176-0885

1
Out of stock

26031

HARNESS,SUB

26031-2470

1
Out of stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92075

DAMPER

92075-1912

1
Out of stock

92152

COLLAR

92152-1625

1
Out of stock

92161

DAMPER,ECU

92161-2140

1
Out of stock

92171

CLAMP,CABLE

92171-1283

1
Out of stock
