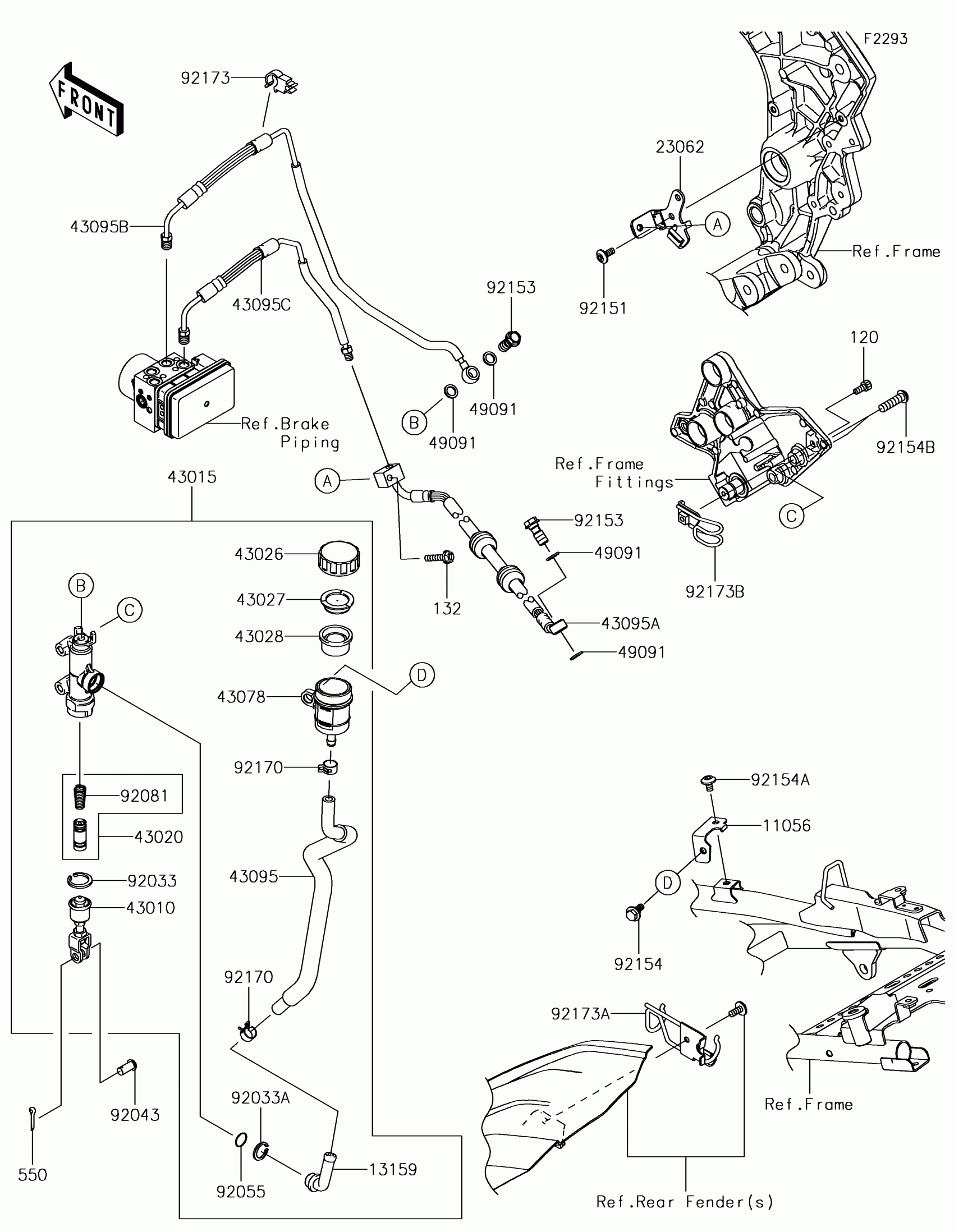

Kawasaki VERSYS® 1000 LT Rear Master Cylinder Diagram

#

Description
Price

11056

BRACKET,RESERVOIR TANK

11056-7304

$7.24

120

BOLT-SOCKET,6X14

120CB0614

$3.14

13159

CONNECTOR

13159-1056

$10.71

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

23062

BRACKET-COMP

23062-0756

$15.69

43010

ROD-ASSY-BRAKE

43010-1062

$45.28

43015

CYLINDER-ASSY-MASTER,RR

43015-0572

Unavailable

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-0009

$38.22

43027

PLATE-DIAPHRAGM

43027-1053

$4.97

43028

DIAPHRAGM

43028-1065

$17.85

43078

RESERVOIR

43078-0060

$33.06

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0700

$35.72

43095A

HOSE-BRAKE,RR CALIPER-HU

43095-1448

$177.18

43095B

HOSE-BRAKE,RR M/C-HU

43095-1452

$121.87

43095C

HOSE-BRAKE,HU-RR CALIPER

43095-1453

$177.18

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

550

PIN-COTTER,2.0X15

550AA2015

$0.90

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92043

PIN

92043-0904

$3.51

92055

RING-O,14.8X2.4

92055-0741

$2.82

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

92151

BOLT,SOCKET,6X14

92151-1654

$1.35

92153

BOLT,OIL,L=23

92153-0627

$4.15

92154

BOLT,FLANGED,6X16

92154-0385

$3.59

92154A

BOLT,SOCKET,6X10

92154-0774

$1.24

92154B

BOLT,SOCKET,8X30

92154-1704

$3.66

92170

CLAMP,HOSE

92170-1091

$3.81

92173

CLAMP

92173-0170

$3.93

92173A

CLAMP

92173-0882

$34.49

92173B

CLAMP,RR BRAKE HOSE

92173-1388

$19.17
