2018 Kawasaki Versys® 1000 LT Rear Brake Diagram

← All diagrams

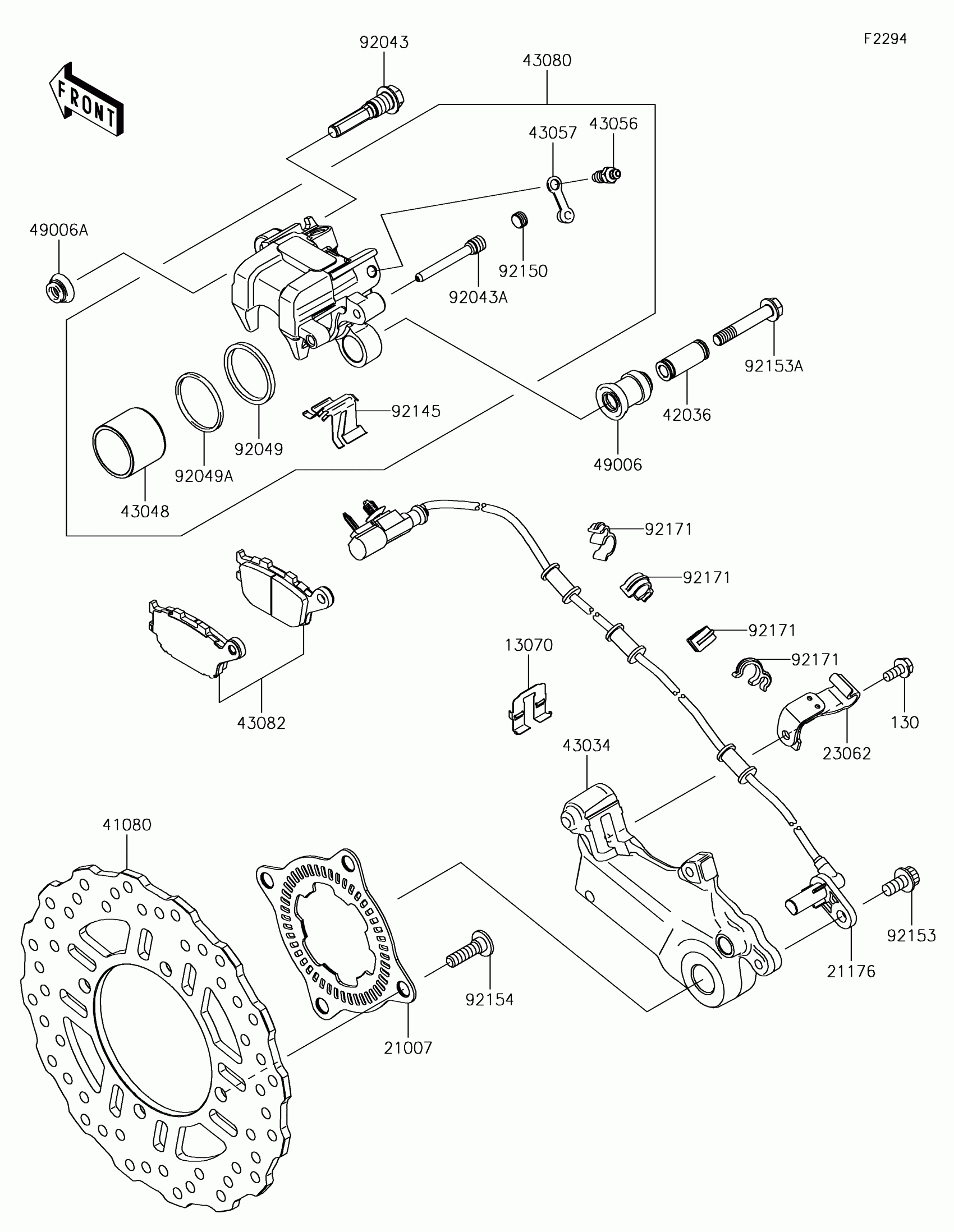

Find the part on the Rear Brake diagram for your 2018 Kawasaki Versys® 1000 LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Kawasaki Versys® 1000 LT Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

13070

GUIDE,BRAKE PAD

13070-0076

1
Out of stock

21007

ROTOR,SENSOR,RR

21007-0141

1
Out of stock

21176

SENSOR,SPEED,RR

21176-0722

1
Out of stock

23062

BRACKET-COMP

23062-0760

1
Out of stock

41080

DISC,RR

41080-0632

1
Out of stock

42036

SLEEVE

42036-0050

1
Out of stock

43034

HOLDER-BRAKE

43034-0073

1
Out of stock

43048

PISTON-CALIPER

43048-0008

1
Out of stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0050-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0073

1
Out of stock

49006

BOOT

49006-0058

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

92043

PIN

92043-0137

1
Out of stock

92043A

PIN,HANGER

92043-1520

1
Out of stock

92049

SEAL-OIL

92049-1449

1
Out of stock

92049A

SEAL-OIL

92049-1450

1
Out of stock

92145

SPRING,PAD

92145-0493

1
Out of stock

92150

BOLT,PLUG

92150-1692

1
Out of stock

92153

BOLT,SOCKET,8X16

92153-0327

1
Out of stock

92153A

BOLT,FLANGED

92153-1826

1
Out of stock

92154

BOLT,SOCKET,8X30

92154-1865

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-1819

1
Out of stock
