2018 Kawasaki Versys® 1000 LT Brake Pedal Diagram

← All diagrams

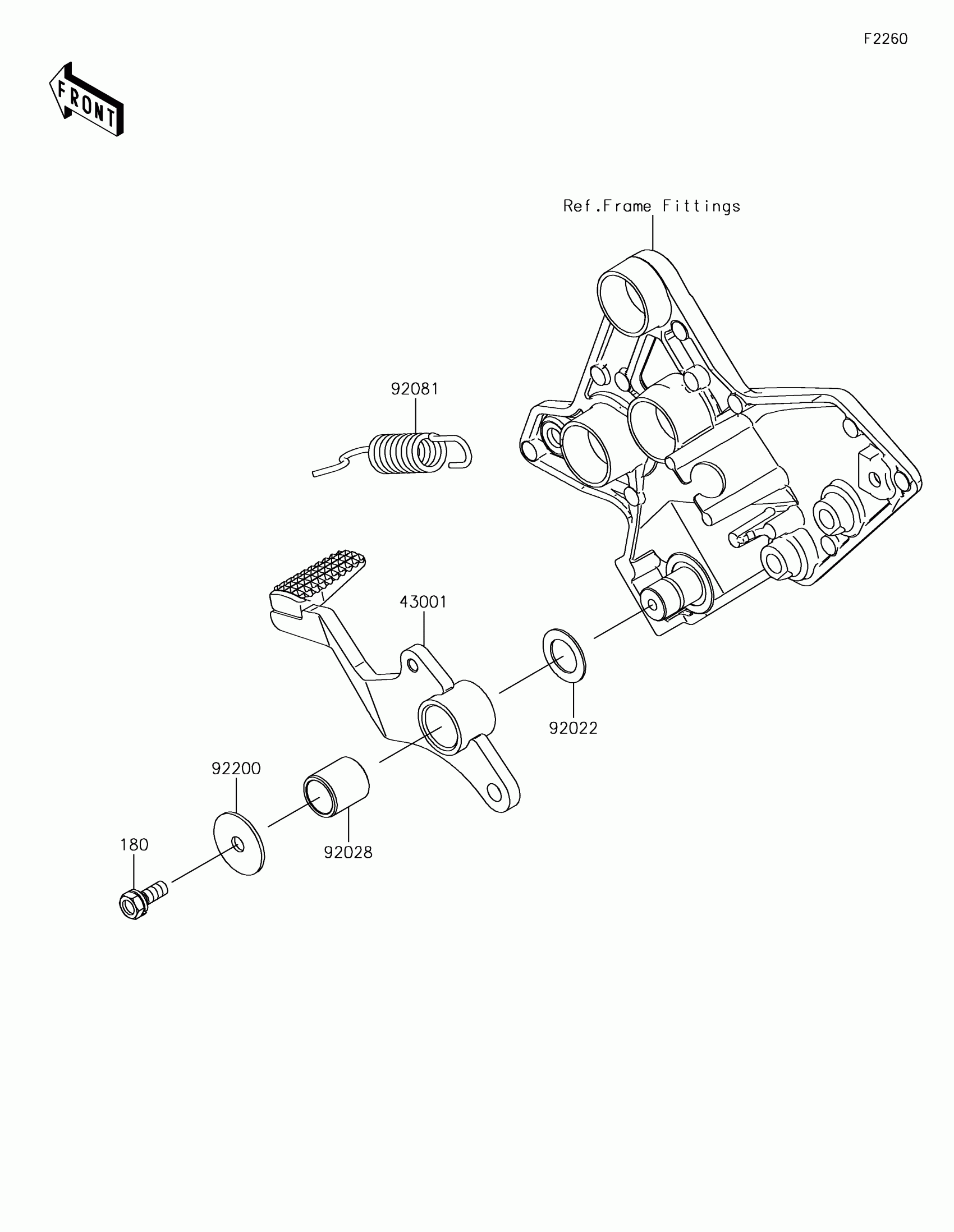

Find the part on the Brake Pedal diagram for your 2018 Kawasaki Versys® 1000 LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Kawasaki Versys® 1000 LT Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

180

BOLT-UPSET-WS,6X16

180BA0616

1
Out of stock

43001

LEVER-BRAKE,PEDAL

43001-0735

1
Out of stock

92022

WASHER,15.3X24X1

92022-326

1
Out of stock

92028

BUSHING,BRAKE PEDAL

92028-1282

1
Out of stock

92081

SPRING,BRAKE PEDAL

92081-1833

1
Out of stock

92200

WASHER,7X28X1.6

92200-0279

1
Out of stock
