2018 Kawasaki Versys® 1000 LT Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2018 Kawasaki Versys® 1000 LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

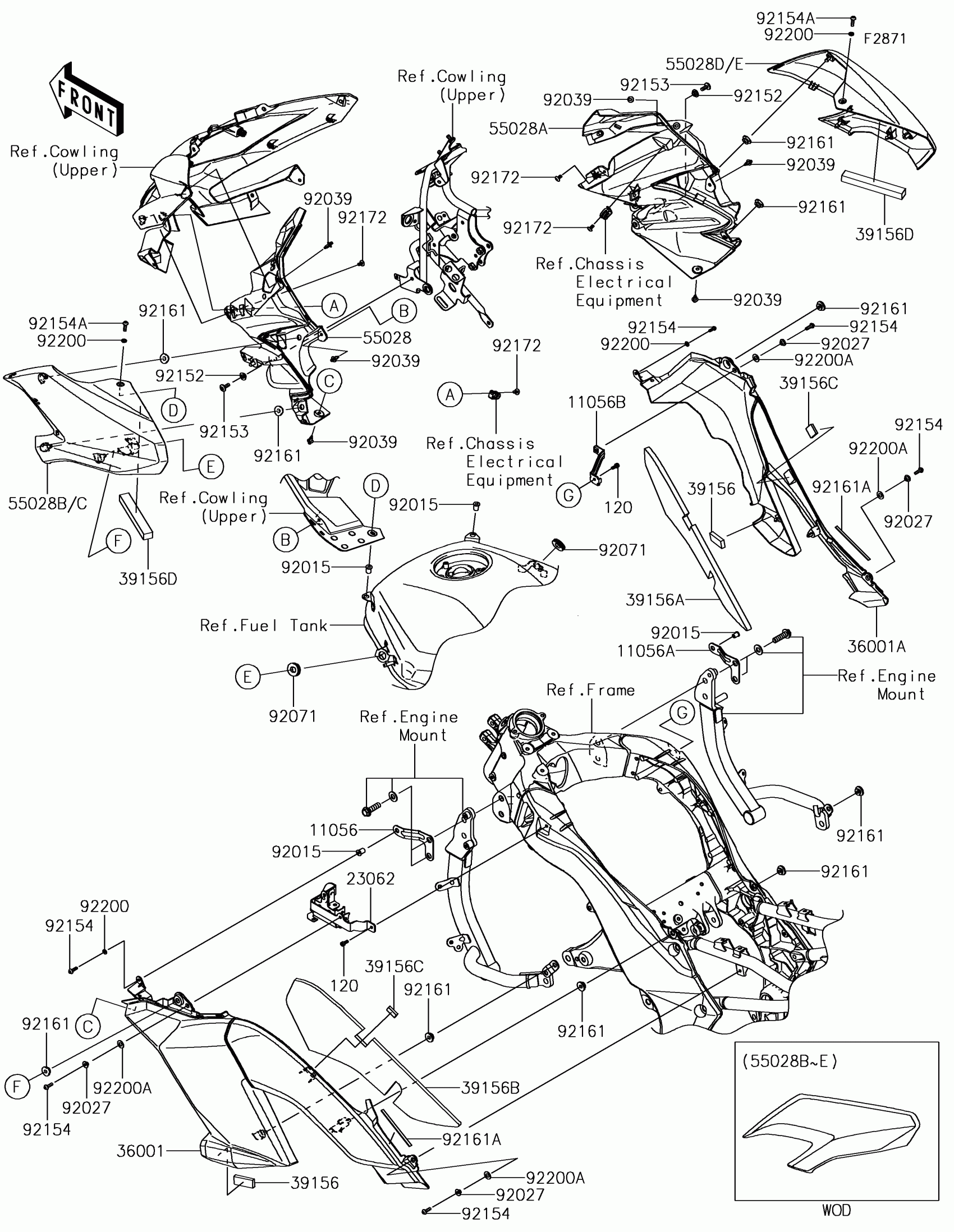

2018 Kawasaki Versys® 1000 LT Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,SIDE COVER,RH,FR

11056-1119

1
Out of stock

11056A

BRACKET,SIDE COVER,LH,FR

11056-1120

1
Out of stock

11056B

BRACKET,SIDE COVER,RH,CNT

11056-1122

1
Out of stock

120

BOLT-SOCKET,5X12

120CA0512

1
Out of stock

23062

BRACKET-COMP,SIDE,LH

23062-0826

1
Out of stock

36001

COVER-SIDE,KNEE GRIP,LH,F.BLK

36001-0570-6Z

1
Out of stock

36001A

COVER-SIDE,KNEE GRIP,RH,F.BLK

36001-0586-6Z

1
Out of stock

39156

PAD,45X18,T8

39156-0802

1
Out of stock

39156A

PAD,SIDE COVER,RH

39156-0808

1
Out of stock

39156B

PAD,SIDE COVER,LH

39156-0809

1
Out of stock

39156C

PAD,18X23,T5

39156-0810

1
Out of stock

39156D

PAD,20X135X15

39156-1877

1
Out of stock

55028

COWLING,UPP,INNER,LH

55028-0527

1
Out of stock

55028A

COWLING,UPP,INNER,RH

55028-0528

1
Out of stock

55028C

COWLING,UPP,SIDE,LH,C.F.RED

55028-0558-816

1
Out of stock

55028E

COWLING,UPP,SIDE,RH,C.F.RED

55028-0559-816

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92027

COLLAR

92027-1880

1
Out of stock

92039

RIVET

92039-0068

1
Out of stock

92071

GROMMET

92071-1043

1
Out of stock

92152

COLLAR,6.5X10X5.3

92152-1863

1
Out of stock

92153

BOLT,SOCKET,6X16

92153-1526

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154A

BOLT,SOCKET,5X20

92154-0829

1
Out of stock

92161

DAMPER

92161-1531

1
Out of stock

92161A

DAMPER,6X100X1

92161-1932

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92200

WASHER,5.2X10X1.0

92200-1820

1
Out of stock

92200A

WASHER,8.5X17X0.8

92200-2045

1
Out of stock
