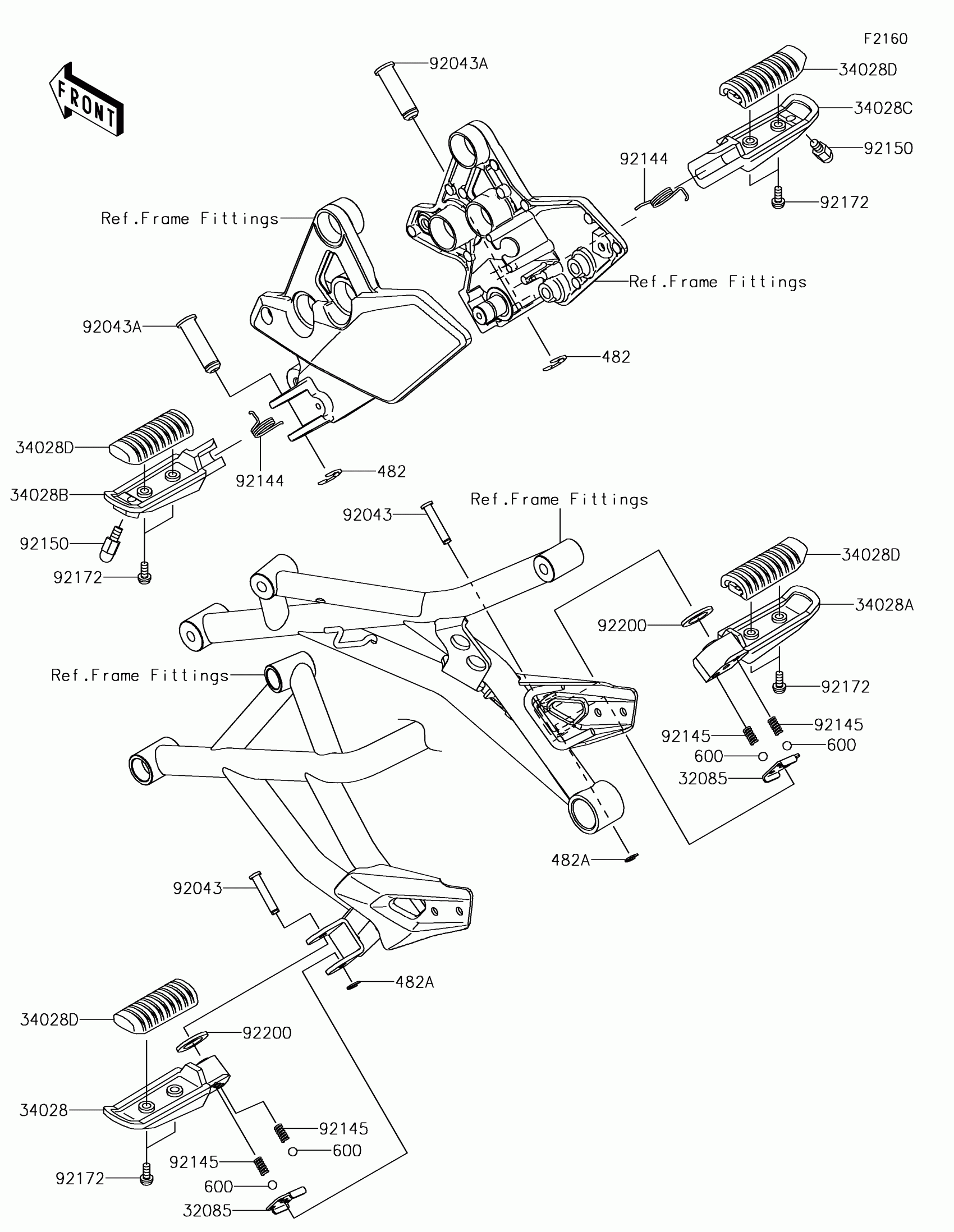

Kawasaki VERSYS® 1000 LT Footrests Diagram

Description

Price

32085

STOPPER,REAR STEP

32085-0047

$4.23

34028

STEP,RR,LH

34028-0314

$40.53

34028A

STEP,RR,RH

34028-0315

$40.53

34028B

STEP,FR,LH

34028-0352

$36.94

34028C

STEP,FR,RH

34028-0353

$36.94

34028D

STEP,RUBBER

34028-1430

$18.36

482

CIRCLIP-TYPE-E,10MM

482EA0100

$0.85

482A

CIRCLIP-TYPE-E

482EA5000

$1.04

600

BALL-STEEL,1/4

600A0800

$0.59

92043

PIN,6X31.1

92043-0742

$5.25

92043A

PIN,12X42.5

92043-1594

$5.25

92144

SPRING,STEP RETURN

92144-1567

$4.88

92145

SPRING

92145-1319

$1.33

92150

BOLT,BANK SENSOR

92150-1114

$10.93

92172

SCREW,5X14

92172-0976

$3.01

92200

WASHER,16X26X2.3

92200-0043

$5.84
