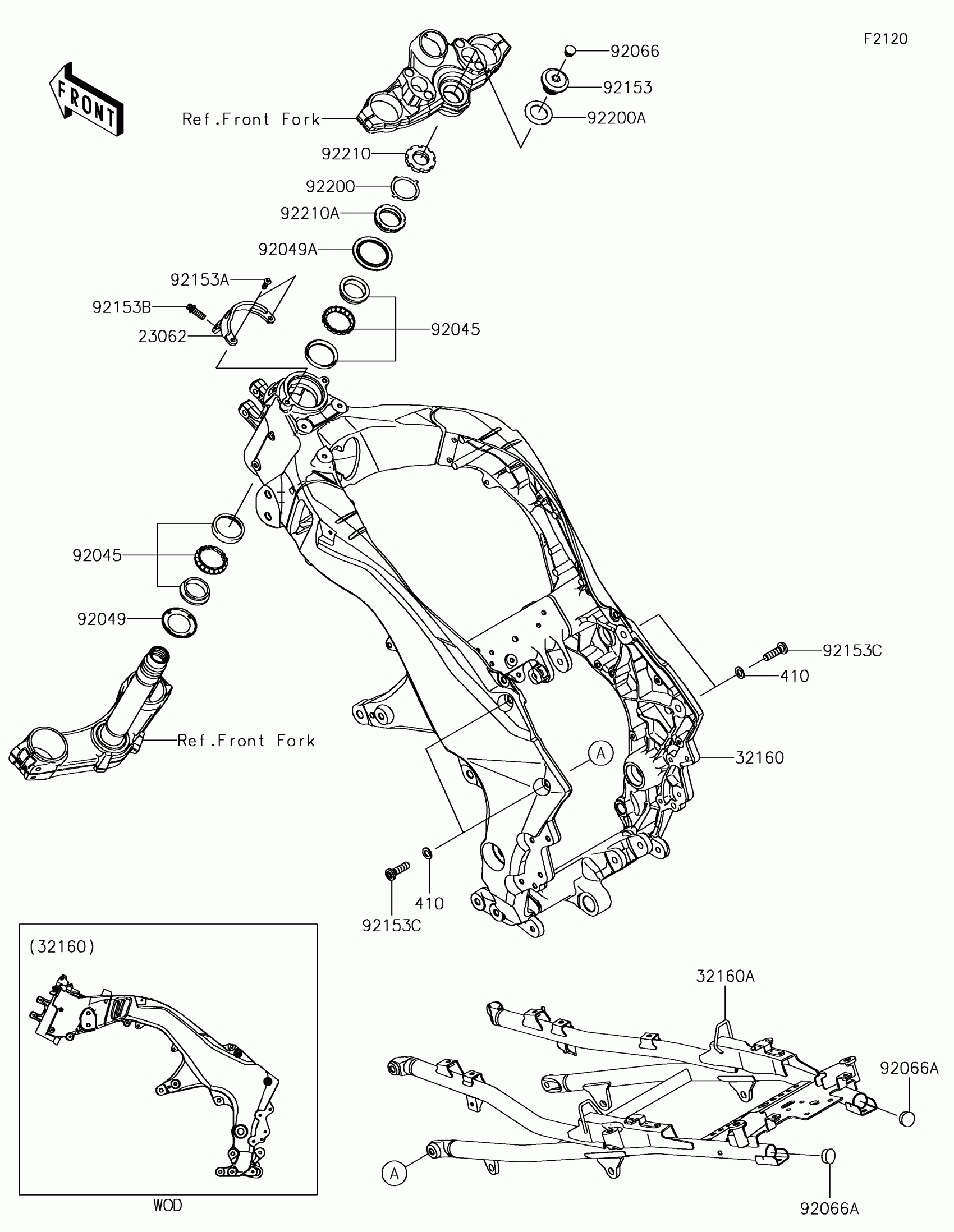

Kawasaki VERSYS® 1000 LT Frame Diagram

Description

Price

23062

BRACKET-COMP,HANDLE LOCK

23062-0829

$49.94

32160

FRAME-COMP,MAIN,F.S.BLACK

32160-0738-18R

$2,226.92

32160A

FRAME-COMP,RR,F.S.BLACK

32160-0853-18R

$778.44

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.44

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$40.52

92049

SEAL-OIL,DS35X55X4

92049-0022

$13.12

92049A

SEAL-OIL,43X55.5X8.6

92049-0742

$16.78

92066

PLUG

92066-0071

$2.31

92066A

PLUG

92066-0749

$2.71

92153

BOLT,26MM

92153-0474

$29.32

92153A

BOLT,TORX,6X16

92153-0967

$1.85

92153B

BOLT,TORX,8X22

92153-1273

$4.39

92153C

BOLT,SOCKET,10X35

92153-1904

$4.95

92200

WASHER

92200-0036

$3.81

92200A

WASHER,27X42X2.3

92200-0081

$2.84

92210

NUT,35MM

92210-0095

$13.77

92210A

NUT,35MM

92210-0823

$22.83
