2014 Kawasaki Versys® 1000 (European) Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2014 Kawasaki Versys® 1000 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

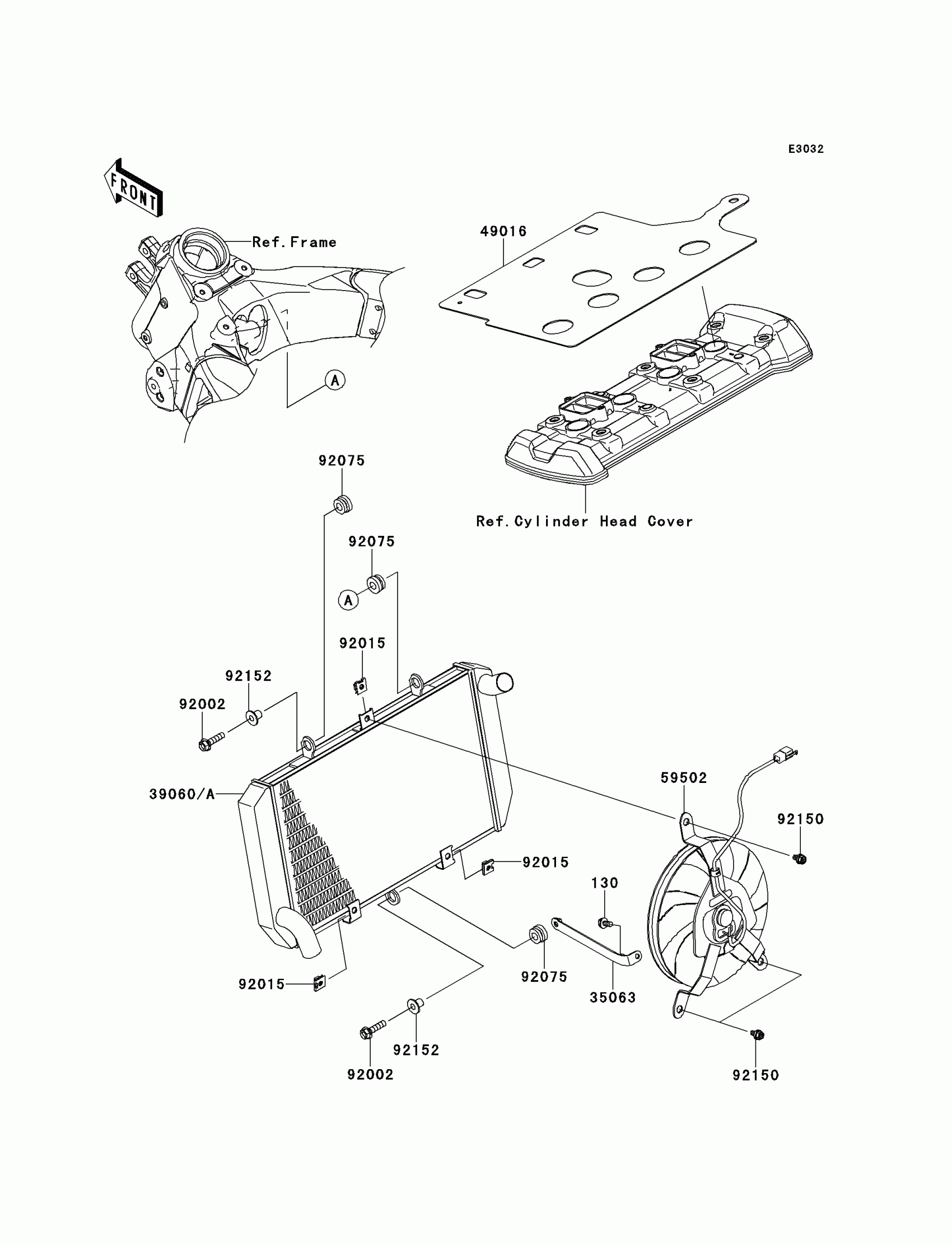

2014 Kawasaki Versys® 1000 (European) Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130CC0616

1
Out of stock

35063

STAY

35063-0761

1
Out of stock

39060

RADIATOR

39060-0072

1
Out of stock

49016

COVER-SEAL

49016-0587

1
Out of stock

59502

FAN-ASSY

59502-0556

1
Out of stock

92002

BOLT,FLANGED,6X25

92002-1086

1
Out of stock

92015

NUT

92015-1487

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92150

BOLT,6X12

92150-1186

1
Out of stock

92152

COLLAR

92152-1650

1
Out of stock
