2014 Kawasaki Versys® 1000 (European) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2014 Kawasaki Versys® 1000 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

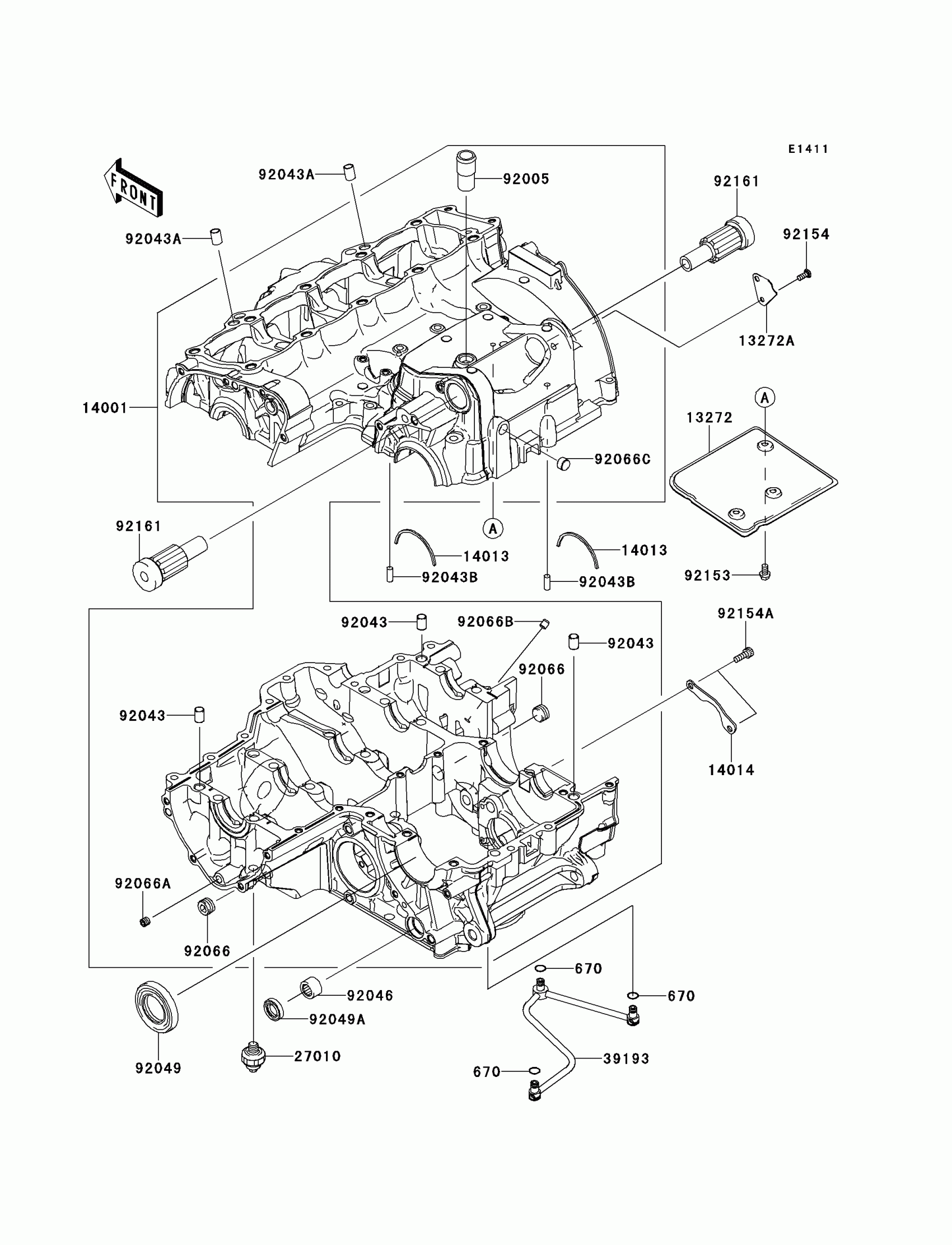

2014 Kawasaki Versys® 1000 (European) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING

670D1505

1
Out of stock

13272

PLATE,BREATHER,UPP

13272-0698

1
Out of stock

13272A

PLATE,BREATHER,SIDE

13272-0699

1
Out of stock

14001

SET-CRANKCASE

14001-0566

1
Out of stock

14013

RING-POSITION

14013-1051

1
Out of stock

14014

PLATE-POSITION

14014-0036

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

39193

PIPE-OIL

39193-0054

1
Out of stock

92005

FITTING,BREATHER

92005-1238

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92043A

PIN,8.2X10X14

92043-1264

1
Out of stock

92043B

PIN,6X16

92043-1690

1
Out of stock

92046

BEARING-NEEDLE,HK1412FM

92046-0043

1
Out of stock

92049

SEAL-OIL,TC32578

92049-1474

1
Out of stock

92049A

SEAL-OIL,TC14245

92049-1520

1
Out of stock

92066

PLUG,PT3/8X10

92066-0003

1
Out of stock

92066A

PLUG

92066-0158

1
Out of stock

92066B

PLUG,OIL LINE,7.2X8

92066-1012

1
Out of stock

92066C

PLUG

92066-1110

1
Out of stock

92153

BOLT,6X10

92153-0381

1
Out of stock

92154

BOLT,TORX,5X12

92154-0299

1
Out of stock

92154A

BOLT,SOCKET,6X16

92154-0484

1
Out of stock

92161

DAMPER

92161-0801

1
Out of stock
