2014 Kawasaki Versys® 1000 (European) Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2014 Kawasaki Versys® 1000 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

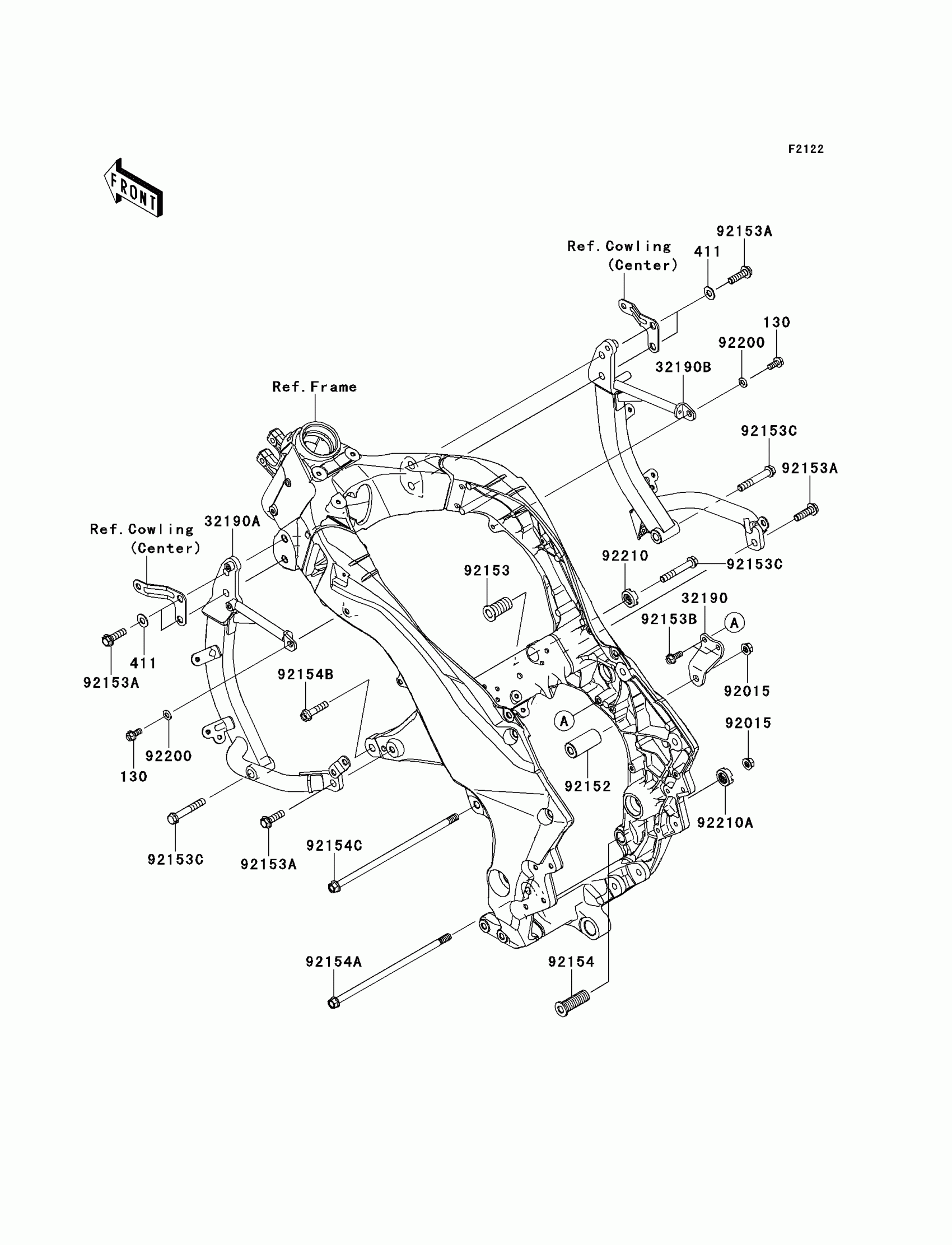

2014 Kawasaki Versys® 1000 (European) Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X18

130CA0818

1

$2.10

In stock

411

WASHER-PLAIN,10MM

411AA1000

1

$0.93

In stock

32190

1

$10.69

In stock

32190A

BRACKET-ENGINE,LH,S.BLACK

32190-0625-18R

1
Out of stock

32190B

BRACKET-ENGINE,RH,S.BLACK

32190-0626-18R

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92152

COLLAR,11X26X56.5

92152-0853

1

$14.78

In stock

92153

BOLT,SOCKET,20X43

92153-0488

1
Out of stock

92153A

BOLT,FLANGED,10X35

92153-0802

1
Out of stock

92153B

BOLT,FLANGED,8X20

92153-1554

1
Out of stock

92153C

BOLT,FLANGED,10X65

92153-1931

1

$6.16

In stock

92154

1

$29.09

In stock

92154A

BOLT,FLANGED,10X255

92154-0827

1

$23.26

In stock

92154B

BOLT,FLANGED,10X54

92154-0903

1

$7.32

In stock

92154C

BOLT,FLANGED,10X270

92154-0906

1

$20.05

In stock

92200

WASHER,8.4X16X1.6

92200-0807

1
Out of stock

92210

NUT,20MM

92210-0591

1
Out of stock

92210A

NUT,18MM

92210-1203

1
Out of stock
