2016 Kawasaki Versys® 1000 ABS Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2016 Kawasaki Versys® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

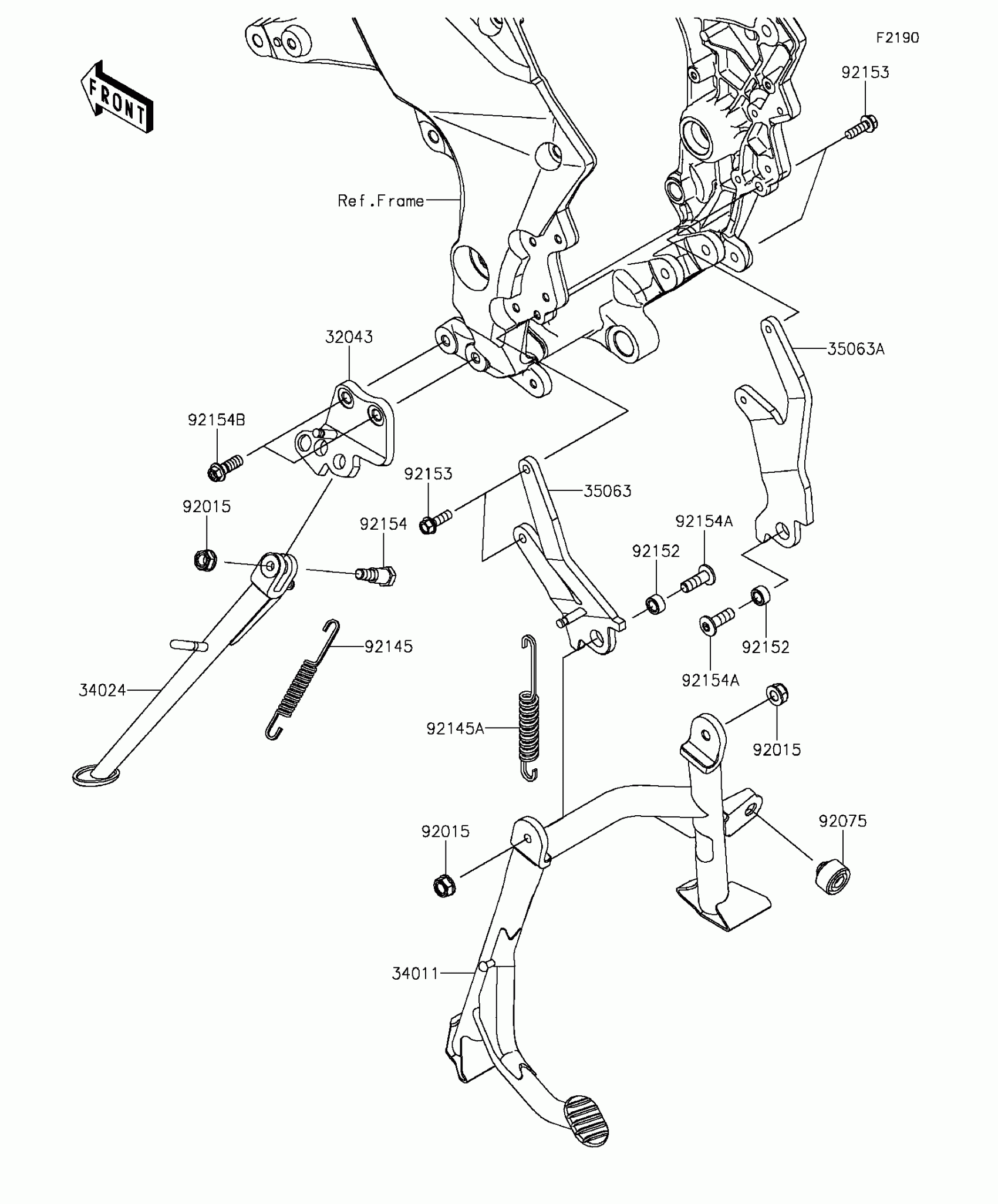

2016 Kawasaki Versys® 1000 ABS Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

BRACKET-STAND

32043-0571

1

$105.02

In stock

34011

STAND-CENTER

34011-0030

1

$261.10

In stock

34024

STAND-SIDE

34024-0113

1

$110.63

In stock

35063

1

$104.21

In stock

35063A

1

$85.14

In stock

92015

1

$7.86

In stock

92075

DAMPER

92075-015

1

$3.97

In stock

92145

SPRING,SIDE STAND

92145-0562

1

$11.19

In stock

92145A

SPRING,CENTER STAND

92145-1550

1

$23.98

In stock

92152

COLLAR,10X17X9

92152-1906

1
Out of stock

92153

BOLT,FLANGED,8X25

92153-1768

1

$3.51

In stock

92154

BOLT,10X39

92154-0971

1

$8.37

In stock

92154A

BOLT,SOCKET,10X30

92154-1665

1

$4.75

In stock

92154B

BOLT,FLANGED,10X28

92154-1705

1

$3.61

In stock
