2016 Kawasaki Versys® 1000 ABS Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2016 Kawasaki Versys® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

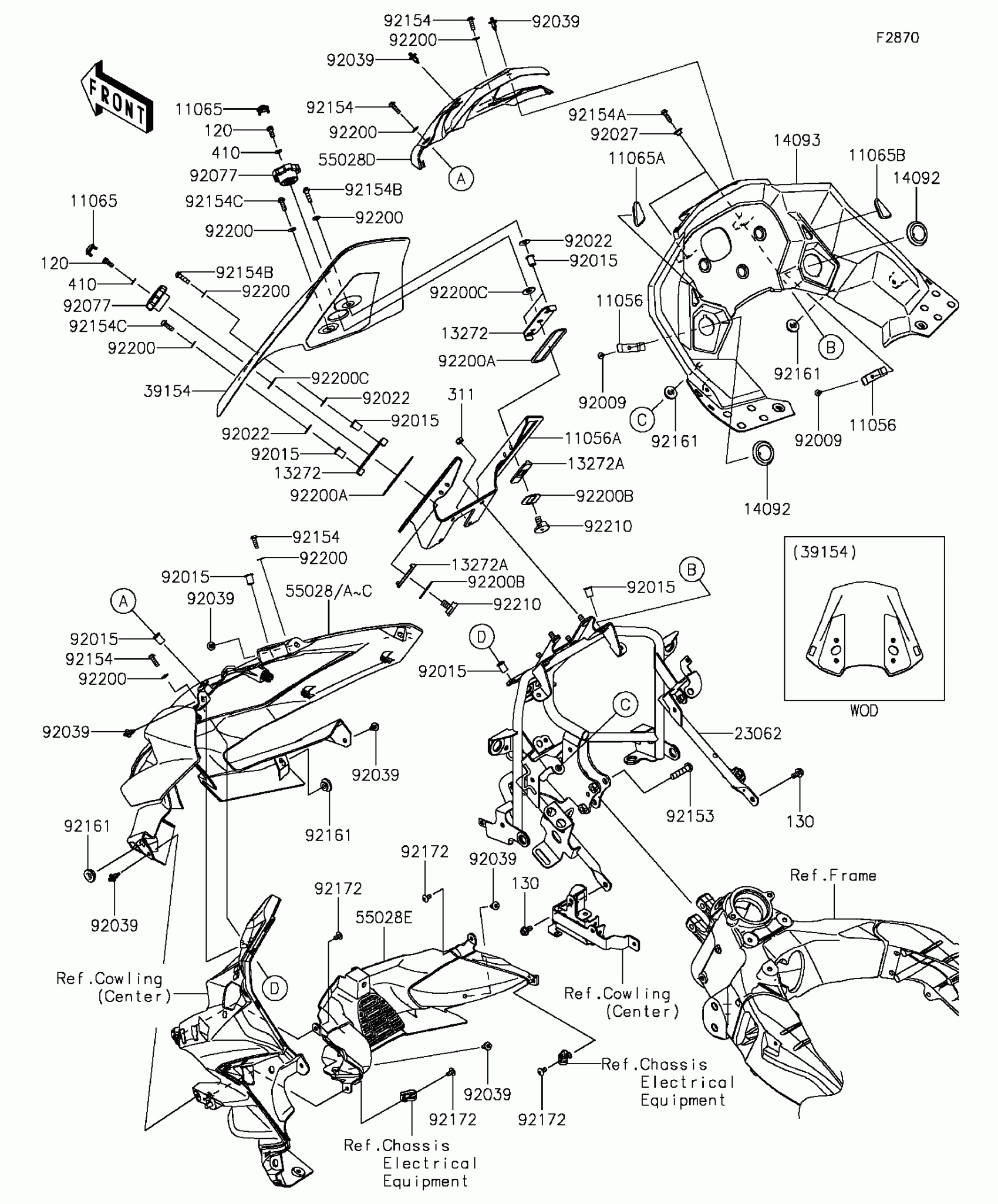

2016 Kawasaki Versys® 1000 ABS Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-0373

1
Out of stock

11056A

BRACKET,WINDSHIELD

11056-4218

1
Out of stock

11065

CAP,KNOB

11065-0734

1
Out of stock

11065A

CAP,METER COVER,LH

11065-0881

1
Out of stock

11065B

CAP,METER COVER,RH

11065-0882

1
Out of stock

120

BOLT-SOCKET,5X12

120CA0512

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1
Out of stock

13272

PLATE,FRONT

13272-1832

1
Out of stock

13272A

PLATE,BACK

13272-1925

1
Out of stock

14092

COVER,DC SOCKET

14092-0214

1
Out of stock

14093

COVER,METER

14093-0130

1
Out of stock

23062

BRACKET-COMP,COWLING STAY

23062-0857

1
Out of stock

311

NUT-HEX,6MM

311BA0600

1
Out of stock

39154

WINDSHIELD

39154-0336

1
Out of stock

410

WASHER-PLAIN-SMALL

410AA0500

1
Out of stock

55028A

COWLING,UPP,C.L.GREEN

55028-0524-51P

1
Out of stock

55028C

COWLING,UPP,M.F.R.TITANIUM

55028-0524-725

1
Out of stock

55028D

COWLING,UPP,CNT

55028-0525

1
Out of stock

55028E

COWLING,UPP,INNER,LWR

55028-0526

1
Out of stock

92009

SCREW,TAPPING,4X8

92009-1155

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92022

WASHER,6X16X1

92022-1818

1
Out of stock

92027

COLLAR

92027-1880

1
Out of stock

92039

RIVET

92039-0068

1
Out of stock

92077

KNOB,ADJUSTERS

92077-0703

1
Out of stock

92153

BOLT,SOCKET,8X35

92153-0419

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0026

1
Out of stock

92154A

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154B

BOLT,SOCKET,5X20

92154-0919

1
Out of stock

92154C

BOLT,SOCKET,5X16

92154-1701

1
Out of stock

92161

DAMPER

92161-1531

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92200A

WASHER

92200-0801

1
Out of stock

92200B

WASHER,23.5X32X1

92200-1706

1
Out of stock

92200C

WASHER,8.2X20X1

92200-1751

1
Out of stock

92210

NUT,5MM

92210-0916

1
Out of stock
