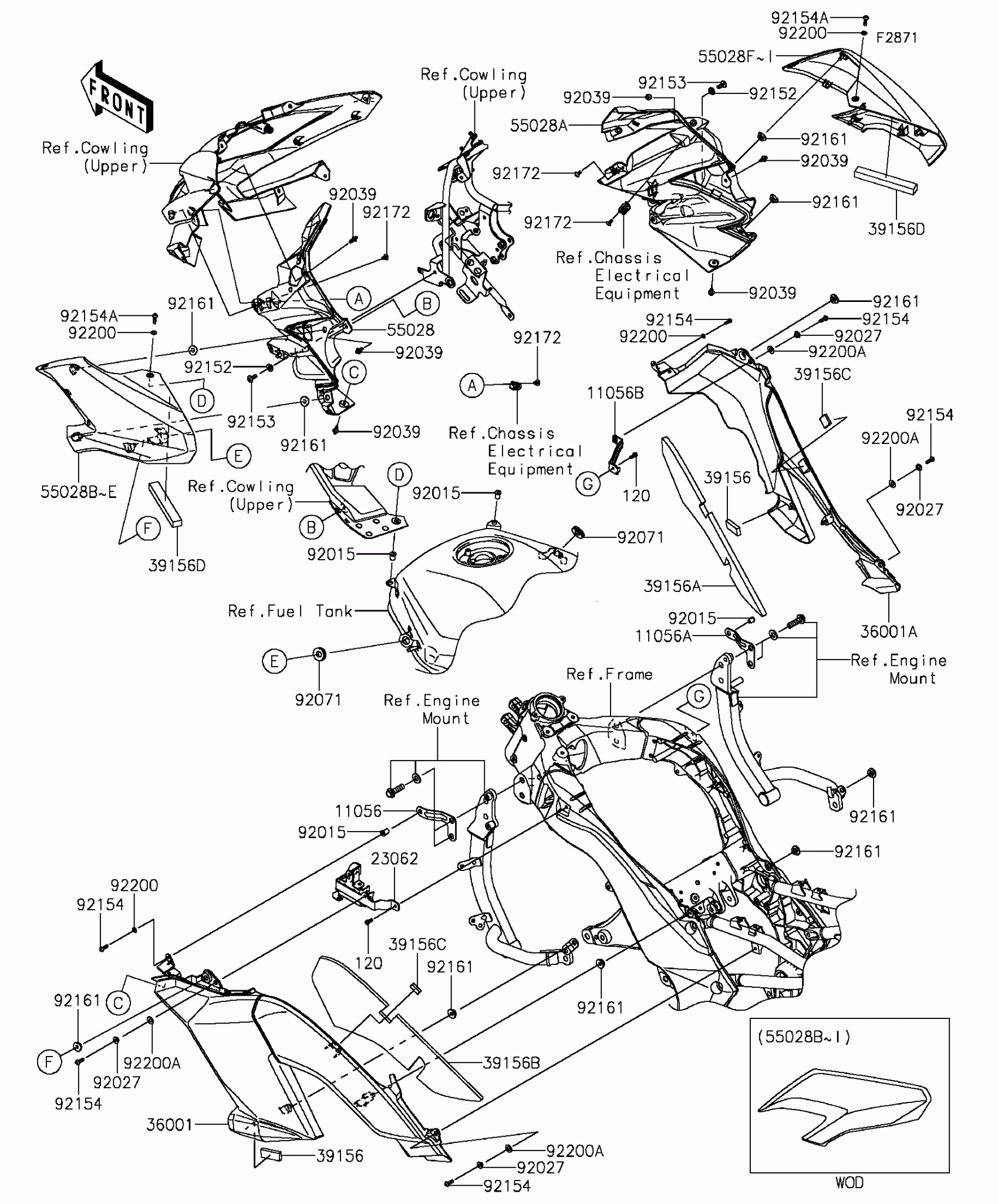

Kawasaki Versys® 1000 ABS Cowling(Center) Diagram

#

Description
Price

11056

BRACKET,SIDE COVER,RH,FR

11056-1119

$5.76

11056A

BRACKET,SIDE COVER,LH,FR

11056-1120

$5.76

11056B

BRACKET,SIDE COVER,RH,CNT

11056-1122

$7.83

120

BOLT-SOCKET,5X12

120CA0512

$1.19

23062

BRACKET-COMP,SIDE,LH

23062-0826

$61.89

36001

COVER-SIDE,KNEE GRIP,LH,F.BLK

36001-0570-6Z

$123.60

36001A

COVER-SIDE,KNEE GRIP,RH,F.BLK

36001-0586-6Z

$123.60

39156

PAD,45X18,T8

39156-0802

$1.64

39156A

PAD,SIDE COVER,RH

39156-0808

$21.80

39156B

PAD,SIDE COVER,LH

39156-0809

$21.80

39156C

PAD,18X23,T5

39156-0810

$1.64

39156D

PAD,20X135X15

39156-1877

$5.19

55028

COWLING,UPP,INNER,LH

55028-0527

$108.11

55028A

COWLING,UPP,INNER,RH

55028-0528

$108.11

55028D

COWLING,UPP,SIDE,LH,C.L.GREEN

55028-0558-51P

$263.31

55028E

COWLING,UPP,SIDE,LH,TITANIUM

55028-0558-725

$263.31

55028H

COWLING,UPP,SIDE,RH,C.L.GREEN

55028-0559-51P

$263.31

55028I

COWLING,UPP,SIDE,RH,TITANIUM

55028-0559-725

$263.31

92015

NUT,WELL,5MM

92015-1757

$5.58

92027

COLLAR

92027-1880

$4.17

92039

RIVET

92039-0068

$2.09

92071

GROMMET

92071-1043

$3.91

92152

COLLAR,6.5X10X5.3

92152-1863

$5.66

92153

BOLT,SOCKET,6X16

92153-1526

$1.32

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,SOCKET,5X20

92154-0829

$1.89

92161

DAMPER

92161-1531

$2.11

92172

SCREW,TAPPING,5X10

92172-0262

$1.04

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

92200A

WASHER,8.5X17X0.8

92200-2045

$1.20
