2016 Kawasaki Versys® 1000 ABS Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2016 Kawasaki Versys® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

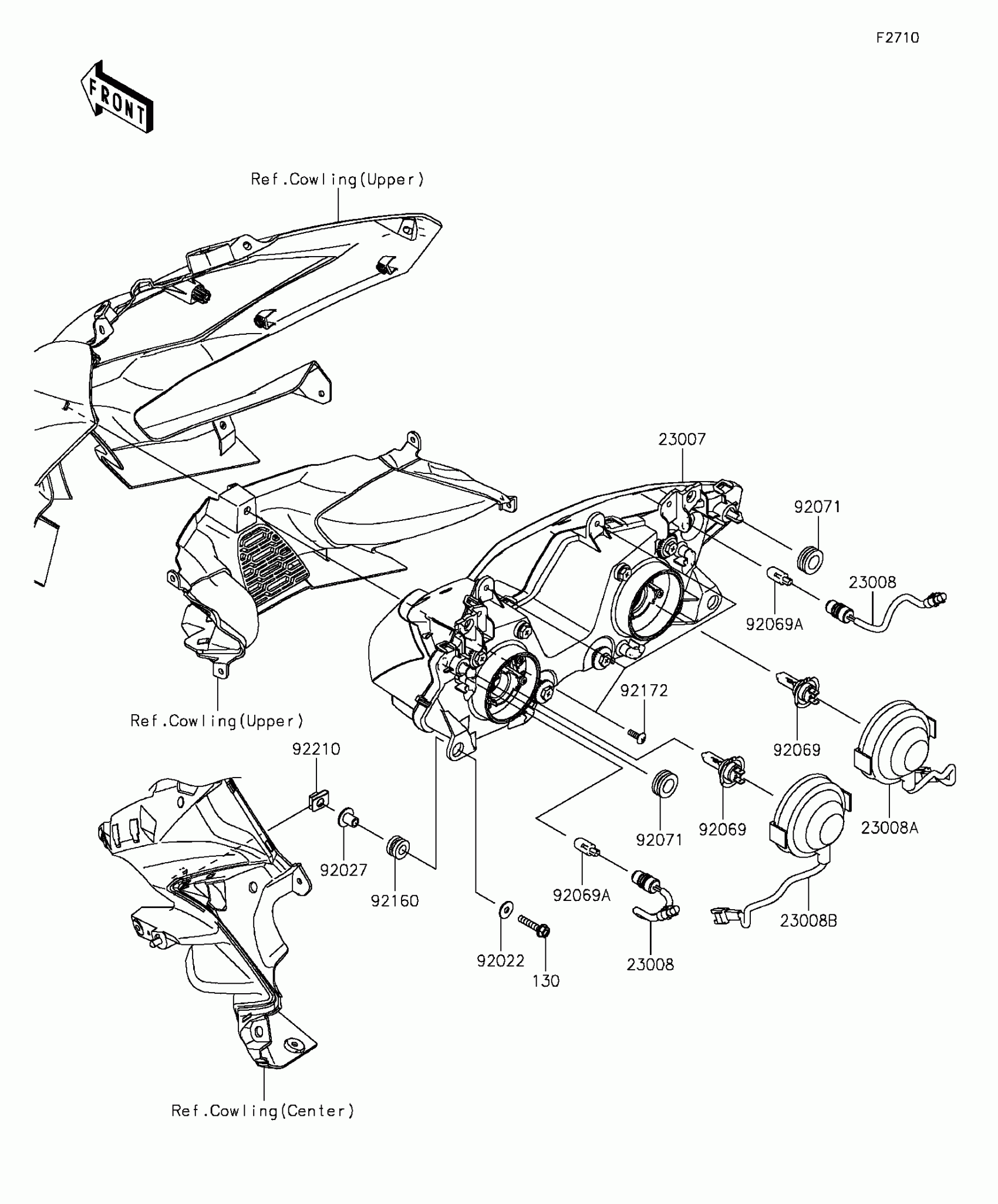

2016 Kawasaki Versys® 1000 ABS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X30

130BB0630

1

$3.52

In stock

23007

LENS-COMP

23007-0174

1

$369.16

In stock

23008

1

$84.47

In stock

23008A

SOCKET-ASSY,LO

23008-0160

1

$50.60

In stock

23008B

SOCKET-ASSY,HI

23008-0161

1

$50.60

In stock

92022

WASHER,6.2X18X1.2

92022-1369

1

$3.56

In stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92069

BULB,12V 55W,H7

92069-0053

1

$39.00

In stock

92069A

BULB,12V 5W

92069-1016

1

$5.16

In stock

92071

GROMMET

92071-1131

1

$6.18

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92172

SCREW,TAPPING,5X16

92172-0175

1

$1.53

In stock

92210

NUT

92210-0130

1
Out of stock
