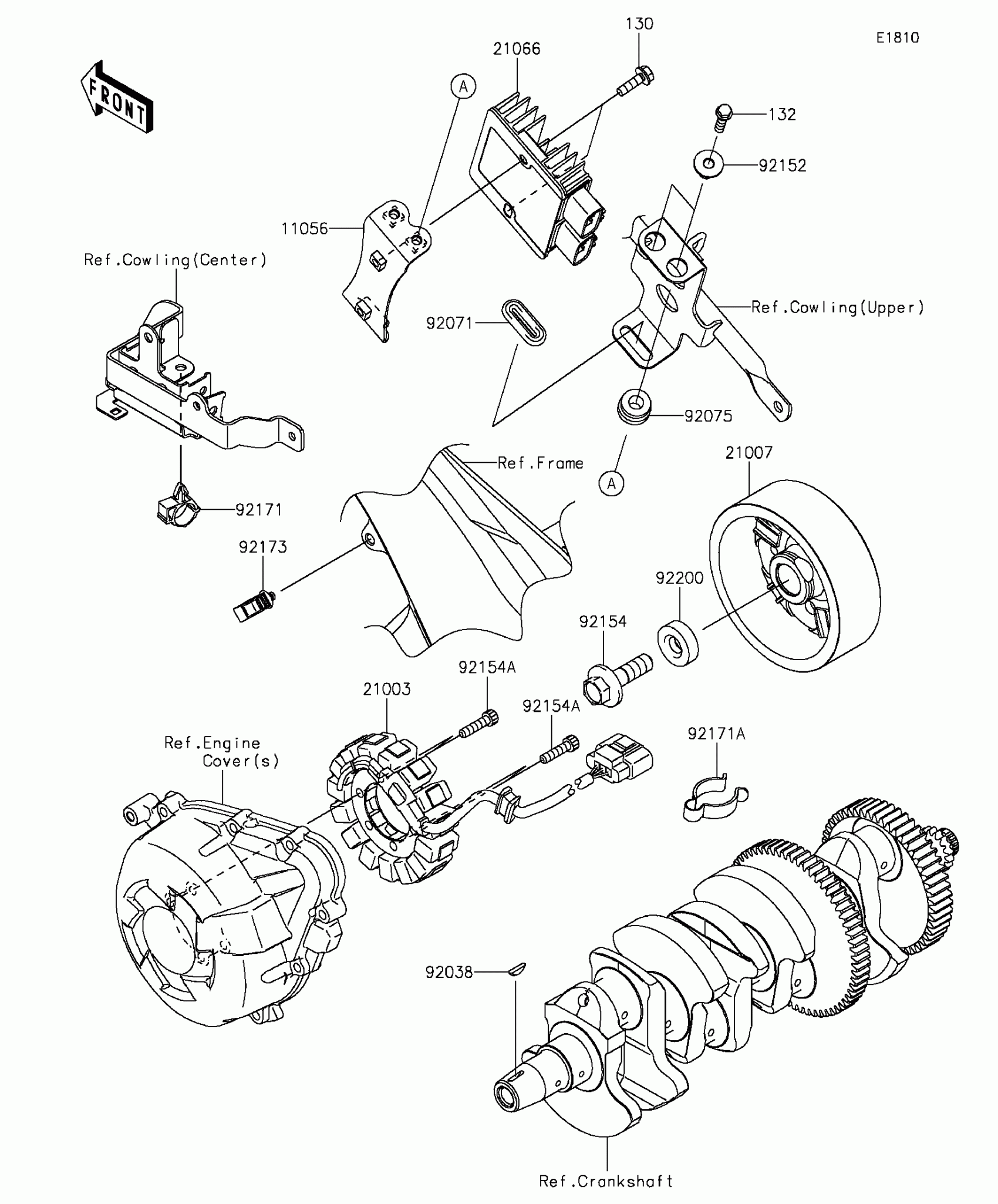

Kawasaki Versys® 1000 ABS Generator Diagram

Description

Price

11056

BRACKET,REGULATOR

11056-4211

$12.22

130

BOLT-FLANGED,6X20

130BA0620

$1.28

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

21003

STATOR

21003-0155

$835.00

21007

ROTOR

21007-0609

$626.07

21066

REGULATOR-VOLTAGE

21066-0737

$362.74

92038

KEY

92038-1060

$7.63

92071

GROMMET

92071-1187

$3.78

92075

DAMPER,RUBBER

92075-1123

$3.81

92152

COLLAR

92152-0666

$5.05

92154

BOLT,FLANGED,12X40

92154-0347

$12.12

92154A

BOLT,SOCKET,6X25

92154-0477

$1.43

92171

CLAMP,BRAKE HOSE

92171-0316

$2.93

92171A

CLAMP,CABLE

92171-1283

$10.51

92173

CLAMP,HOLDER CLIP

92173-0868

$2.11

92200

WASHER,12X34X9

92200-0369

$11.42
