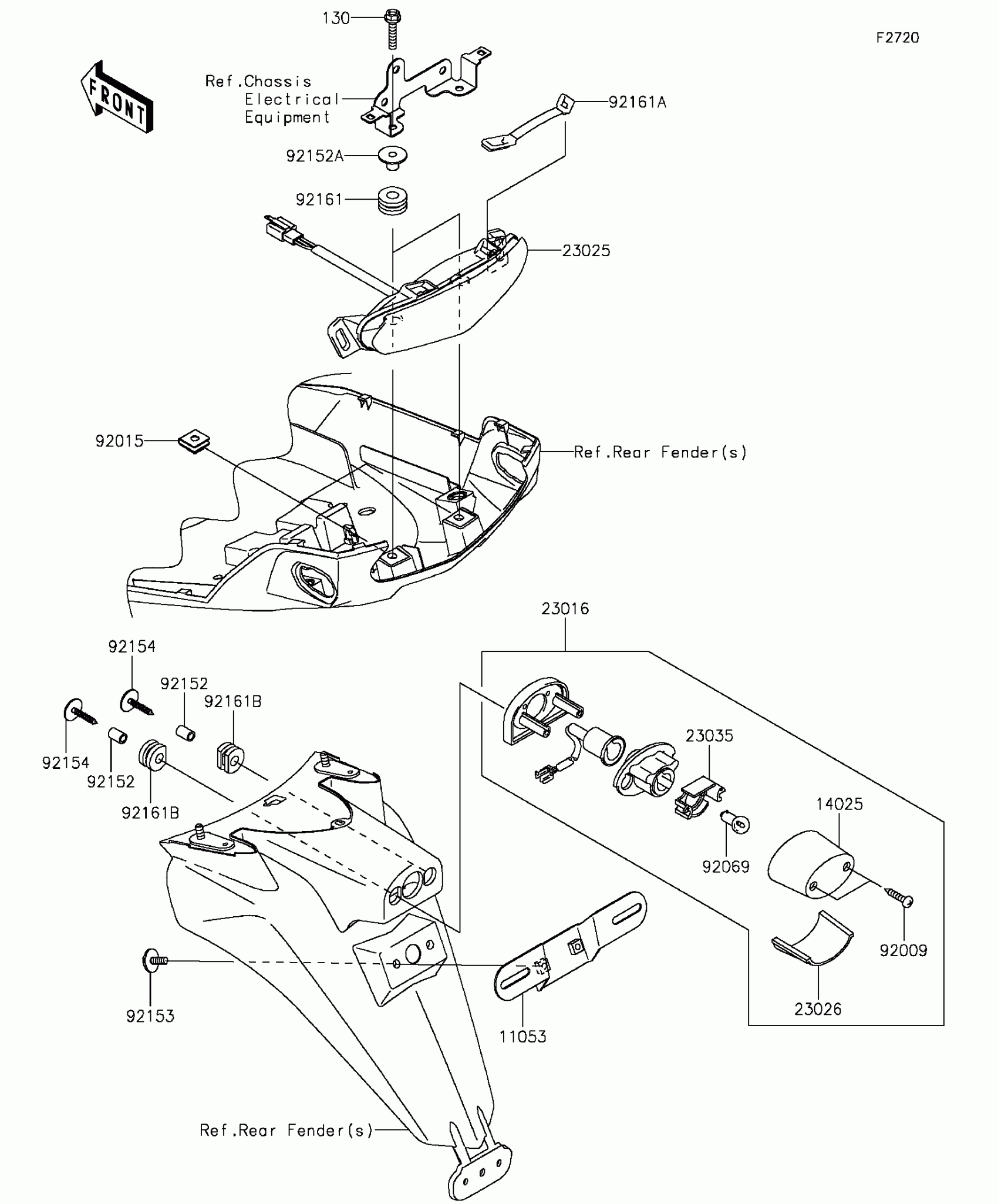

Kawasaki Versys® 1000 ABS Taillight(s) Diagram

Description

Price

11053

BRACKET,LICENSE

11053-0400

$12.55

130

BOLT-FLANGED,6X30

130BA0630

$1.13

14025

COVER,LICENSE LAMP

14025-1725

$17.20

23016

LAMP-ASSY,LICENSE

23016-0003

$70.19

23025

LAMP-TAIL

23025-0319

Unavailable

23026

LENS,LICENSE LAMP

23026-0021

Unavailable

23035

REFLECTOR-LAMP,LICENSE

23035-1066

$17.92

92009

SCREW,TAPPING,4X20

92009-1378

$3.68

92015

NUT,6MM

92015-1094

$6.55

92069

BULB,12V 5W

92069-1055

$3.95

92152

COLLAR,6X9X13.3

92152-0617

$2.82

92152A

COLLAR

92152-1603

$5.81

92153

BOLT,6X16

92153-1423

$1.04

92154

BOLT,TAPPING,5X30

92154-1042

$1.66

92161

DAMPER

92161-0163

$4.39

92161A

DAMPER,TAIL LAMP UPP

92161-0625

$4.92

92161B

DAMPER

92161-0776

$4.18
