2016 Kawasaki Versys® 1000 ABS Front Master Cylinder Diagram

← All diagrams

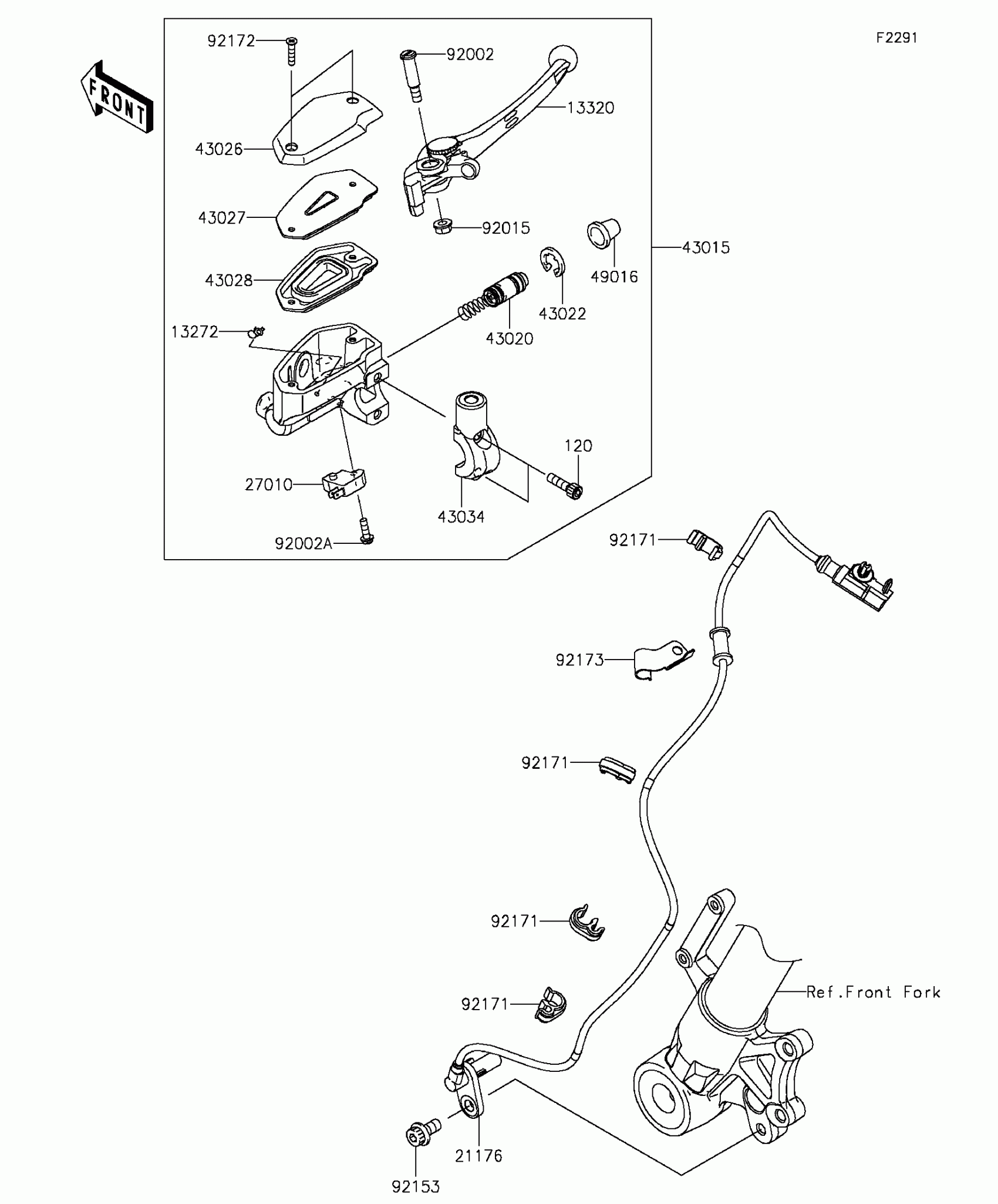

Find the part on the Front Master Cylinder diagram for your 2016 Kawasaki Versys® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Versys® 1000 ABS Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X22

120CB0622

1
Out of stock

13272

PLATE

13272-0573

1

$7.47

In stock

13320

1

$73.31

In stock

21176

SENSOR,FR WHEEL SPEED

21176-0801

1
Out of stock

27010

SWITCH,BRAKE

27010-0025

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0630

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0008

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-0019

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-0008

1
Out of stock

43028

DIAPHRAGM

43028-0015

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0049

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92002

BOLT,LEVER SET,BLACK

92002-1322

1
Out of stock

92002A

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92153

BOLT,SOCKET,8X16

92153-0327

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-1819

1
Out of stock

92172

SCREW,4X20

92172-0320

1
Out of stock

92173

CLAMP

92173-0801

1
Out of stock
