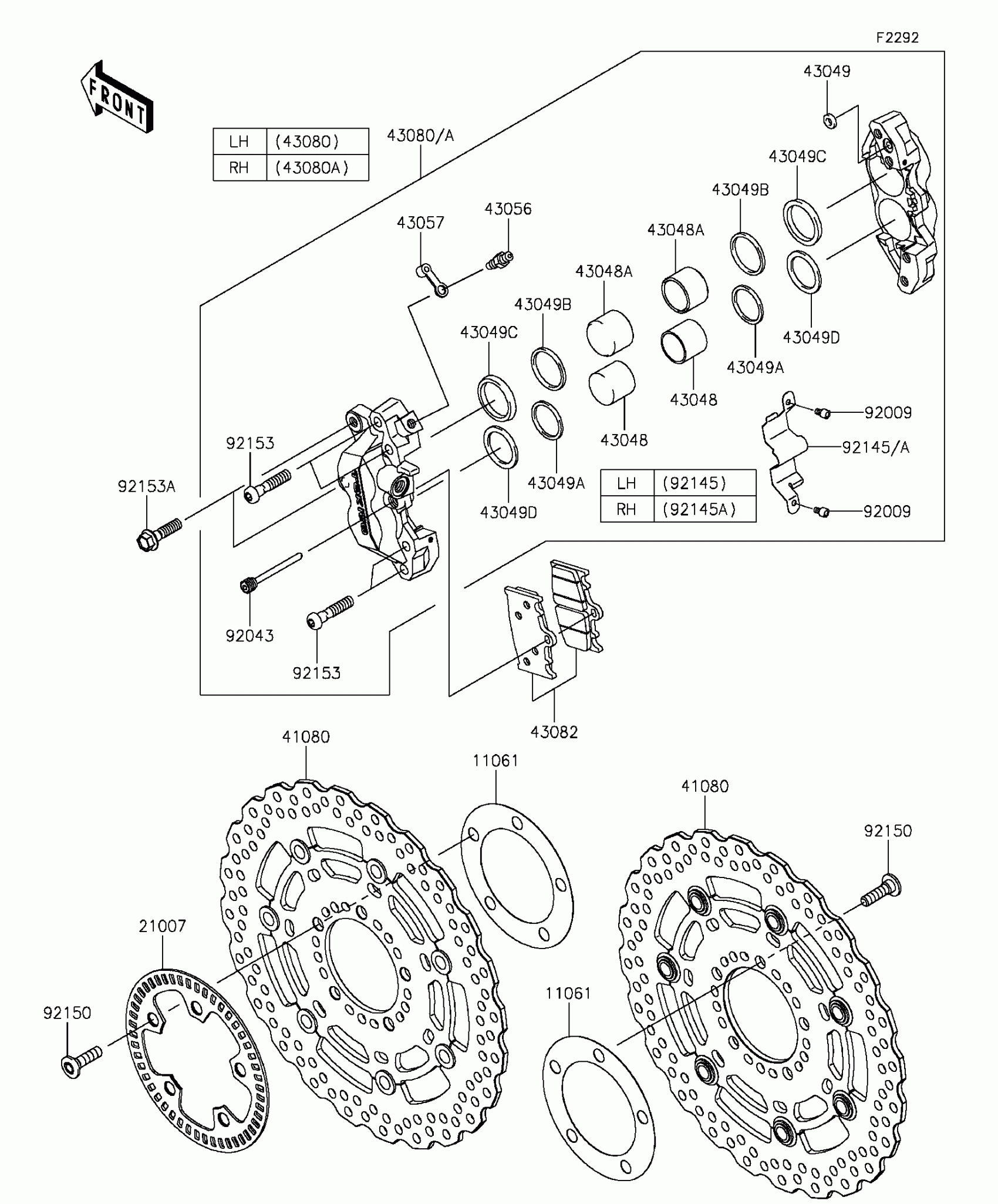

Kawasaki Versys® 1000 ABS Front Brake Diagram

#

Description
Price

11061

GASKET,DISC PLATE

11061-0029

$13.73

21007

ROTOR,SENSOR,FR

21007-0140

$91.38

41080

DISC,FR,BLACK/SILVER

41080-0627-11I

$336.04

43048

PISTON-CALIPER,DIA=26.97

43048-1078

$67.29

43048A

PISTON-CALIPER,DIA=30.2

43048-1098

$33.98

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$4.64

43049A

PACKING,PISTON

43049-1055

$8.59

43049B

PACKING

43049-1068

$7.48

43049C

PACKING,PISTON SEAL

43049-1092

$7.91

43049D

PACKING,PISTON SEAL

43049-1096

$9.44

43056

BREATHER-BRAKE

43056-0007

$22.39

43057

CAP-BREATHER

43057-003

$1.74

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0073-DJ

$393.36

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0074-DJ

$393.36

43082

PAD-ASSY-BRAKE

43082-0153

$89.58

92009

BOLT,SOCKET,4X6

92009-1758

$1.96

92043

PIN,PAD

92043-1683

$3.75

92145

SPRING,COVER,LH

92145-1503

$28.82

92145A

SPRING,COVER,RH

92145-1504

$28.82

92150

BOLT,SOCKET,8X30

92150-1771

$3.57

92153

BOLT,SOCKET,8X40

92153-0360

$4.20

92153A

BOLT,FLANGED,8X30

92153-1089

$1.73
