2016 Kawasaki Versys® 1000 ABS Brake Piping Diagram

← All diagrams

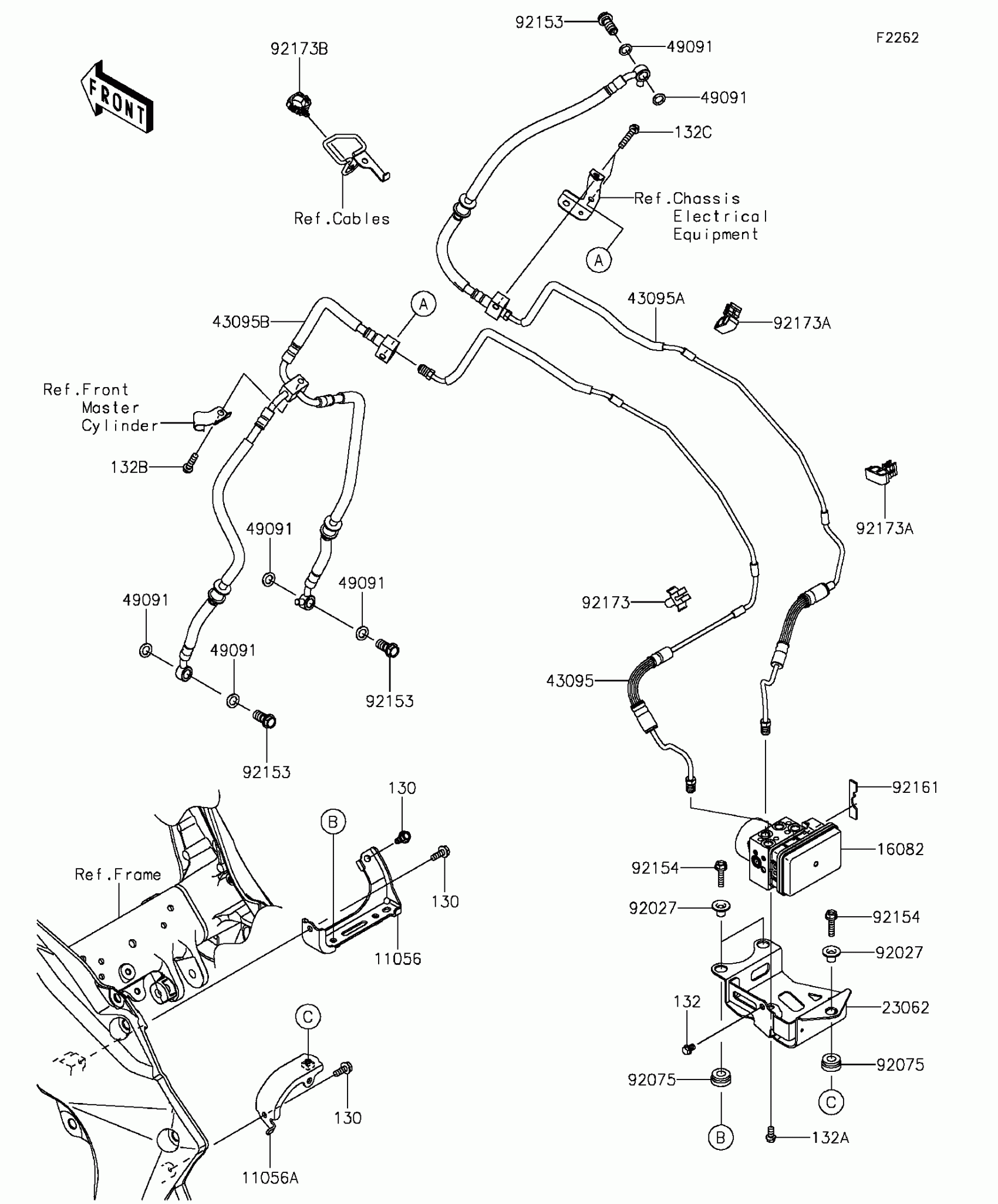

Find the part on the Brake Piping diagram for your 2016 Kawasaki Versys® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Versys® 1000 ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,REGULATOR

11056-0169

1

$23.63

In stock

11056A

BRACKET

11056-2098

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

132

1

$2.05

In stock

132A

1

$1.12

In stock

132B

1

$2.29

In stock

132C

1

$2.17

In stock

16082

PUMP-ASSY-OIL,ABS

16082-0738

1
Out of stock

23062

BRACKET-COMP,ABS UNIT

23062-0824

1
Out of stock

43095

HOSE-BRAKE,FR CALIPER-HU

43095-0723

1
Out of stock

43095A

HOSE-BRAKE,FR M/CYL.-ABS HU

43095-0836

1
Out of stock

43095B

HOSE-BRAKE,HEAD PIPE-CALIPER

43095-0837

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92154

BOLT,FLANGED,6X25

92154-0498

1
Out of stock

92161

DAMPER

92161-1673

1

$1.69

In stock

92173

CLAMP

92173-0088

1
Out of stock

92173A

CLAMP,CLIP

92173-0799

1
Out of stock

92173B

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock
