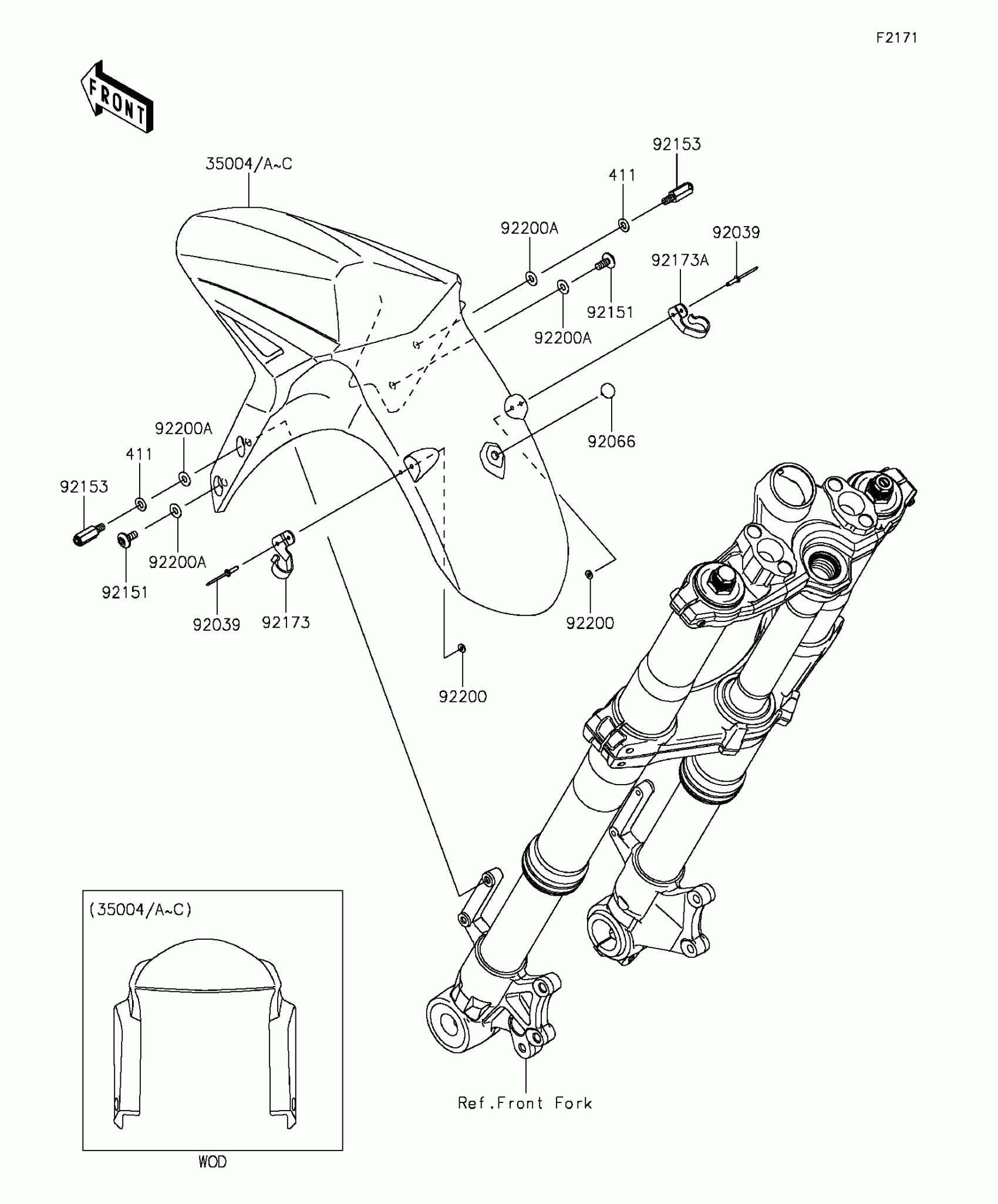

Find the part on the Front Fender diagram for your 2016 Kawasaki Versys® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Versys® 1000 ABS Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004B

FENDER-FRONT,C.L.GREEN

35004-0340-51P

1
Out of stock

35004C

FENDER-FRONT,M.F.R.TITANIUM

35004-0340-725

1
Out of stock

411

WASHER-PLAIN,6MM

411AB0600

1
Out of stock

92039

RIVET

92039-0705

1
Out of stock

92066

PLUG,ANCHOR CLIP

92066-0741

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92153

BOLT,6MM

92153-1533

1
Out of stock

92173

CLAMP,FR FENDER,LH

92173-1312

1
Out of stock

92173A

CLAMP,FR FENDER,RH

92173-1313

1
Out of stock

92200

WASHER,3.5X8X1

92200-1251

1
Out of stock

92200A

WASHER,6.5X14X1

92200-1388

1
Out of stock
