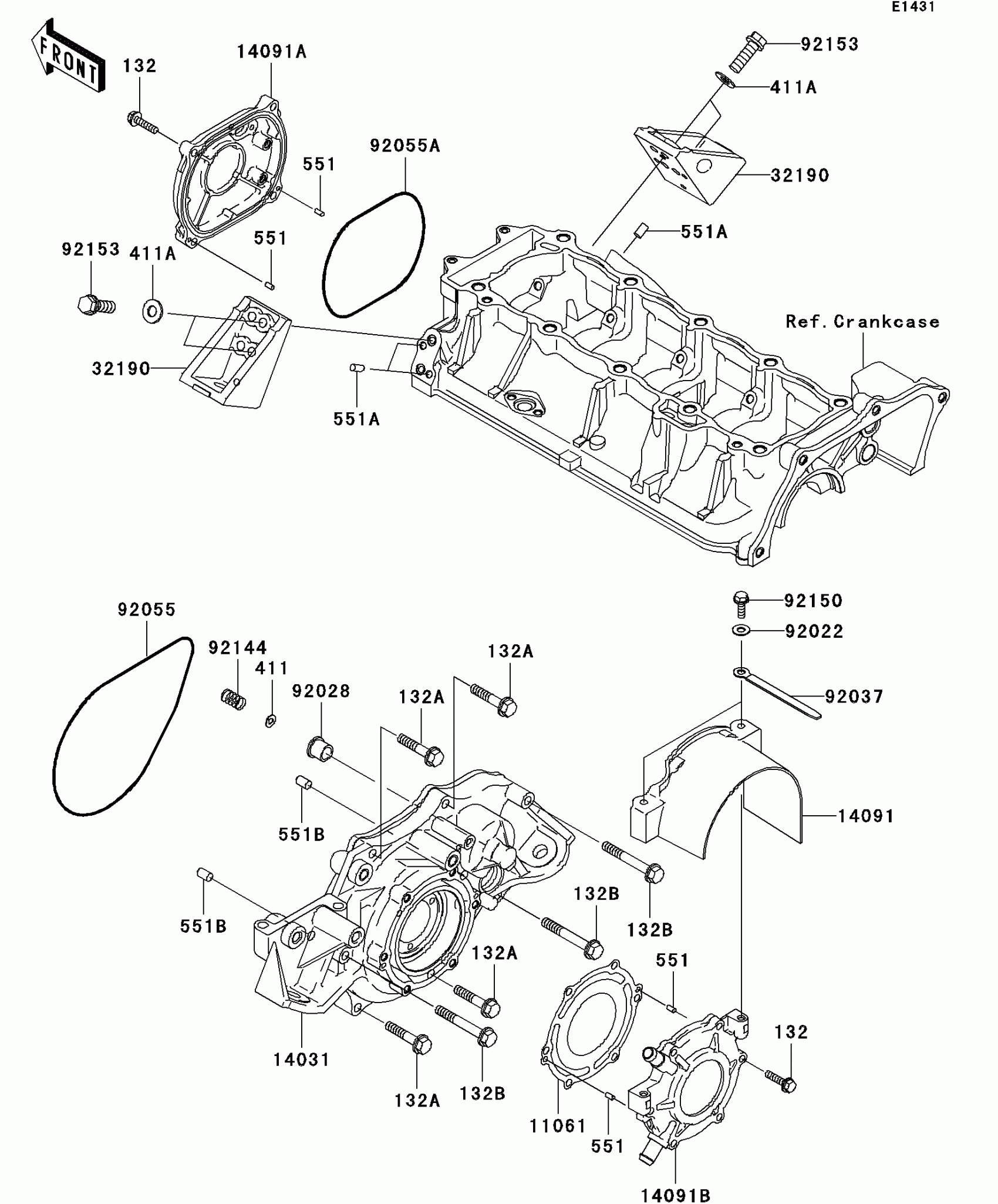

Kawasaki Ultra LX Engine Cover(s) Diagram

Description

Price

11061

GASKET,OUTPUT COVER

11061-3709

Unavailable

14031

COVER-GENERATOR

14031-3737

$228.95

14091

COVER,COUPLING

14091-3749

$22.81

14091A

COVER,PULS

14091-3763

$93.34

14091B

COVER,OUTPUT

14091-3776

Unavailable

32190

BRACKET-ENGINE

32190-3703

$39.81

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92028

BUSHING

92028-3718

$7.18

92037

CLAMP,L=100

92037-3736

$4.85

92055

RING-O,196X3

92055-3761

$11.98

92055A

RING-O,120X3

92055-3762

$8.49

92144

SPRING

92144-3728

$4.10

92150

BOLT,6X18

92150-3729

$3.57

92153

BOLT,FLANGED,8X30

92153-3722

$1.81

132

BOLT-FLANGED-SMALL,6X25

132BD0625

$4.09

132A

BOLT-FLANGED-SMALL,8X40

132BD0840

$4.92

132B

BOLT-FLANGED-SMALL,8X60

132BD0860

$2.18

411

WASHER-PLAIN,5MM

411S0500

$0.78

411A

WASHER-PLAIN,8MM

411S0800

$2.15

551

PIN-DOWEL

551R0408

$4.09

551A

PIN-DOWEL

551R0612

$3.57

551B

PIN-DOWEL

551R0812

$6.04
