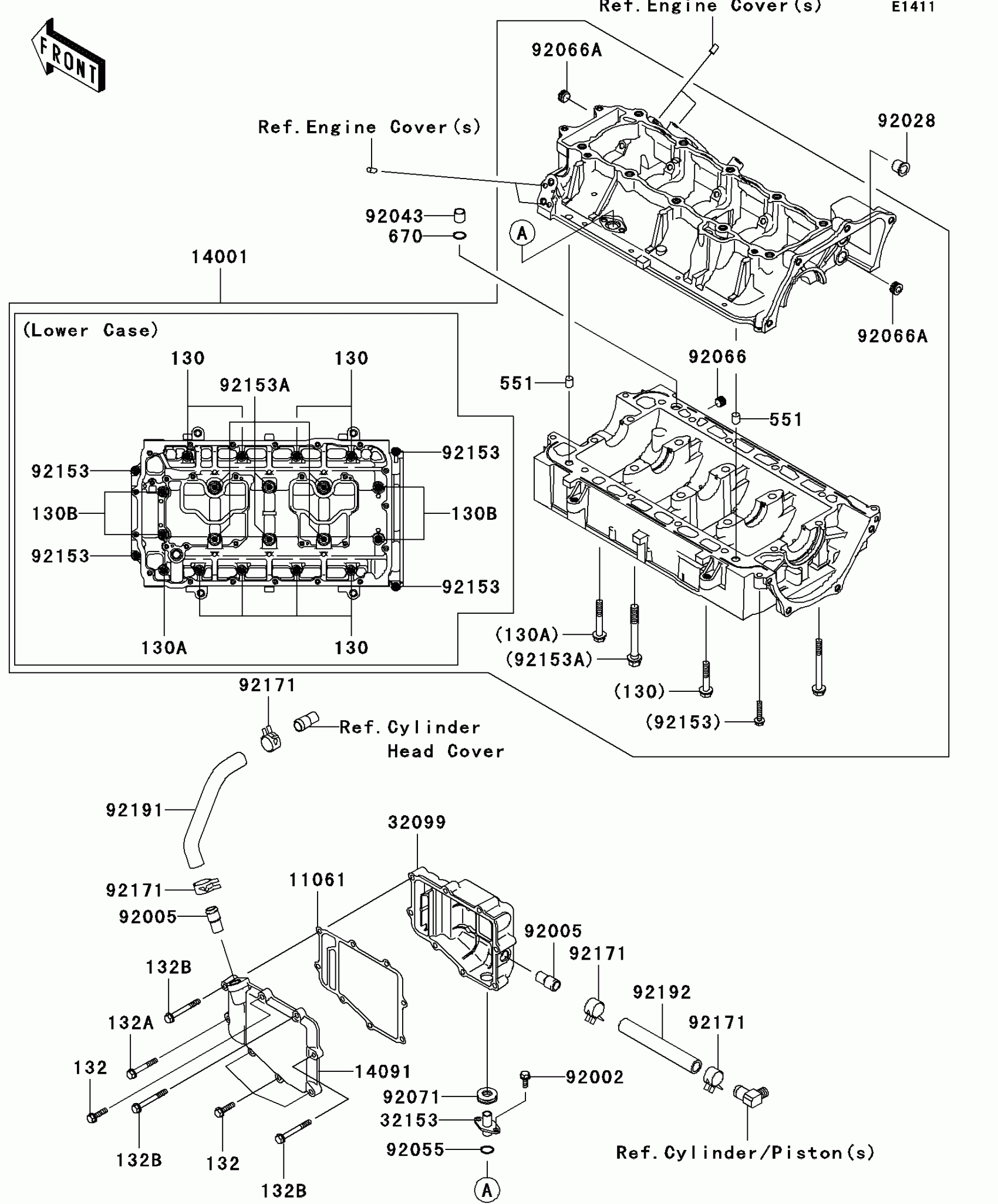

Kawasaki Ultra LX Crankcase Diagram

#

Description
Price

11061

GASKET,BREATHER CASE

11061-3715

$15.41

14001

SET-CRANKCASE

14001-3743

$1,760.85

14091

COVER,BREATHER

14091-3761

$104.41

32099

CASE,BREATHER

32099-3848

$134.29

32153

PIPE,BREATHER

32153-3732

$21.03

92002

BOLT,6X16

92002-3728

$3.24

92005

FITTING

92005-3741

$17.03

92028

BUSHING

92028-3718

$7.18

92043

PIN,11.5X14X14

92043-1279

$3.81

92055

RING-O,12X3

92055-3768

$2.58

92066

PLUG

92066-3778

$10.63

92066A

PLUG

92066-3782

$10.63

92071

GROMMET

92071-3839

$5.27

92153

BOLT,6X30

92153-3707

$2.63

92153A

BOLT,10X85

92153-3711

$11.17

92171

CLAMP,TUBE

92171-3710

Unavailable

92191

TUBE,HEAD COVER-BREATHER

92191-3964

$23.15

92192

TUBE,14X20X140

92192-3723

$13.15

130

BOLT-FLANGED,8X45

130CD0845

$3.04

130A

BOLT-FLANGED,8X55

130CD0855

$4.65

130B

BOLT-FLANGED,8X85

130CD0885

$3.15

132

BOLT-FLANGED-SMALL,6X25

132BD0625

$4.09

132A

BOLT-FLANGED-SMALL,6X45

132BD0645

$4.17

132B

BOLT-FLANGED-SMALL,6X55

132BD0655

$4.46

551

PIN-DOWEL

551R1012

$5.71

670

O RING,14MM

670D2014

$4.18
