Description

Price

11004

GASKET-HEAD

11004-3721

$121.74

11008

HEAD-COMP-CYLINDER

11008-3705

$3,297.10

27012

HOOK,ENGINE,RR

27012-3856

$19.36

32144

PIPE-ASSY

32144-3709

$130.24

32152

PIPE,OIL

32152-1544

$12.66

49002

GUIDE-VALVE

49002-1140

Unavailable

92002

BOLT,6X40

92002-1756

$3.57

92004

STUD,8X30

92004-3743

$3.39

92005

FITTING

92005-3714

$14.12

92022

WASHER,11.5X20.5X1.6

92022-1720

$3.29

92033

RING-SNAP

92033-1247

$2.98

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,14X14

92043-1593

$5.00

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92151

BOLT,11X168

92151-1513

$13.40

92151A

BOLT,SOCKET,7X120

92151-1804

$11.15

120

BOLT-SOCKET,6X30

120CD0630

$4.24

130

BOLT-FLANGED,8X18

130BD0818

$1.90

130A

BOLT-FLANGED,6X50

130CD0650

$3.71

132

BOLT-FLANGED-SMALL,6X16

132BD0616

$3.14

670

O RING,12MM

670B2012

$2.22

670A

O RING,7MM

670D1507

$1.24

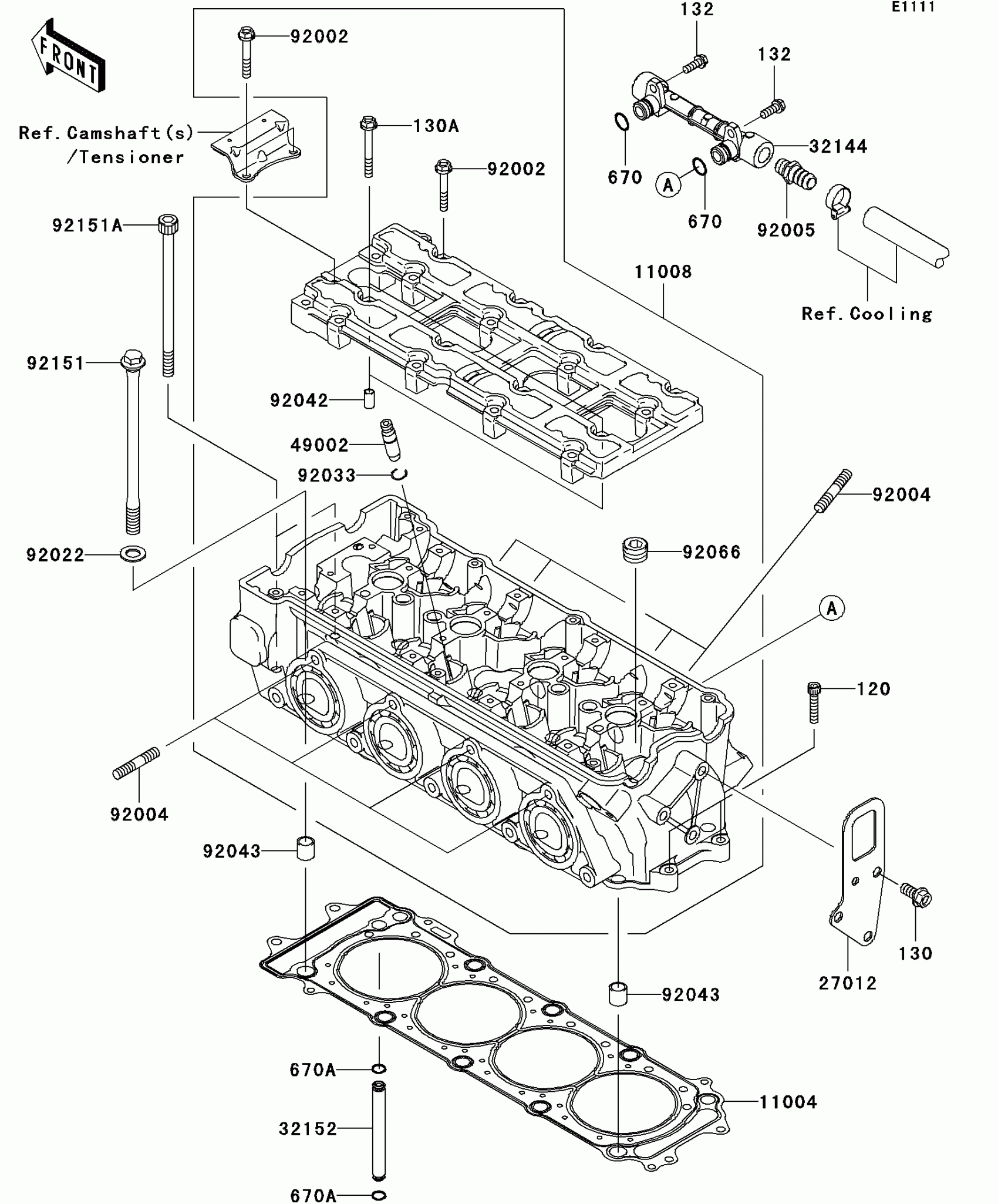

Kawasaki Ultra LX Cylinder Head Diagram
