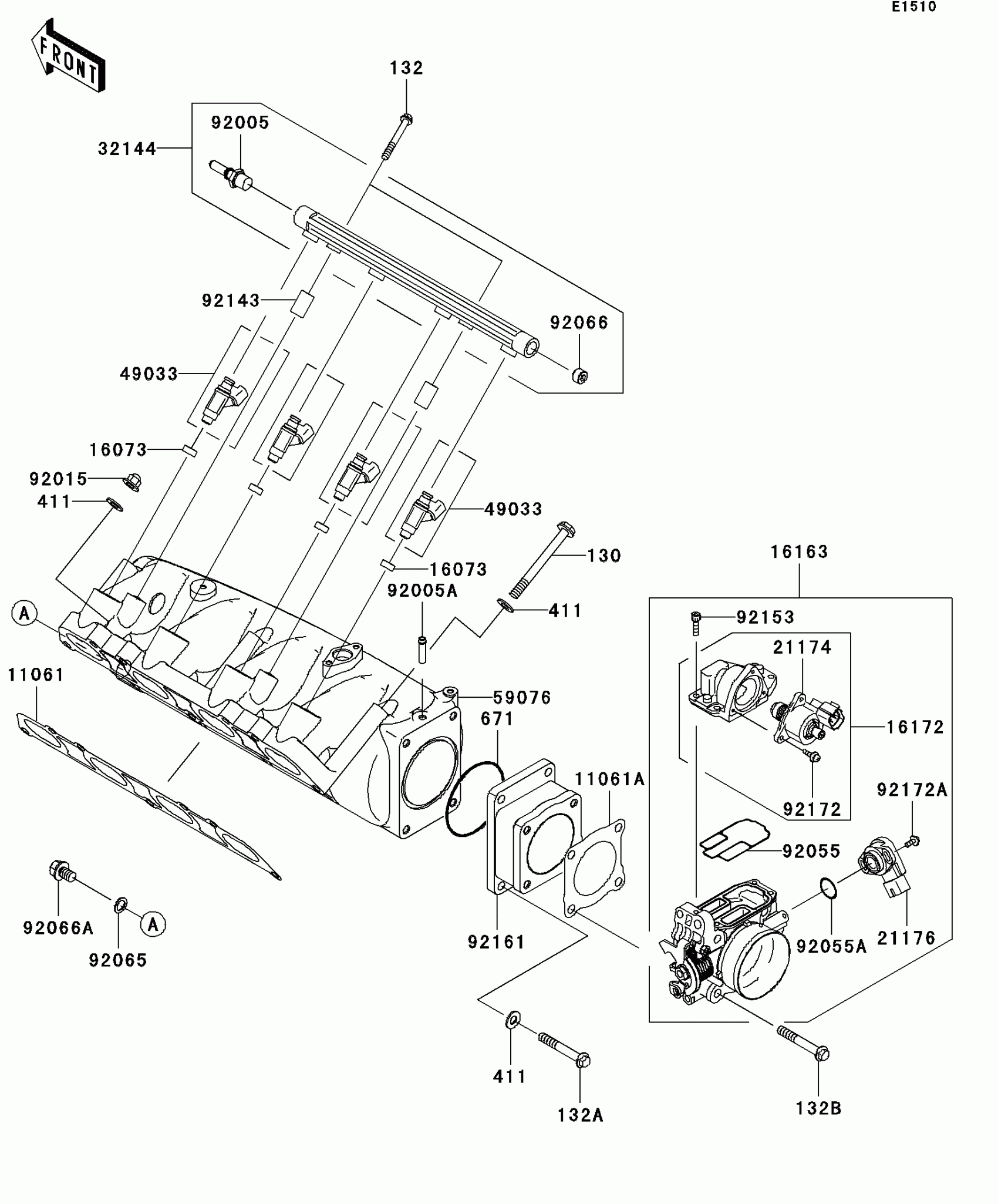

Kawasaki Ultra 250X Throttle Diagram

#

Description
Price

11061

GASKET,MANIFOLD

11061-3716

Unavailable

11061A

GASKET,THROTTLE

11061-3738

Unavailable

16073

INSULATOR

16073-3707

$4.65

16163

THROTTLE-ASSY,AC60

16163-3712

Unavailable

16172

ACTUATOR

16172-3705

Unavailable

21174

MOTOR-ELECTRIC,STM

21174-3706

Unavailable

21176

SENSOR,TPS

21176-3762

$83.52

32144

PIPE-ASSY

32144-3706

$142.49

49033

NOZZLE-INJECTION

49033-3708

$124.39

59076

MANIFOLD-INTAKE

59076-3735

$1,133.10

92005

FITTING

92005-3754

$39.25

92005A

FITTING

92005-3761

$14.32

92015

NUT,CAP,8MM

92015-1371

$3.81

92055

RING-O

92055-3773

Unavailable

92055A

RING-O

92055-3774

$12.79

92065

GASKET,10.5X16X1

92065-058

$3.03

92066

PLUG

92066-3778

$10.63

92066A

PLUG

92066-3781

$7.76

92143

COLLAR

92143-3731

$5.00

92153

BOLT

92153-3723

$3.51

92161

DAMPER

92161-3771

$5.51

92172

SCREW

92172-3710

$3.51

92172A

SCREW

92172-3711

$3.51

130

BOLT-FLANGED,8X120

130CD08120

$3.35

132

BOLT-FLANGED-SMALL,6X50

132BD0650

$4.24

132A

BOLT-FLANGED-SMALL,8X30

132BD0830

$2.36

132B

BOLT-FLANGED-SMALL,8X55

132BD0855

$2.27

411

WASHER-PLAIN,8MM

411S0800

$2.15

671

O RING,70MM

671B2570

$7.49
