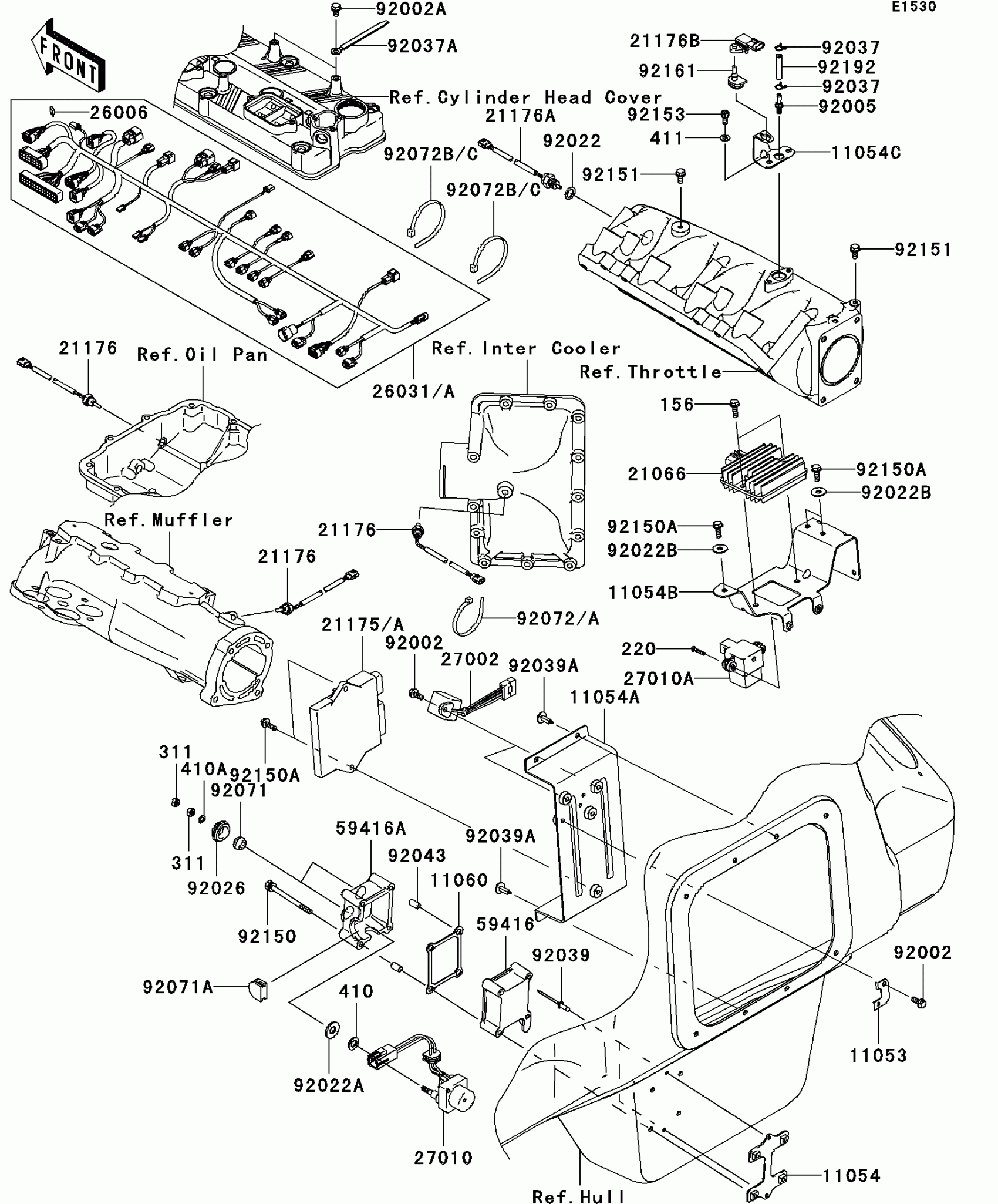

Kawasaki Ultra 250X Fuel Injection Diagram

#

Description
Price

11053

BRACKET,FUSE

11053-3724

$7.76

11054

BRACKET,SWITCH

11054-3742

Unavailable

11054A

BRACKET,ECU&RELAY

11054-3743

$12.75

11054B

BRACKET,REGULATOR&VDS

11054-3749

$108.71

11054C

BRACKET

11054-3750

$16.97

11060

GASKET

11060-3709

$12.76

21066

REGULATOR-VOLTAGE

21066-3718

Unavailable

21175A

CONTROL UNIT-ELECTRONIC

21175-3738

Unavailable

21176

SENSOR,TEMP

21176-3758

$131.39

21176A

SENSOR,AIR TEMPERATURE

21176-3767

$201.70

21176B

SENSOR,BOOST

21176-3768

$212.32

26006

FUSE,MINI BLADE,20A,YELLOW

26006-3704

$3.98

26031A

HARNESS,ENGINE

26031-3725

$670.68

27002

RELAY-ASSY

27002-3703

$45.41

27010

SWITCH

27010-3777

$156.53

27010A

SWITCH,VDS

27010-3785

$264.90

59416

CASE-ELECTRIC

59416-3710

$61.47

59416A

CASE-ELECTRIC

59416-3711

$68.39

92002

BOLT,6X16

92002-3728

$3.24

92002A

BOLT,6X12

92002-3763

$3.57

92005

FITTING

92005-0056

$9.86

92022

WASHER,12X18X1.0

92022-1211

$3.66

92022A

WASHER

92022-3035

$2.69

92022B

WASHER,6.5X20X1.5

92022-3710

$2.76

92026

SPACER

92026-3703

$3.57

92037

CLAMP,TUBE

92037-3025

$4.71

92037A

CLAMP,L=100

92037-3736

$4.85

92039

RIVET

92039-3714

$0.79

92039A

RIVET

92039-3785

$3.54

92043

PIN

92043-3715

$5.61

92071

GROMMET

92071-3004

$3.05

92071A

GROMMET

92071-3837

$2.61

92072

BAND,L=188.85

92072-0105

$1.30

92072C

BAND,L=372.24

92072-3883

$1.39

92150

BOLT,6X80

92150-3711

$12.42

92150A

BOLT,6X18

92150-3729

$3.57

92151

BOLT,6X14

92151-3788

$1.68

92153

BOLT,SOCKET,6X12

92153-1525

$1.61

92161

DAMPER

92161-0041

$4.59

92192

TUBE,3.5X8X38.5

92192-3823

$2.24

156

BOLT-WP,6X20

156R0620

$2.76

220

SCREW-PAN-CROS,4X20

220R0420

$1.73

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.44

410A

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

411

WASHER-PLAIN,6MM

411S0600

$1.49
