2017 Suzuki UH200AL7 Rear Wheel Diagram

← All diagrams

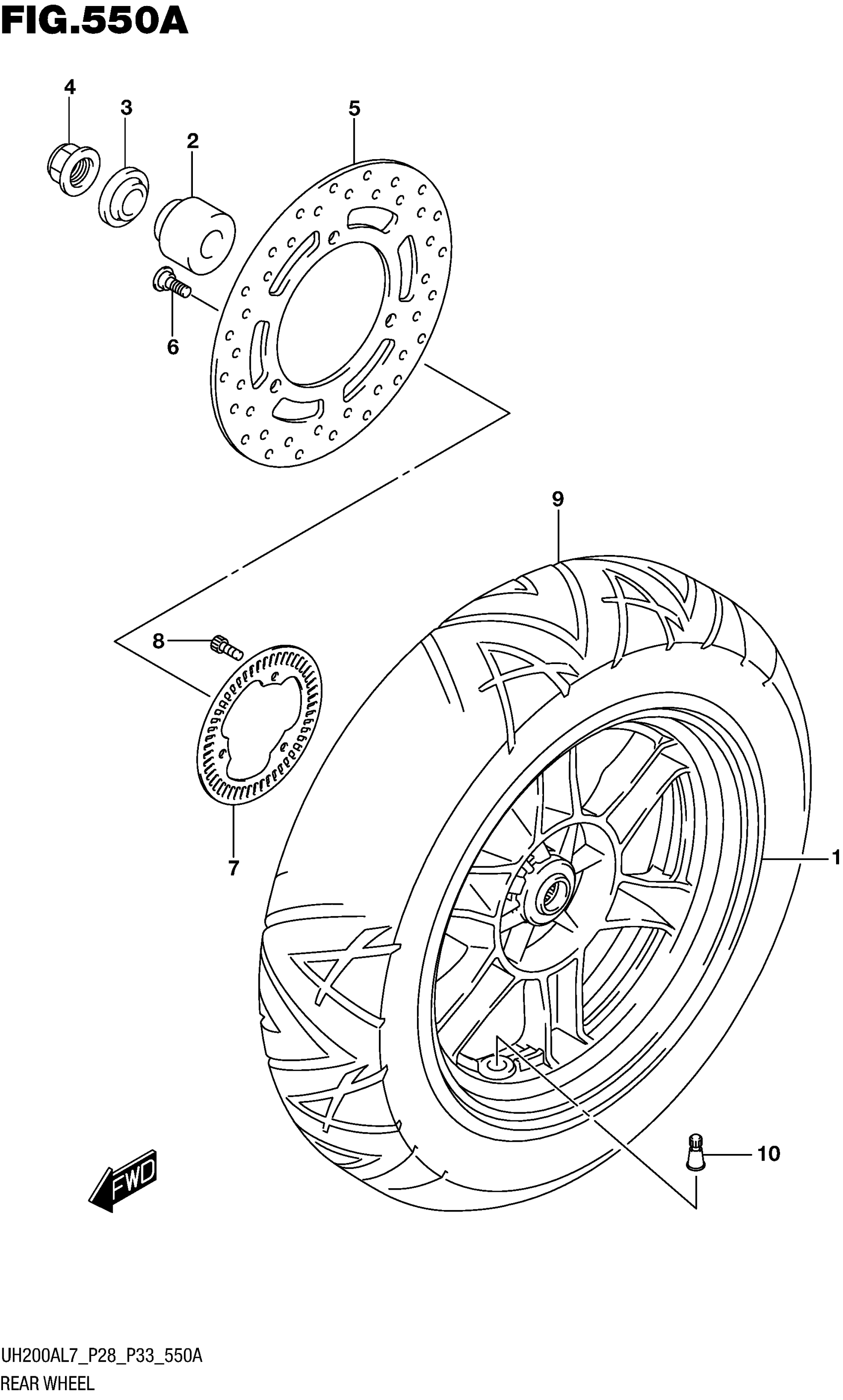

Find the part on the Rear Wheel diagram for your 2017 Suzuki UH200AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki UH200AL7 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

WHEEL, REAR (12XMT3.00)

64150-12J00-019

1
Out of stock

1-1

(BLACK)

64150-12J00-019

1
Out of stock

1-2

WHEEL, REAR (12XMT3.00) | JINFEI

64150-12J10-019

—
Out of stock

1-2

(BLACK)

64150-12J10-019

—
Out of stock

2

SPACER,REAR AXLE INNER

64741-03H01

1
Out of stock

3

SPACER, REAR AXLE OUTER

64751-03H00

1
Out of stock

4

NUT

08319-3116A

1
Out of stock

5

DISC, REAR BRAKE

59211-12J00

1
Out of stock

6

BOLT

59218-09G10

3
Out of stock

7

RING SPEED SENSOR (50T)

54162-44H00

1
Out of stock

8

BOLT

07130-0512A

3
Out of stock

10

VALVE ASSY,WHEEL RIM (TR412)

43130-24A60

1
Out of stock
