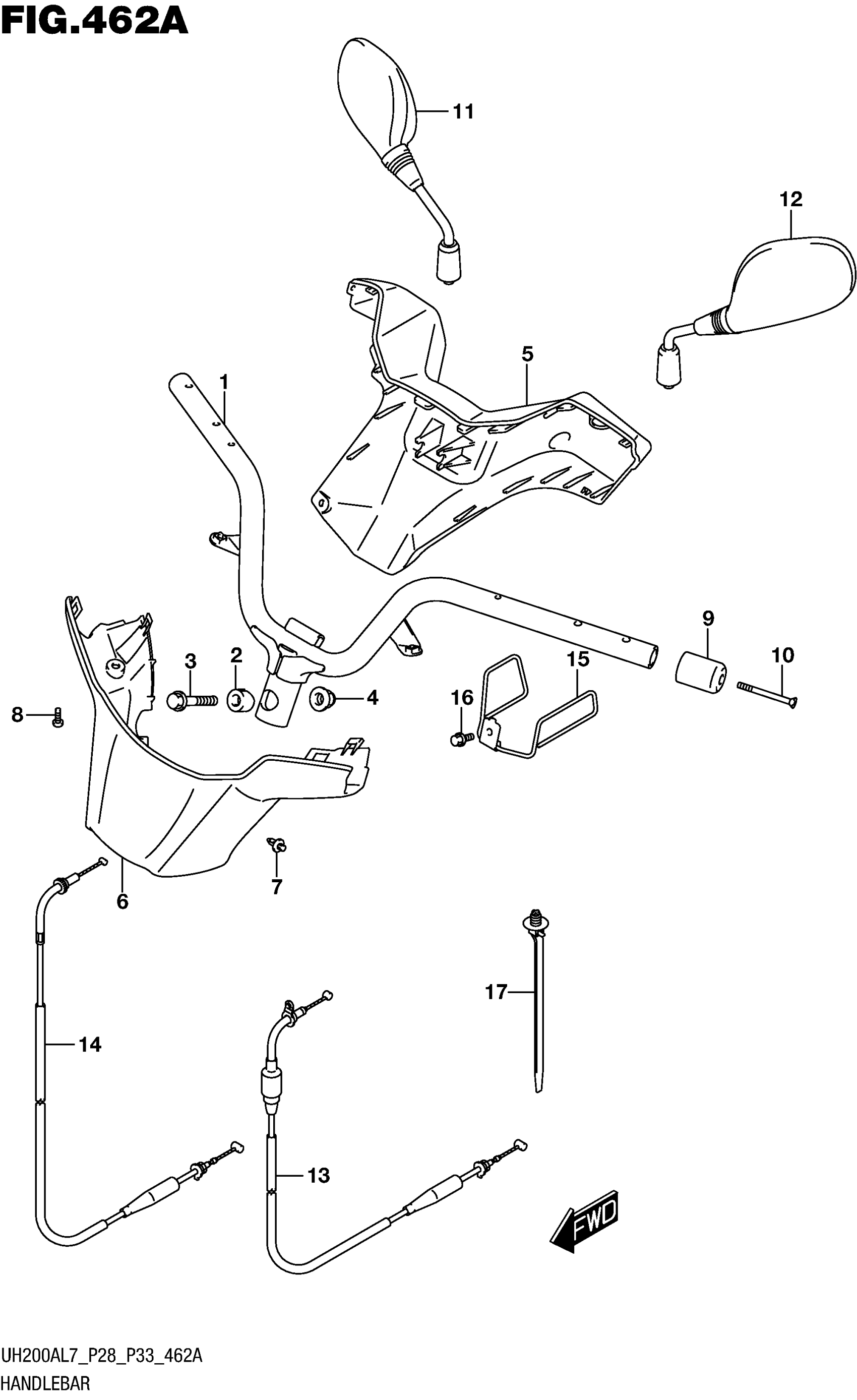

Suzuki UH200AL7 (2017) HANDLEBAR (UH200AL7 P28) Diagram

#

Description
Price

1

HANDLEBAR

56110-12J10

$138.65

2

STOPPER,HANDLEBAR

51358-09G00

Unavailable

3

BOLT (10X48)

09103-10126

$4.07

4

NUT

08319-3110A

$2.73

5

COVER,HANDLE UPR (BLACK)

56311-12JB0-291

$72.83

6

COVER,HANDLE LWR (BLACK)

56321-12JB0-291

$61.57

7

CLIP (BLACK)

09409-06314-5PK

$2.80

8

SCREW

02142-0512A

$1.37

9

BALANCER

56278-12J01

$17.20

10

SCREW

02122-0660B

$2.80

11

MIRROR ASSY,RR VIEW,R This part replaces 56500-12J30.

56500-12J31

$52.33

12

MIRROR ASSY,RR VIEW,L This part replaces 56600-12J30.

56600-12J31

$48.77

13

CABLE ASSY, THROTTLE NO.1

58300-12J20

$56.18

14

CABLE ASSY, THROTTLE NO.2

58300-12J30

$56.18

15

GUIDE, THROTTLE CABLE

58620-03H10

Unavailable

16

BOLT

01550-0612A

$1.97

17

CLAMP (L:154)

09407-17403

$4.63
