2017 Suzuki UH200AL7 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2017 Suzuki UH200AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

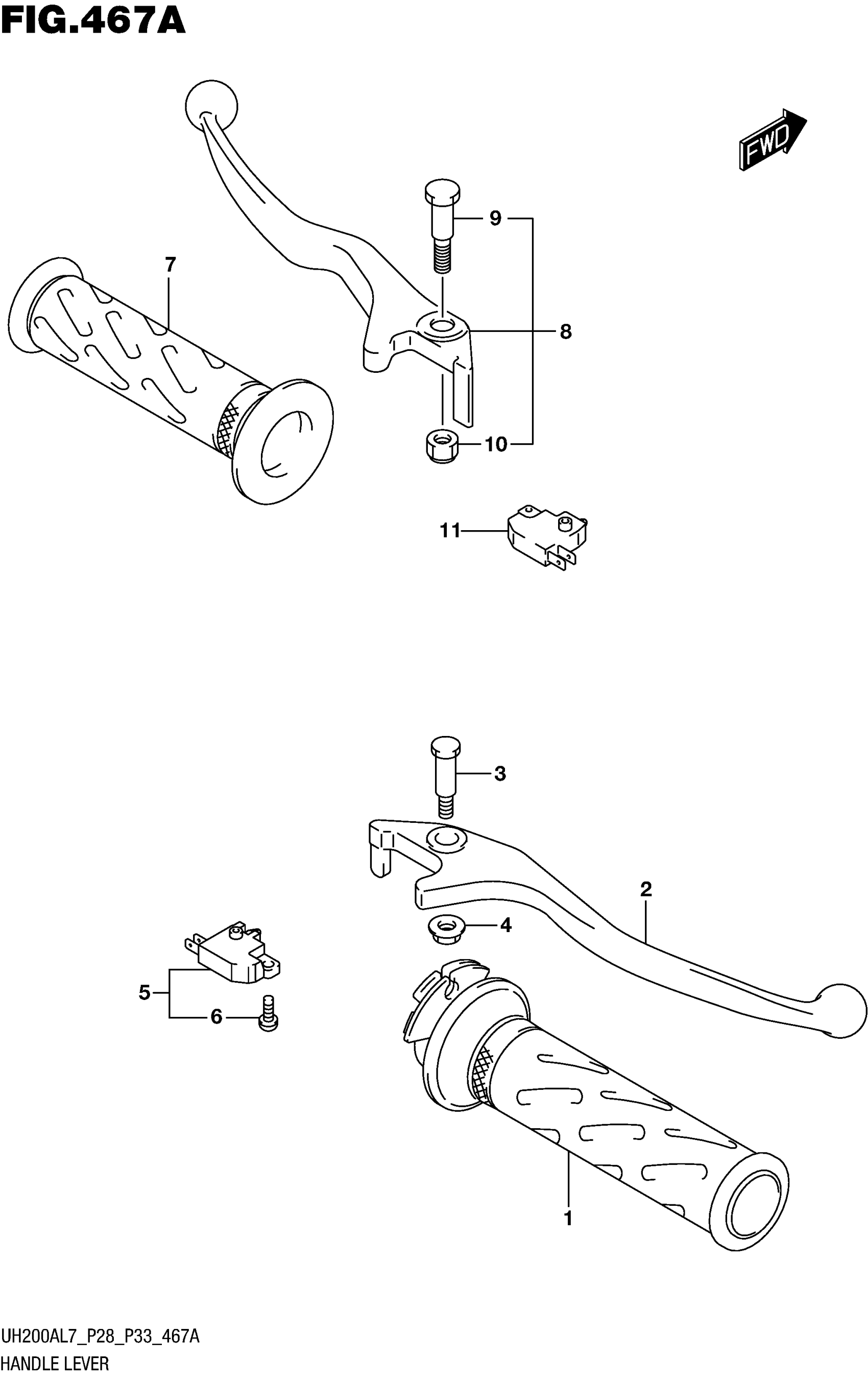

2017 Suzuki UH200AL7 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP,THROTTLE (BLACK)

57110-29G20-291

1
Out of stock

2

LEVER, FRONT BRAKE

57421-14F00

1
Out of stock

3

BOLT,BRAKE LEVER PIVOT

57431-04F00

1
Out of stock

4

NUT,LEVER PIVOT

57433-09F00

1
Out of stock

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

1
Out of stock

6

.SCREW

57465-17C00

1
Out of stock

7

GRIP,L (BLACK)

57211-22D60-291

1
Out of stock

8

LEVER ASSY,RR BRAKE

57500-14F00

1
Out of stock

9

BOLT,BRAKE LEVER PIVOT

57431-04F00

1
Out of stock

10

.NUT

08319-2106B

1
Out of stock

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14J01.

57560-14J02

1
Out of stock
